873.0
/

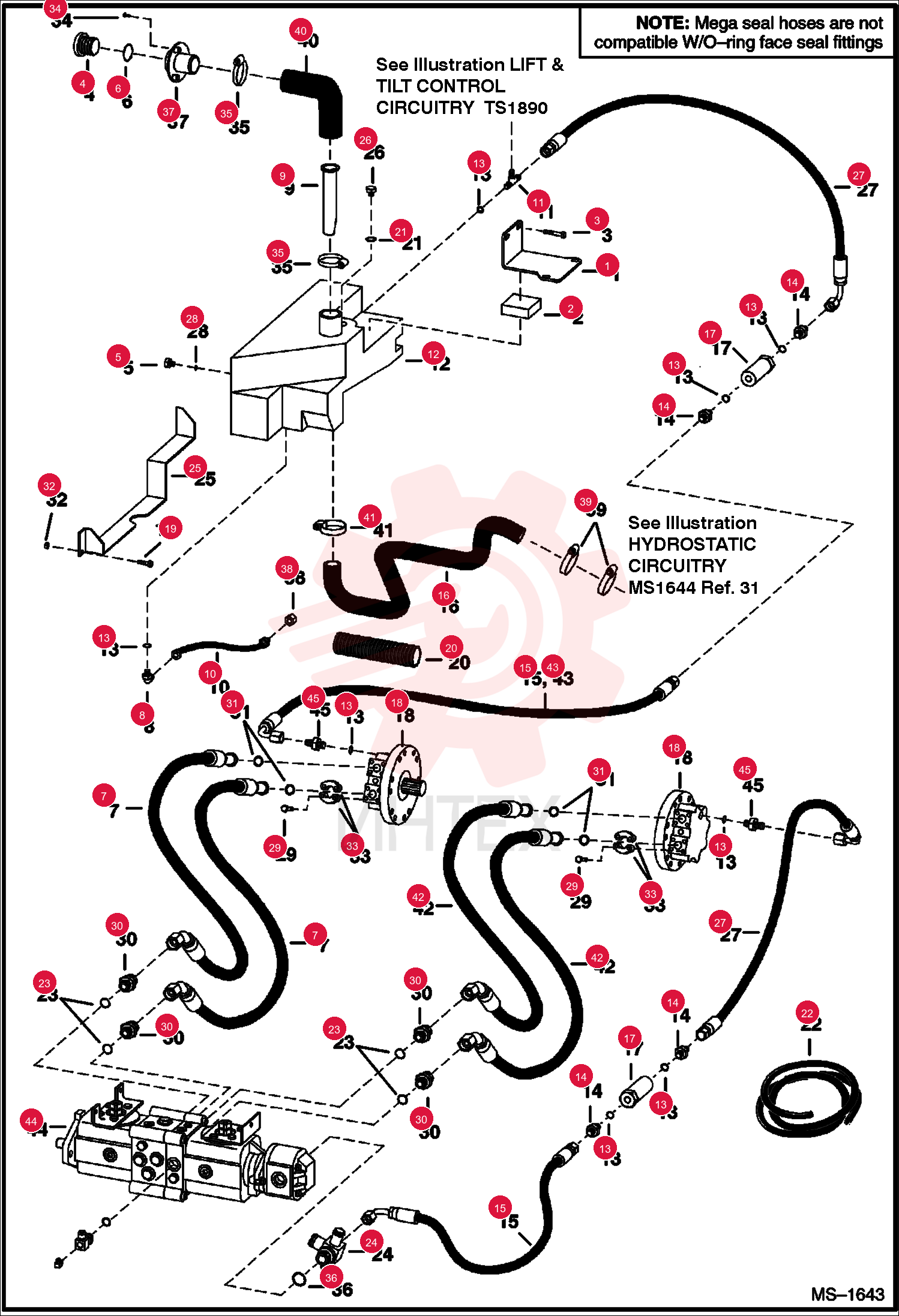

MOUNT, BRACKET 6715079 (1)

MOUNT, BRACKET 6715079 (1)

MOUNT, BRACKET 6715079 (1)

1 6715079

  • 6715079 - MOUNT
  • BRACKET

2 6716449

  • 6716449 - BUMPER

3 84G3716

  • 84G3716 - SCREW THD ROLLING TT

4 6727475

  • 6727475 - CAP HYDRAULIC
  • breather - Also Order Ref. 6 - Was 6577785

5 6665915

  • 6665915 - GAUGE
  • sight - W/Ref. 28

6 6700631

  • 6700631 - GASKET CAP TANK HYDR

7 6673940

  • 6673940 - HOSE
  • mega seal - SEE NOTE

8 18KB0606

  • 18KB0606 - FITTING
  • HYD ELBOW
  • W/Ref. 13 - tapered boss face - Was 18KV00005B

9 97K6

  • 97K6 - O-RING
  • flared end

10 7120881

  • 7120881 - SCREEN
  • FILLER
  • Was 6569219

11 6708560

  • 6708560 - HOSE

12 21KB0606

  • 21KB0606 - FITTING
  • HYD TEE
  • W/Ref. 13 - tapered boss face - Was 21KV00005B

13 97K6

  • 97K6 - O-RING
  • flared end

14 99K6

  • 99K6 - O-RING
  • tapered boss face

15 97K6

  • 97K6 - O-RING
  • flared end

16 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR
  • W/Ref. 13 - flat boss face

17 6717214

  • 6717214 - ASSY
  • HOSE

18 6717214

  • 6717214 - ASSY
  • HOSE

19 6713977

  • 6713977 - HOSE

20 6661022

  • 6661022 - FILTER
  • OIL HYD IN-LINE
  • - 90 micron

21 35C512

  • 35C512 - SCREW FLGD HEX CAP

22 79K16

  • 79K16 - O RING 10

23 6705749

  • 6705749 - TUBE
  • POLY BULK
  • bulk - sold per foot - polypropylene

24 79K12

  • 79K12 - O RING 10

25 6716468

  • 6716468 - TEE
  • W/Ref. 36

26 97K16

  • 97K16 - O-RING
  • flared end

27 6707921

  • 6707921 - BRACKET

28 47K10

  • 47K10 - PLUG
  • W/Ref. 21 - for flushing hole in tank

29 6728079

  • 6728079 - HOSE
  • Was 6717332

30 99K6

  • 99K6 - O-RING
  • flat boss face

31 17C728

  • 17C728 - BOLT

32 15KB1612

  • 15KB1612 - FITTING
  • HYD CONNECTOR
  • W/Ref. 23

33 55K219

  • 55K219 - SEAL
  • O-RING
  • Was 58K000219B

34 61D5

  • 61D5 - NUT HEX FINISHED GR5

35 20J16

  • 20J16 - FLANGE

36 6706517

  • 6706517 - SCREW 10

37 42HL250

  • 42HL250 - CLAMP
  • Was 6513595

38 99K16

  • 99K16 - O-RING
  • tapered boss face

39 36K5

  • 36K5 - CAP

40 5HM42

  • 5HM42 - HOSE CLAMP
  • constant tension

41 6706445

  • 6706445 - HOSE

42 6672281

  • 6672281 - CLAMP
  • constant tension

43 6673939

  • 6673939 - HOSE
  • mega seal - SEE NOTE

44 6717333

  • 6717333 - HOSE

45 6717306

  • 6717306 - ADAPTER
  • W/Ref. 13 - tapered boss face

46 97K6

  • 97K6 - O-RING
  • flared end
