Bobcat
/
883.0
/

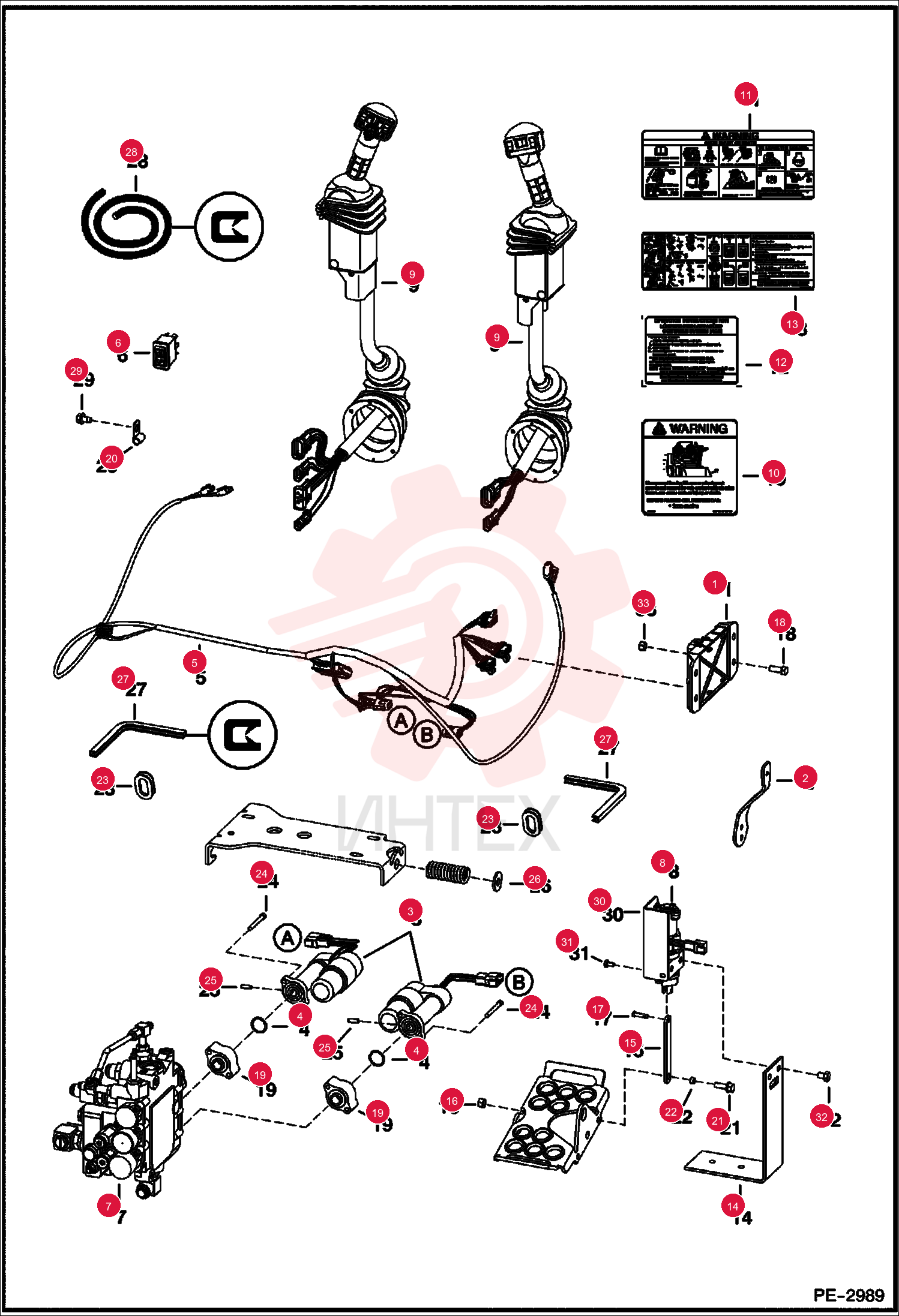

CONTROLLER, ACS 6680410

CONTROLLER, ACS 6680410

CONTROLLER, ACS 6680410

1 6680410

  • 6680410 - CONTROLLER
  • ACS
  • plastic - W/ 3-connector plug - Was 6676337

2 6717393

  • 6717393 - LEVER
  • throttle

3 7101672

  • 7101672 - ACTUATOR
  • Use W/Ref. 4 (58K120 O-ring) - Use W/Ref. 19 (7101705 adapter)

4 58K120

  • 58K120 - O-RING
  • Use W/Ref. 3 (NLA/ 6678775 actuator & 7101672 actuator)

5 6686220

  • 6686220 - O-RING
  • Use W/Ref. 3 (NLA/ 7101329 actuator)

6 6733292

  • 6733292 - HARNESS
  • ACS
  • ACS - Was 6729023

7 6676537

  • 6676537 - SWITCH

8 6684915

  • 6684915 - LEVER
  • ACS RH
  • tilt - RH - Was 6680424

9 6684916

  • 6684916 - LEVER
  • ACS LH
  • lift - LH - Was 6676497

10 6718706

  • 6718706 - DECAL
  • WARNING
  • raising cab

11 6728539

  • 6728539 - DECAL
  • WARNING

12 6727926

  • 6727926 - DECAL
  • OPERATION
  • hand & foot controls

13 6727926

  • 6727926 - DECAL
  • OPERATION
  • hand & foot controls - Was 6727941

14 7126869

  • 7126869 - BRACKET
  • Was 6726573

15 6726681

  • 6726681 - LINK
  • AFC POD

16 95D5

  • 95D5 - NUT

17 6727496

  • 6727496 - PIN

18 17C616

  • 17C616 - BOLT 5

19 6725128

  • 6725128 - ADAPTER
  • actuator - W/ O-ring groove - Use W/Ref. 3 (NLA/ 6678775 actuator)

20 7101705

  • 7101705 - ADAPTER
  • ACTUATOR
  • W/O O-ring groove - Use W/Ref. 3 (NLA/ 7103129 actuator & 7101672 actuator)

21 30H62

  • 30H62 - CLIP

22 35C514

  • 35C514 - SCREW FLGD HEX CAP
  • Was 17C000514B

23 6729467

  • 6729467 - SPACER
  • COLLAR

24 6714726

  • 6714726 - PLUG

25 69G436

  • 69G436 - BOLT

26 7108236

  • 7108236 - PIN
  • Was 6718506

27 25E22

  • 25E22 - WASHER

28 6654139

  • 6654139 - MOULDING BULK/FT
  • sold per foot

29 84G3710

  • 84G3710 - SCREW

30 6680479

  • 6680479 - SHIELD
  • LH - Was 6727284

31 6680478

  • 6680478 - SHIELD
  • RH - Was 6727231

32 43C408

  • 43C408 - BOLT

33 17C608

  • 17C608 - BOLT

34 95D6

  • 95D6 - NUT HEXAGON
