Bobcat
/
883.0
/

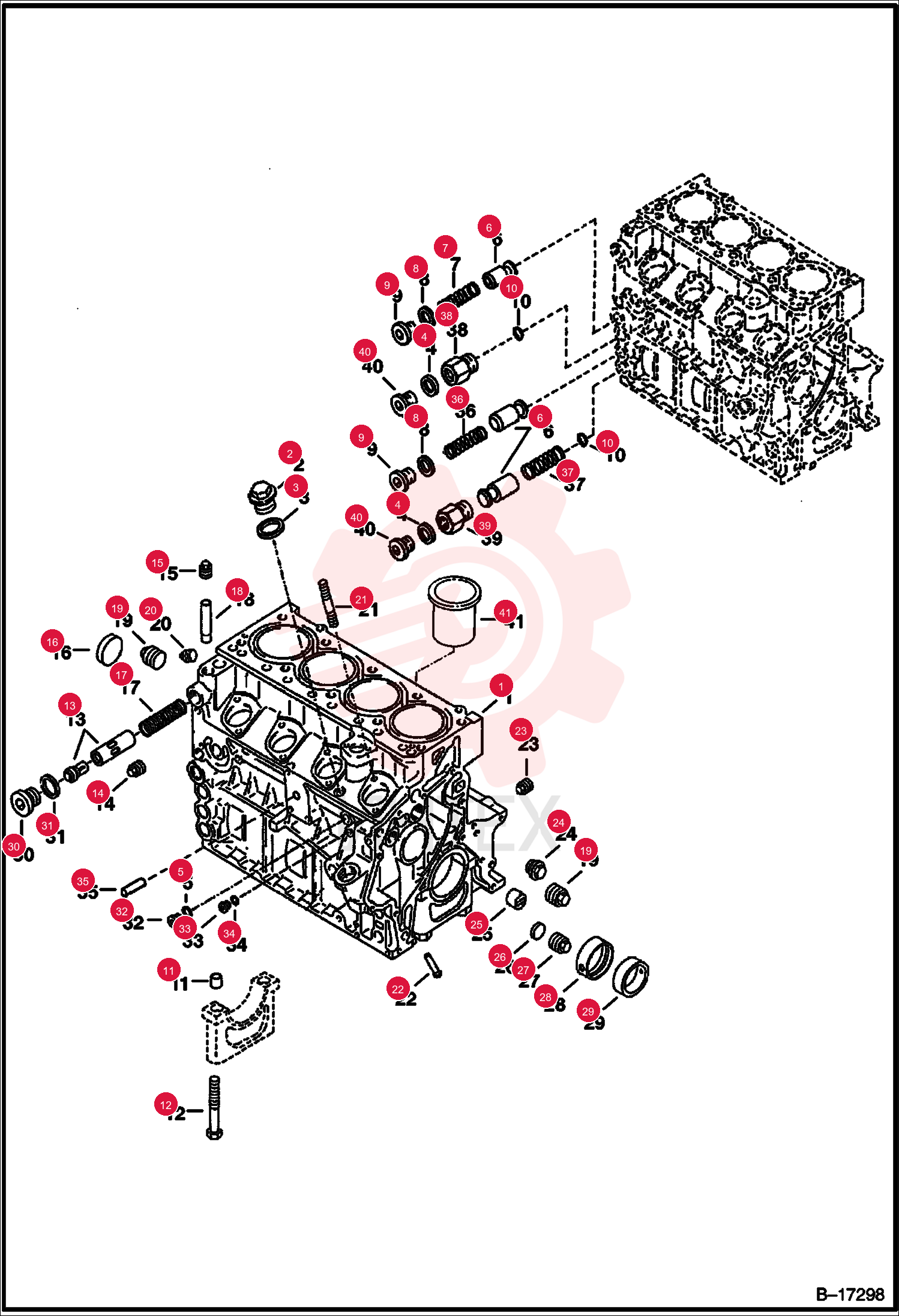

PLUG 6666690

PLUG 6666690

PLUG 6666690

1 6666690

  • 6666690 - PLUG

2 6666393

  • 6666393 - SEAL RING
  • brass - 10mm x 16mm

3 6668887

  • 6668887 - O-RING
  • brass - 18mm x 22mm

4 6666394

  • 6666394 - WASHER
  • brass - 18mm x 24mm

5 6666510

  • 6666510 - VALVE

6 6668941

  • 6668941 - SPRING
  • yellow - .047" (1.2mm) dia. & 3.15" (80mm) long

7 6666395

  • 6666395 - SEAL RING

8 6666387

  • 6666387 - PLUG

9 6666722

  • 6666722 - BUSHING

10 6666719

  • 6666719 - BOLT

11 6668945

  • 6668945 - THERMOSTAT
  • engine oil temp. - rated @ 199.4 degrees F (93 degrees C)

12 6666703

  • 6666703 - PLUG

13 6666702

  • 6666702 - PLUG

14 6666716

  • 6666716 - COVER
  • soft

15 6668941

  • 6668941 - SPRING

16 6666741

  • 6666741 - VALVE

17 6672873

  • 6672873 - PLUG

18 6672874

  • 6672874 - PLUG

19 6688194

  • 6688194 - STUD
  • Was 6666709

20 6666746

  • 6666746 - NOZZLE
  • piston cooling

21 6672872

  • 6672872 - PLUG

22 6666751

  • 6666751 - PLUG

23 6666718

  • 6666718 - SLEEVE
  • guide

24 6666697

  • 6666697 - COVER
  • soft

25 6672878

  • 6672878 - PLUG

26 6666738

  • 6666738 - BUSHING
  • wrapped bushing

27 6666737

  • 6666737 - BUSHING
  • wrapped bushing

28 6668946

  • 6668946 - PLUG
  • Was 6672877

29 6666395

  • 6666395 - SEAL RING

30 6666400

  • 6666400 - PLUG
  • Was 6666689

31 6666690

  • 6666690 - PLUG

32 6666699

  • 6666699 - O-RING
  • brass - 10 mm x 15 mm

33 6668905

  • 6668905 - PIN

34 6668903

  • 6668903 - SPRING
  • red - .055" (1
  • 4mm) dia wire & 3.07" (78mm) long

35 6668902

  • 6668902 - SPRING
  • blue - .039" (1mm) dia wire & 2.44" (62mm) long

36 6668900

  • 6668900 - ADAPTER
  • W/Ref. 10

37 6668901

  • 6668901 - ADAPTER
  • W/Ref. 10

38 6666400

  • 6666400 - PLUG

39 6672879

  • 6672879 - LINER
  • CYL
  • - cylinder
