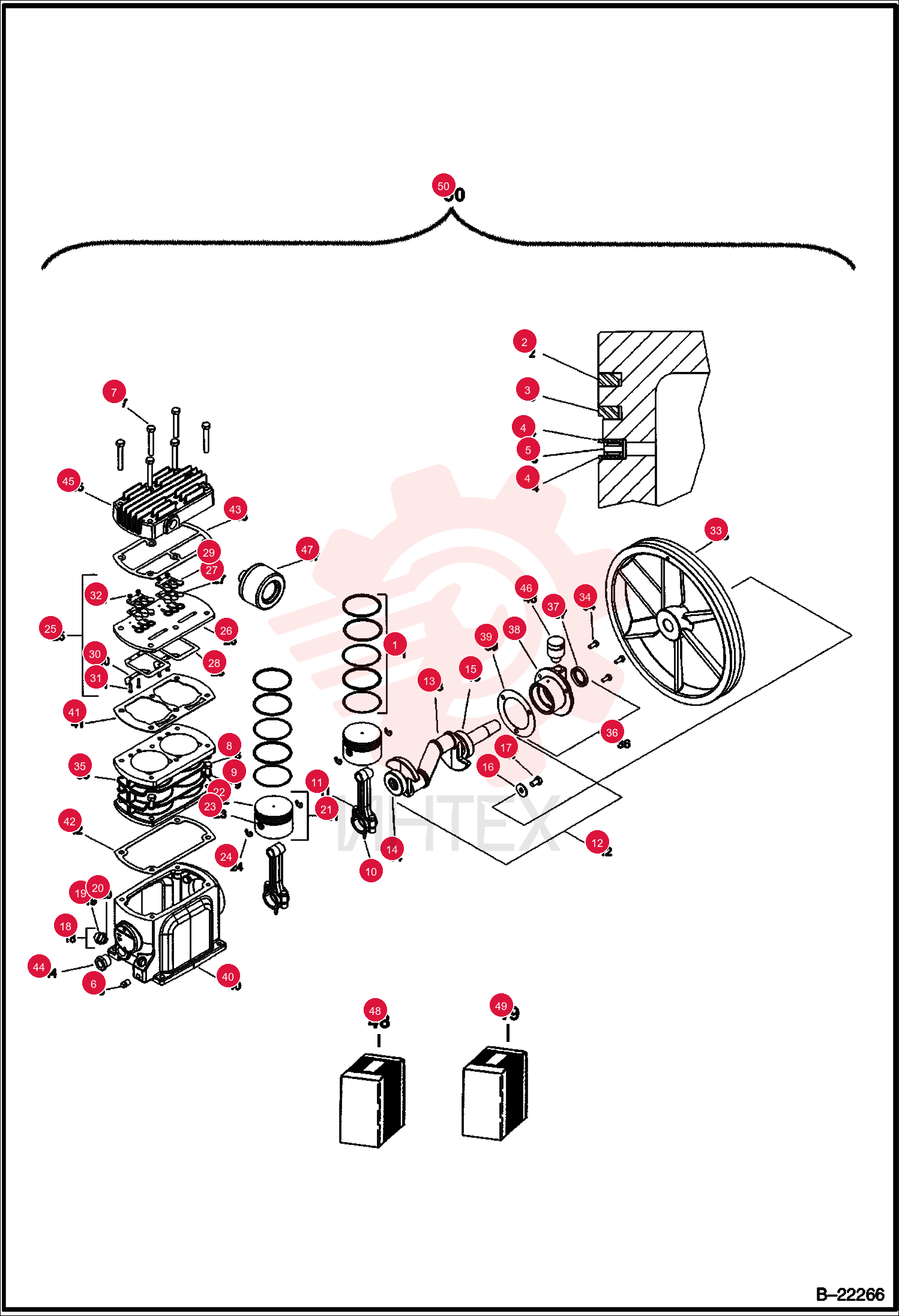

PISTON RING SET IR32307092 (2)
1 IR32307092
- IR32307092 - PISTON RING SET
- W/Ref. 2-5
2 IR95033585
- IR95033585 - PLUG
- oil drain
3 IR96715784
- IR96715784 - SCREW
4 IR96716113
- IR96716113 - SCREW
5 IR96728316
- IR96728316 - WASHER
6 IR97330427
- IR97330427 - ROD
- connecting - W/Ref. 11
7 IR96702246
- IR96702246 - SCREW
8 IR97338081
- IR97338081 - CRANKSHAFT
- assy - W/Ref. 13-17
9 IR54375977
- IR54375977 - WASHER
10 IR54440045
- IR54440045 - SCREW
11 IR49812050
- IR49812050 - OIL FILL ASSY
- W/Ref. 19 & 20
12 IR95024394
- IR95024394 - O-RING
- oil fill plug
13 IR97330468
- IR97330468 - PISTON AND PIN
- assy - W/Ref. 22-24
14 IR97330484
- IR97330484 - VALVE ASSY
- Ref. 26-32
15 IR97330492
- IR97330492 - BELT WHEEL
16 IR97330500
- IR97330500 - SCREW
17 IR97330625
- IR97330625 - CYLINDER
18 IR97338073
- IR97338073 - END COVER ASSY
- W/Ref. 37-39
19 IR32204521
- IR32204521 - SEAL
- shaft
20 IR97331227
- IR97331227 - GASKET
- end cover
21 IR97330641
- IR97330641 - FRAME
- compressor
22 IR97330658
- IR97330658 - GASKET
- valve plate
23 IR97330666
- IR97330666 - GASKET
- cylinder
24 IR54571609
- IR54571609 - GASKET
- head
25 IR97330682
- IR97330682 - SIGHT GLASS
26 IR97330690
- IR97330690 - HEAD
27 IR70243936
- IR70243936 - VENT ASSY
28 IR70243399
- IR70243399 - FILTER
- inlet
29 IR70243712
- IR70243712 - FILTER
- AIR
30 IR97338107
- IR97338107 - VALVE/GASKET KIT
- valve - Ref. 25
- 41 & 43
31 IR97338115
- IR97338115 - RING/GASKET KIT
- ring - Ref. 1 & 42
32 IR18002378
- IR18002378 - PUMP
- compressor - W/Ref. 1-47 - Was IR97330419
