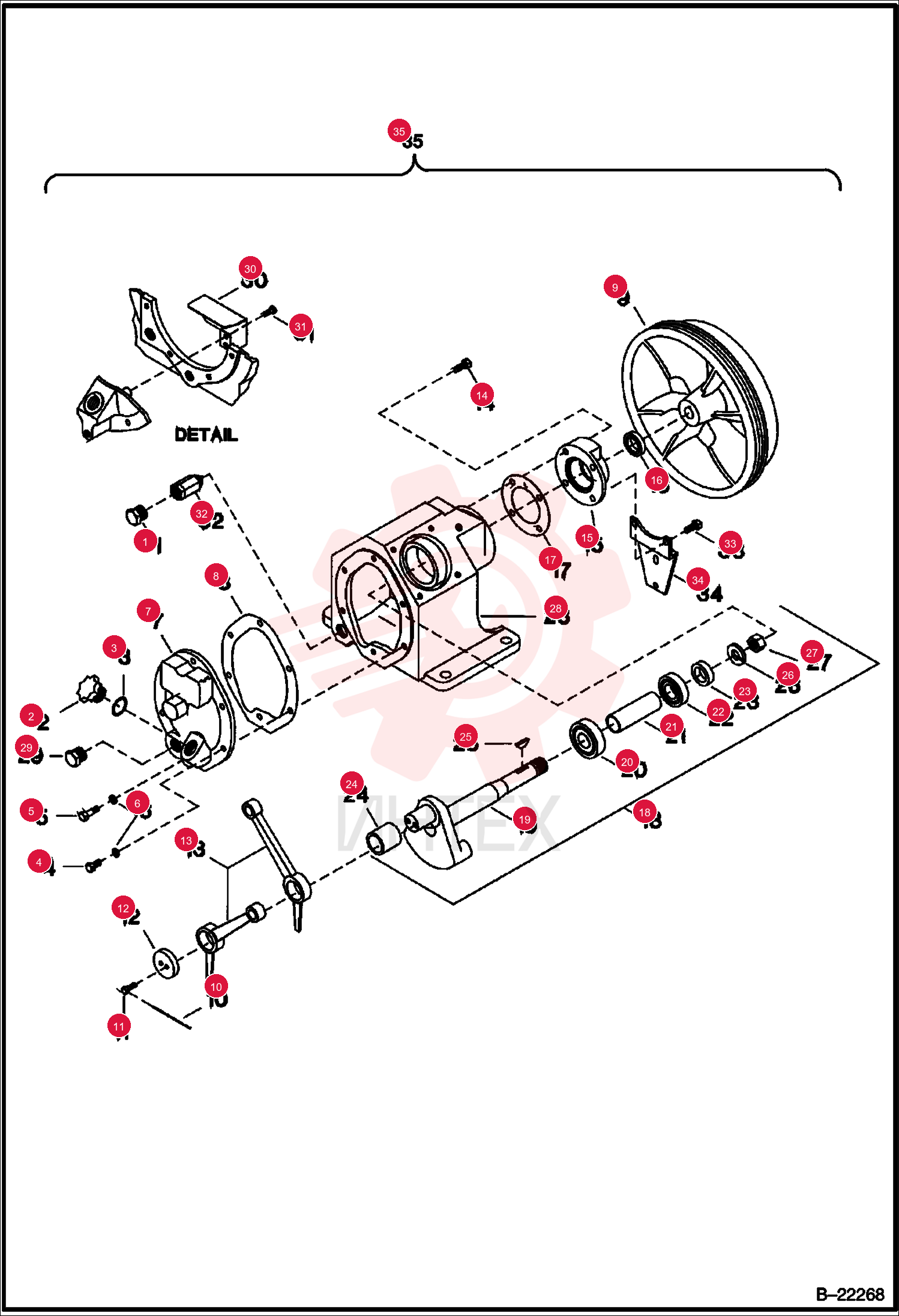

PLUG IR95033601
1 IR95033601
- IR95033601 - PLUG
- pipe
2 IR37127065
- IR37127065 - PLUG
- oil filler
3 IR95022158
- IR95022158 - O-RING
4 IR95105243
- IR95105243 - SCREW
5 IR95002978
- IR95002978 - SCREW
6 IR95674651
- IR95674651 - GASKET
7 IR37127123
- IR37127123 - COVER
8 IR32293680
- IR32293680 - GASKET
- frame end cover
9 IR32498974
- IR32498974 - BELT WHEEL
10 IR90799289
- IR90799289 - LOCKWIRE
11 IR30278709
- IR30278709 - SCREW
12 IR30210314
- IR30210314 - CAP
13 IR32004145
- IR32004145 - ROD
- connecting
14 IR95105243
- IR95105243 - SCREW
15 IR37127032
- IR37127032 - COVER
- shaft end
16 IR32204521
- IR32204521 - SEAL
- oil
17 IR32293672
- IR32293672 - GASKET
- shaft end cover
18 IR32496549
- IR32496549 - CRANKSHAFT
- Ref. 19-27
19 IR32293821
- IR32293821 - SHAFT ASSEMBLY
20 IR95930400
- IR95930400 - BEARING
- ball
21 IR37127016
- IR37127016 - SPACER
22 IR95951216
- IR95951216 - BEARING
- ball
23 IR37127024
- IR37127024 - RING
24 IR30289813
- IR30289813 - BUSHING
25 IR95433173
- IR95433173 - KEY
- woodruff
26 IR95081790
- IR95081790 - WASHER
27 IR95076808
- IR95076808 - NUT
28 IR30222327
- IR30222327 - FRAME
- compressor
29 IR95200333
- IR95200333 - PLUG
- pipe
30 IR32270639
- IR32270639 - BAFFLE
- oil level
31 IR95053070
- IR95053070 - SCREW
32 IR70235049
- IR70235049 - ADAPTER
33 IR95105243
- IR95105243 - SCREW
34 IR97331011
- IR97331011 - BRACKET
35 IR20102802
- IR20102802 - PUMP
- Ref. 1-34
