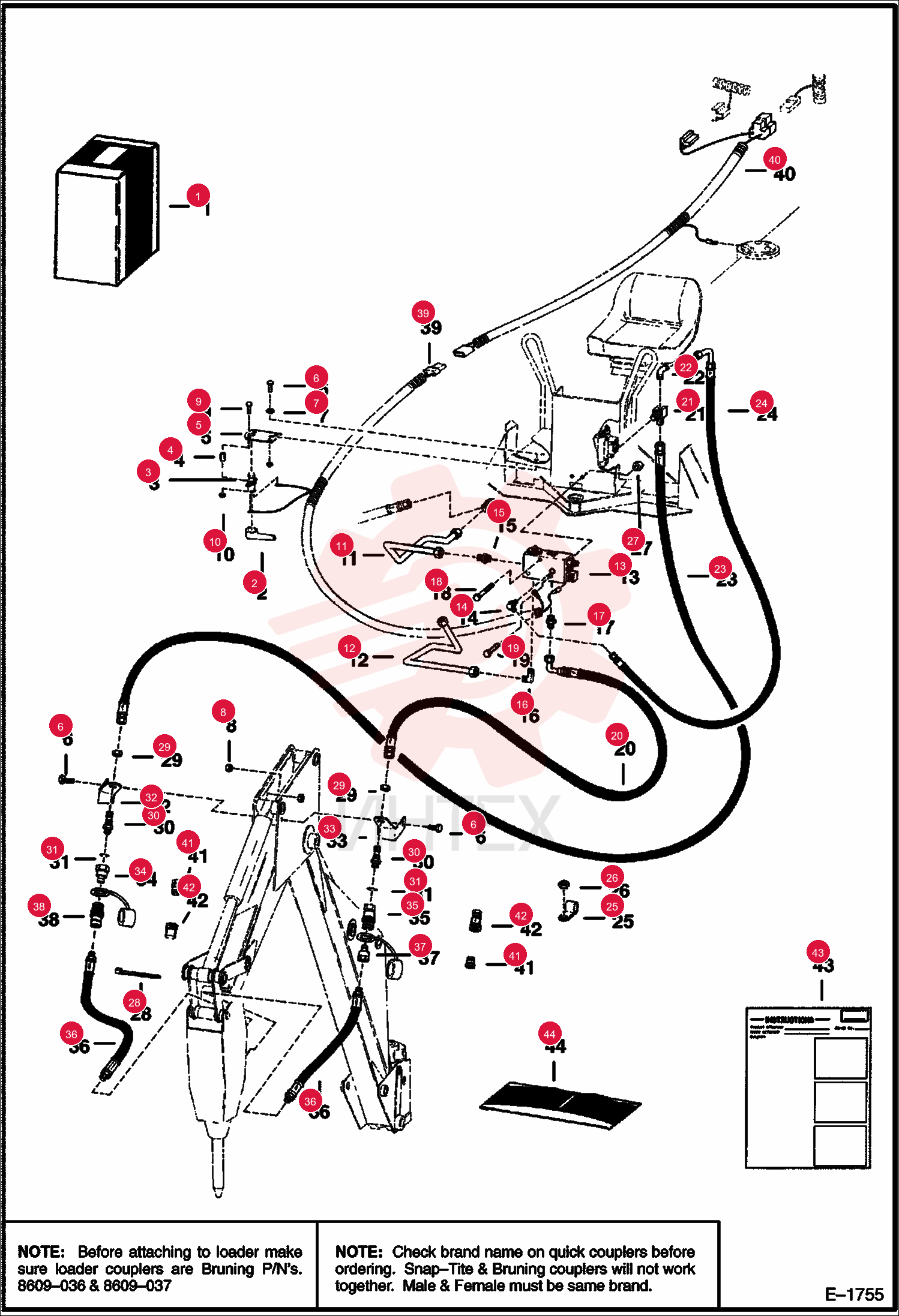

BOOT 6632453
1 6632453
- 6632453 - BOOT
2 2533656
- 2533656 - SWITCH
3 791979
- 791979 - SPACER
4 6593219
- 6593219 - BRACKET
- foot switch
5 17C616
- 17C616 - BOLT 5
6 25E17
- 25E17 - WASHER FLAT PLAIN
7 85D6
- 85D6 - NUT PRETRQ HEX LOCK
8 17C424
- 17C424 - BOLT
9 61D4
- 61D4 - NUT 5
10 6529517
- 6529517 - TUBELINE
- inlet
11 6530933
- 6530933 - TUBELINE
- inlet
12 6530934
- 6530934 - TUBELINE
- outlet
13 6529518
- 6529518 - TUBELINE
- outlet
14 6633758
- 6633758 - ASSY
- VALVE
- ASSY
15 17K3
- 17K3 - ELBOW
- hydraulic 90
16 15K8
- 15K8 - FITTING
- hydraulic
17 17K8
- 17K8 - FITTING
- hydraulic 90
18 17KB1012
- 17KB1012 - FITTING
- HYD ELBOW
- Was 755055B
19 17C548
- 17C548 - BOLT
20 17C540
- 17C540 - BOLT
21 6635425
- 6635425 - ASSY
- HOSE
- assy
22 6565630
- 6565630 - ELBOW
- hydraulic 90
23 83F3
- 83F3 - ELBOW 5
24 6635454
- 6635454 - ASSY
- HOSE
- assy
25 6635453
- 6635453 - ASSY
- HOSE
- assy
26 30H50
- 30H50 - CLAMP
27 81D6
- 81D6 - NUT
28 61D5
- 61D5 - NUT HEX FINISHED GR5
29 6610510
- 6610510 - STRAP
- TIE 10
30 86F8
- 86F8 - NUT 5
31 45K8
- 45K8 - ADAPTOR
- bulkhead
32 79K12
- 79K12 - O RING 10
33 6529524
- 6529524 - BRACKET
- mtg
34 6529525
- 6529525 - BRACKET
- mtg
35 6529526
- 6529526 - ASSY
- HOSE
- assy
36 6529523
- 6529523 - HARNESS
- Bobcat
37 6529522
- 6529522 - HARNESS
- Bobcat - W/Ref. 2
38 6641358
- 6641358 - COUPLER
- MALE
- Male Bruning - SEE NOTE - poppet
39 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
40 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
41 6641359
- 6641359 - COUPLER
- FEMALE
- Female Bruning - SEE NOTE - poppet
42 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
43 7246797
- 7246797 - COUPLER
- FF FEMALE
- - heavy duty - Was 6680017
44 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
45 6570205
- 6570205 - INSTRUCTIONS
46 6648561
- 6648561 - SEAL KIT
- For Both Bruning Couplers
