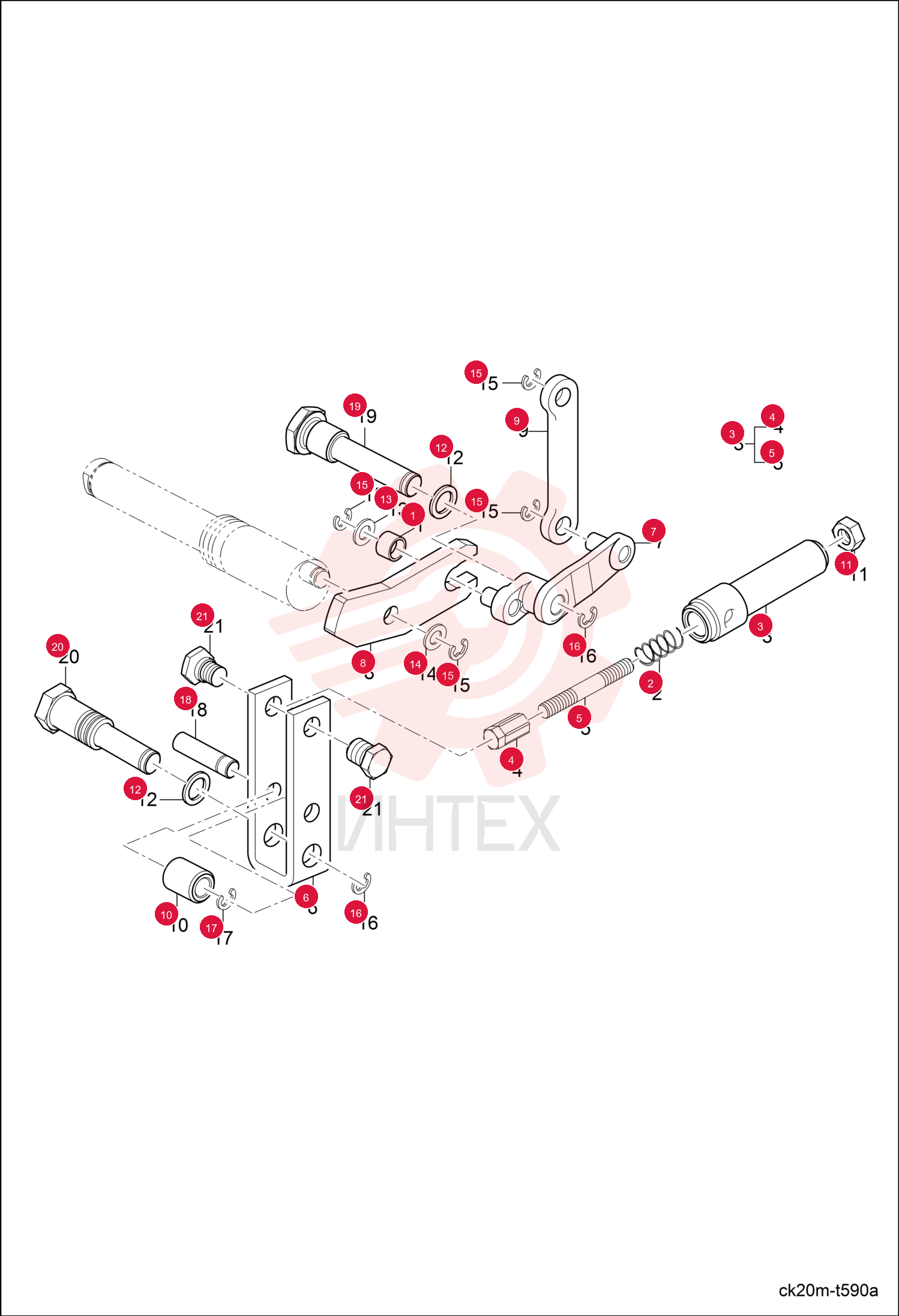

ROLLER 6696532

ROLLER 6696532

ROLLER 6696532

1 6696532

  • 6696532 - ROLLER

2 6695044

  • 6695044 - SEAT SPRING

3 6695049

  • 6695049 - SPRING

4 6695041

  • 6695041 - ROD
  • PUSH ASSY

5 6695042

  • 6695042 - ROD ROD PUSH

6 6695043

  • 6695043 - STUD

7 6695036

  • 6695036 - LEVER

8 6695046

  • 6695046 - ARM

9 6695037

  • 6695037 - LEVER

10 6695045

  • 6695045 - LINK

11 6695039

  • 6695039 - ROLLER

12 6696259

  • 6696259 - NUT LOCK

13 6684818

  • 6684818 - SEAL
  • Was 6694130

14 6694079

  • 6694079 - WASHER PLAIN
  • Was 6698172

15 6694079

  • 6694079 - WASHER PLAIN

16 6694120

  • 6694120 - RING SNAP

17 6694121

  • 6694121 - RING SNAP

18 6694119

  • 6694119 - RING SNAP

19 6695038

  • 6695038 - PIN

20 6695040

  • 6695040 - SUPPORT

21 6695048

  • 6695048 - PIN

22 6695047

  • 6695047 - PLUG
