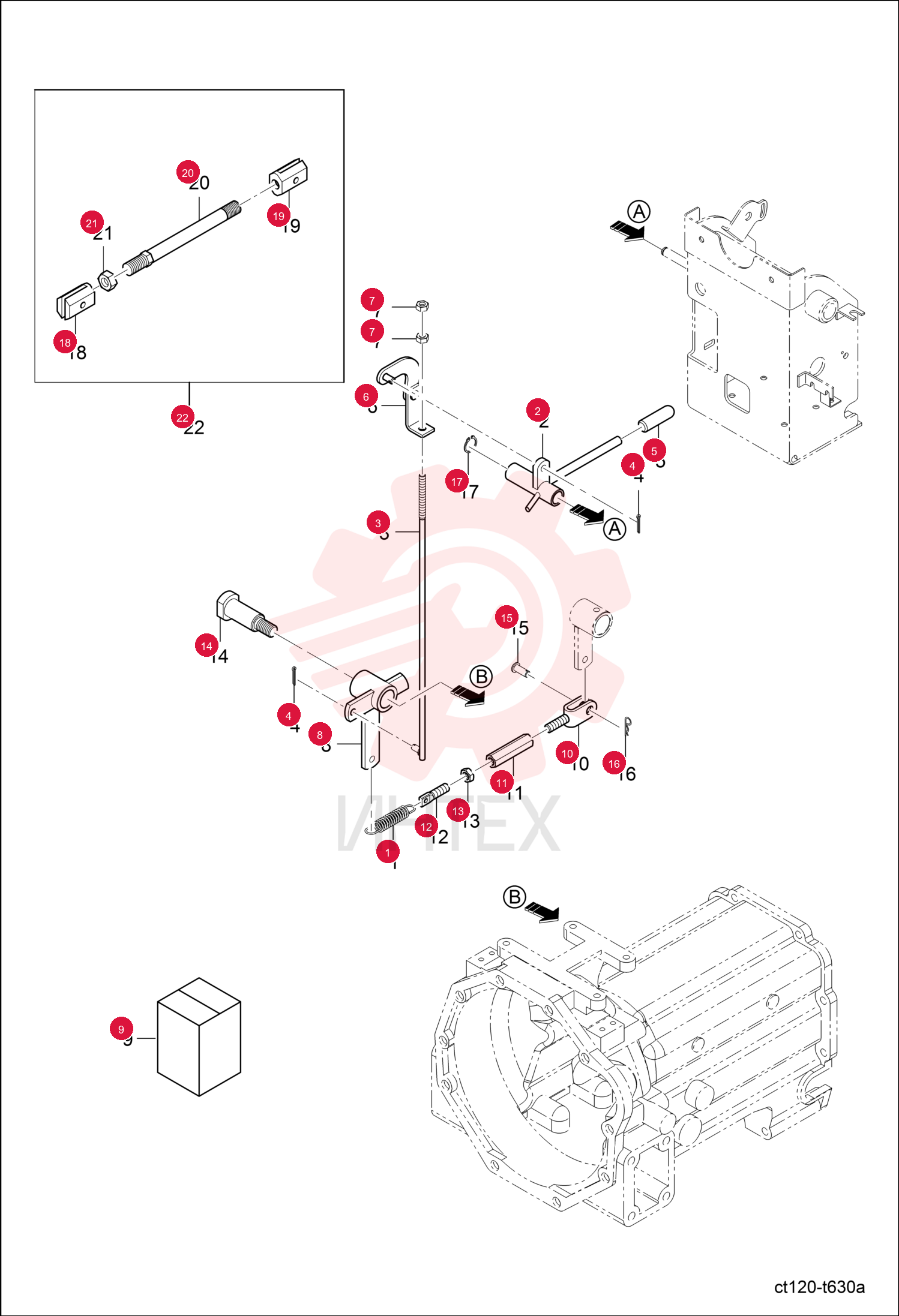

SPRING, CLUTCH 6697975

SPRING, CLUTCH 6697975

SPRING, CLUTCH 6697975

1 6697975

  • 6697975 - SPRING
  • CLUTCH

2 6698317

  • 6698317 - LEVER
  • SET

3 6696531

  • 6696531 - ROD

4 6694208

  • 6694208 - PIN SPLIT

5 6697302

  • 6697302 - HANDLE GRIP

6 6697443

  • 6697443 - LINK

7 6694040

  • 6694040 - NUT

8 6697005

  • 6697005 - ARM

9 6697988

  • 6697988 - ROD
  • CONNECTING(HST)
  • Ref. 10-13

10 6697976

  • 6697976 - LATCH

11 6697990

  • 6697990 - BOLT
  • NLA - Order Ref. 9

12 6697459

  • 6697459 - NUT

13 6696213

  • 6696213 - BOLT LOCK (HST PEDAL)

14 6694183

  • 6694183 - PIN JOINT

15 6694211

  • 6694211 - PIN
  • SNAP

16 6694117

  • 6694117 - RING SNAP

17 6697564

  • 6697564 - ROD
  • END

18 6697567

  • 6697567 - ROD END

19 6695449

  • 6695449 - BAR

20 6652792

  • 6652792 - NUT
  • Was 6694053

21 6696524

  • 6696524 - ROD CONNECTING(HST)
  • Ref. 18-21
