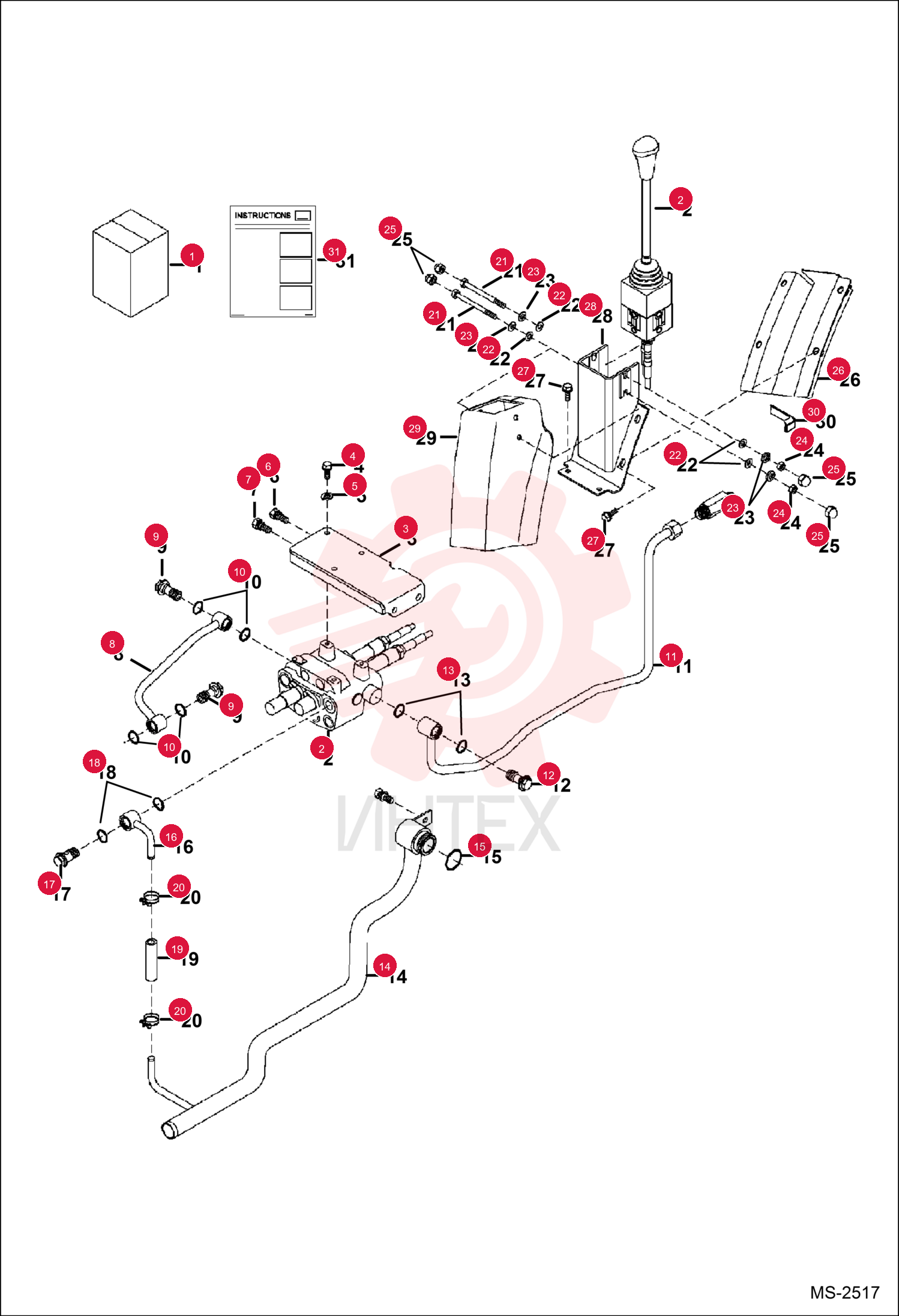

KIT, JOYSTICK VALVE 7199759

KIT, JOYSTICK VALVE 7199759

KIT, JOYSTICK VALVE 7199759

1 7199759

  • 7199759 - KIT
  • JOYSTICK VALVE
  • W/Hydrotech valve - Ref. 2-31

2 6697108

  • 6697108 - BRACKET
  • VALVE

3 6695575

  • 6695575 - BOLT

4 6697775

  • 6697775 - WASHER SPRING

5 6693980

  • 6693980 - BOLT

6 6697061

  • 6697061 - BOLT

7 6697755

  • 6697755 - TUBE P1 HYDRAULIC

8 6696165

  • 6696165 - BOLT JOINT

9 6694137

  • 6694137 - O-RING

10 6697745

  • 6697745 - TUBE HYD

11 6697074

  • 6697074 - BOLT JOINT

12 6694137

  • 6694137 - O-RING

13 6697759

  • 6697759 - TUBELINE
  • SUCTION

14 6697463

  • 6697463 - SEAL O-RING

15 6697756

  • 6697756 - TUBE RETURN

16 6695562

  • 6695562 - BOLT JOINT

17 6694137

  • 6694137 - O-RING

18 6697359

  • 6697359 - HOSE RETURN

19 7000814

  • 7000814 - CLAMP
  • HOSE
  • Was 6694674

20 6695520

  • 6695520 - BOLT

21 6694088

  • 6694088 - WASHER PLAIN

22 6697775

  • 6697775 - WASHER SPRING

23 6696241

  • 6696241 - NUT

24 6695694

  • 6695694 - CAP
  • NUT

25 6697230

  • 6697230 - FRAME
  • JOYSTICK

26 6697058

  • 6697058 - BOLT

27 6697162

  • 6697162 - COVER
  • HOSE

28 6697192

  • 6697192 - COVER JOYSTICK

29 6697590

  • 6697590 - SUPPORT RUBBER

30 6986752

  • 6986752 - INSTRUCTIONS
