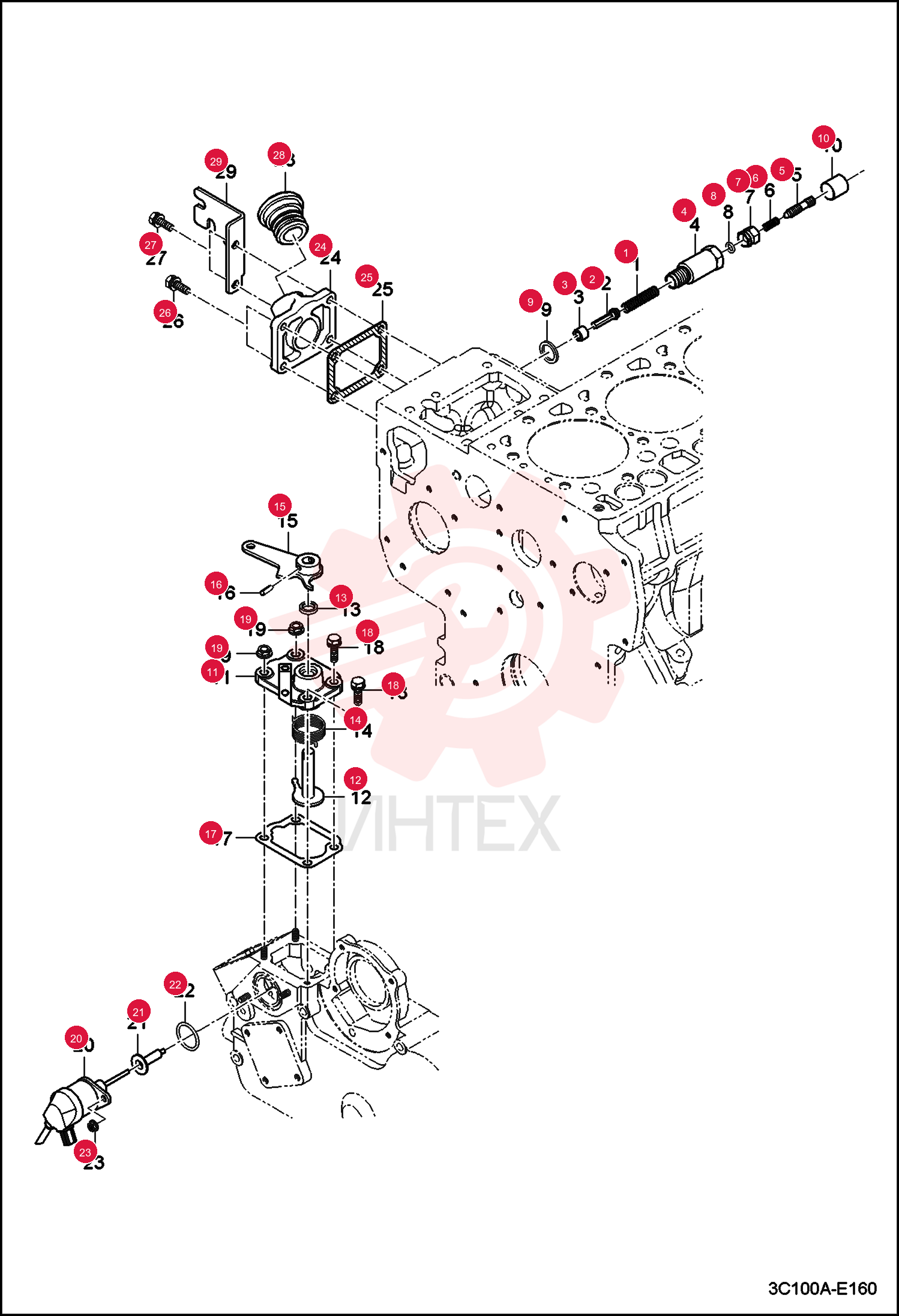

SPRING, START 7000881

SPRING, START 7000881

SPRING, START 7000881

1 7000881

  • 7000881 - SPRING
  • START

2 6696623

  • 6696623 - SHAFT
  • IDLE ADJUST

3 6697120

  • 6697120 - BUSHING

4 6697382

  • 6697382 - HOUSING
  • IDLE ADJUST

5 6696143

  • 6696143 - BOLT IDLE ADJUSTING

6 7000879

  • 7000879 - SPRING
  • GOVERNOR

7 6696250

  • 6696250 - NUT

8 6696265

  • 6696265 - O-RING

9 6684818

  • 6684818 - SEAL
  • Was 6694130

10 6694536

  • 6694536 - CAP
  • security

11 6696440

  • 6696440 - PLATE SPEED CONTROL

12 6697409

  • 6697409 - LEVER ENGINE STOP

13 6694333

  • 6694333 - OIL SEAL

14 6696734

  • 6696734 - SPRING

15 6696769

  • 6696769 - LEVER
  • STOP ENG

16 6694193

  • 6694193 - PIN SPRING

17 6697263

  • 6697263 - GASKET
  • SPEED CONTROL

18 6694024

  • 6694024 - BOLT FLANGE
  • Was 6693946

19 6696258

  • 6696258 - NUT FLANGE
  • Was 6696243

20 7322105

  • 7322105 - HARNESS JUMPER
  • adapt from 2 to 3 prong

21 7002157

  • 7002157 - SOLENOID
  • ENG STOP
  • 3 prong connector - Was 6697653

22 7000882

  • 7000882 - GUIDE
  • SOLENOID

23 6685465

  • 6685465 - O-RING
  • Was 6696280

24 6684827

  • 6684827 - NUT
  • Was 6696243

25 7000871

  • 7000871 - COVER

26 6697241

  • 6697241 - GASKET

27 6695557

  • 6695557 - BOLT
  • Was 6697050

28 6694024

  • 6694024 - BOLT FLANGE
  • Was 6697051

29 6694597

  • 6694597 - PLUG
  • FILL
  • threaded

30 6696458

  • 6696458 - PLUG
  • OIL
  • press in

31 7000884

  • 7000884 - BRACKET
  • CABLE
