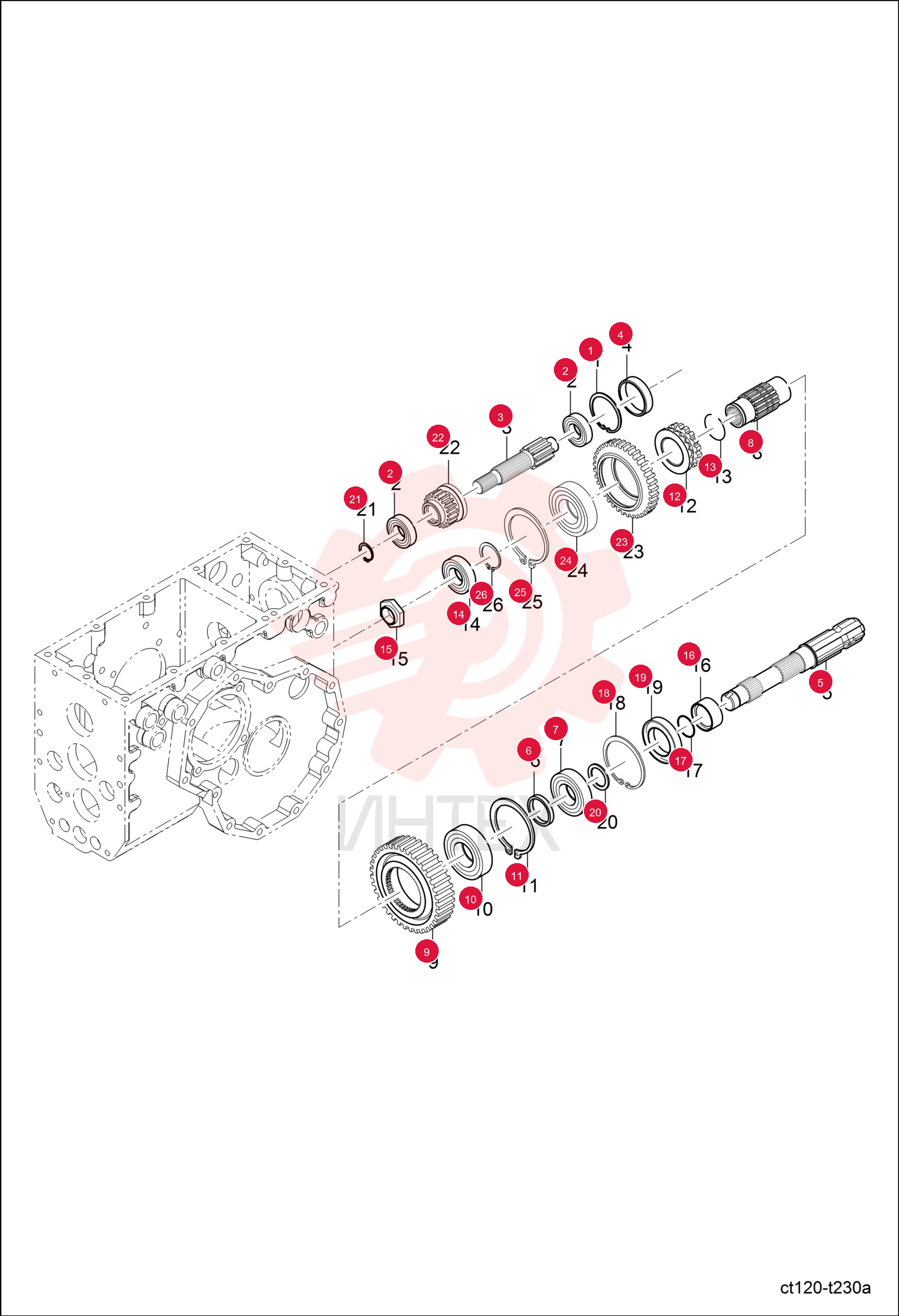

RING SNAP 6694100

RING SNAP 6694100

RING SNAP 6694100

1 6694100

  • 6694100 - RING SNAP

2 6694247

  • 6694247 - BEARING BALL

3 6694952

  • 6694952 - SHAFT 3 PTO DRIVING

4 6694957

  • 6694957 - CAP
  • SEALING

5 6697630

  • 6697630 - SHAFT

6 6694955

  • 6694955 - SPACER

7 6694242

  • 6694242 - BEARING BALL

8 6694950

  • 6694950 - SPOOL
  • LINE BOSS

9 6694945

  • 6694945 - GEAR 49

10 6694243

  • 6694243 - BEARING BALL

11 6694103

  • 6694103 - RING SNAP

12 6694946

  • 6694946 - LEVER
  • SHIFTER PTO

13 6694948

  • 6694948 - RING

14 6694248

  • 6694248 - BEARING BALL

15 6694953

  • 6694953 - NUT 24

16 6694954

  • 6694954 - SLEEVE

17 6694150

  • 6694150 - SEAL O RING

18 6694102

  • 6694102 - RING SNAP

19 6694956

  • 6694956 - SEAL OIL

20 6694801

  • 6694801 - SHIM

21 6694109

  • 6694109 - RING SNAP

22 6694951

  • 6694951 - GEAR 17

23 6694947

  • 6694947 - GEAR 42

24 6694243

  • 6694243 - BEARING BALL

25 6694103

  • 6694103 - RING SNAP

26 6694114

  • 6694114 - RING SNAP
