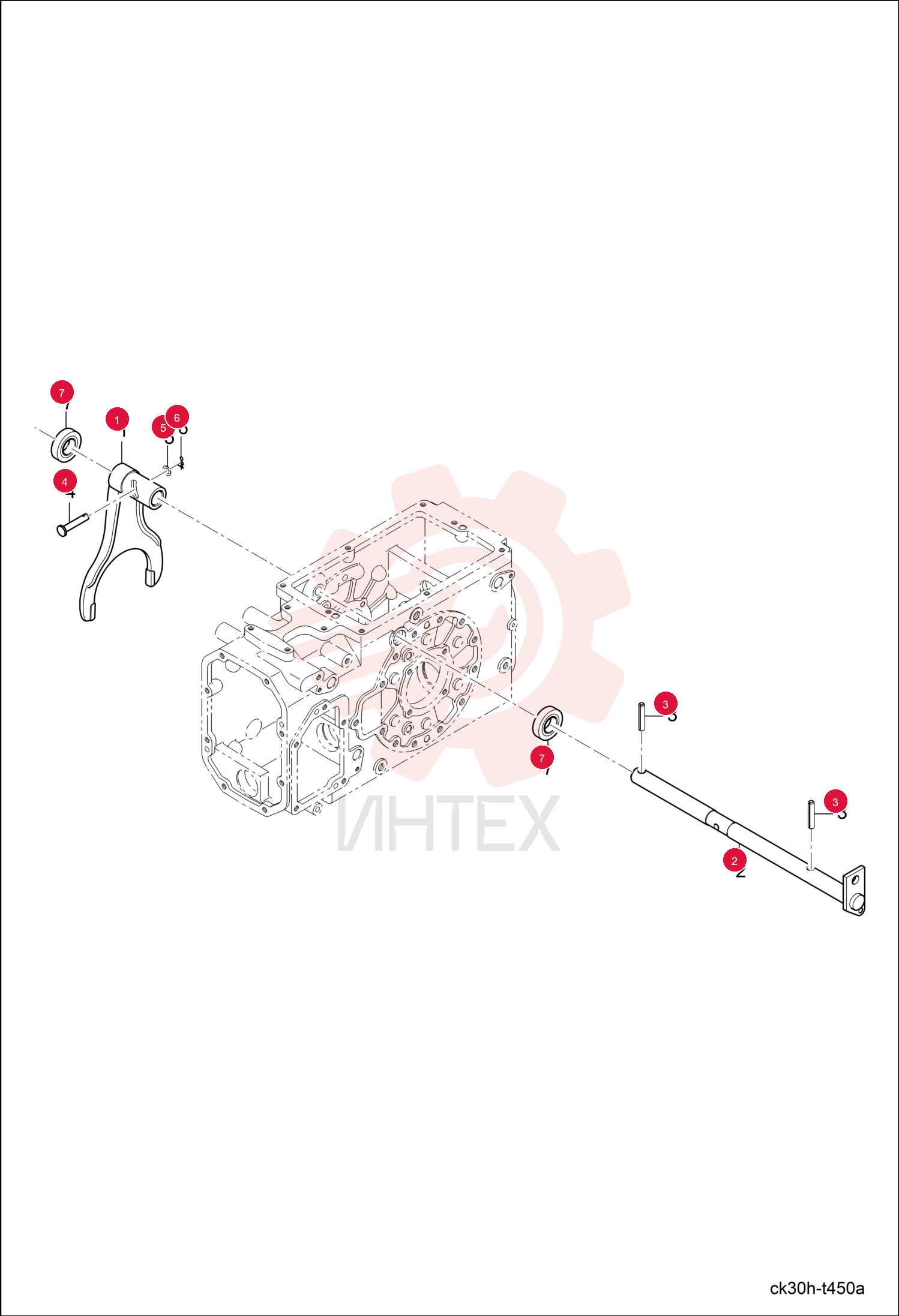

FORK 6695927

FORK 6695927

FORK 6695927

1 6695927

  • 6695927 - FORK

2 6697130

  • 6697130 - CAM
  • DIFF LOCK

3 6694199

  • 6694199 - PIN SPRING

4 6696328

  • 6696328 - PIN

5 6697779

  • 6697779 - WASHER

6 6696349

  • 6696349 - PIN SNAP

7 6696573

  • 6696573 - SEAL OIL
