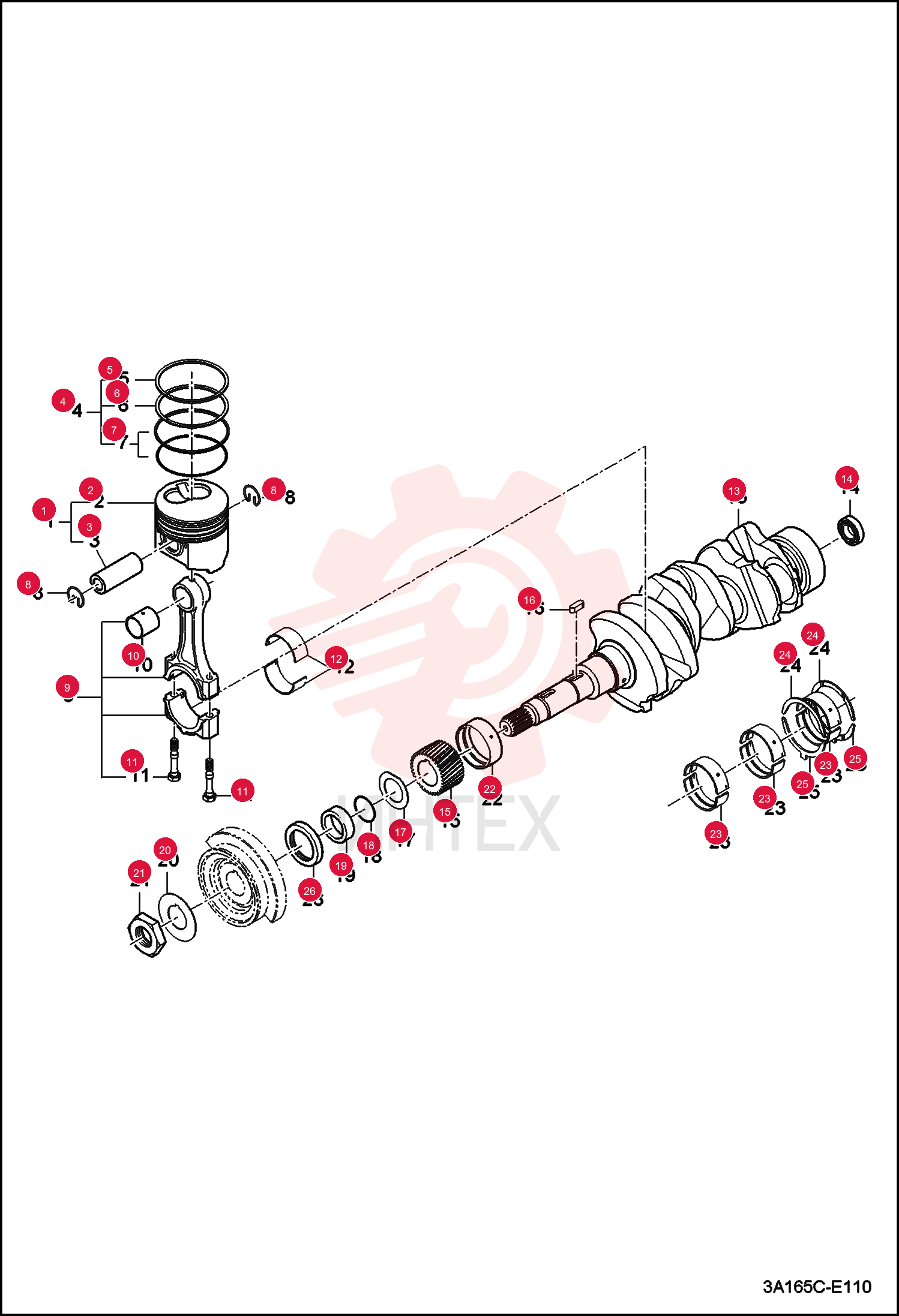

PISTON 7000231

PISTON 7000231

PISTON 7000231

1 7000231

  • 7000231 - PISTON

2 7000236

  • 7000236 - PIN
  • PISTON

3 7000230

  • 7000230 - TANK FUEL ASSEMBLY
  • Ref. 5-7

4 7000232

  • 7000232 - RING
  • PISTON

5 7000225

  • 7000225 - RING
  • PISTON 2

6 7000233

  • 7000233 - RING
  • OIL ENG

7 6695721

  • 6695721 - CLIP CIR

8 6695792

  • 6695792 - CONNECTOR
  • ASSY
  • W/Ref. 10 & 11

9 6695660

  • 6695660 - BUSHING PISTON PIN

10 6697076

  • 6697076 - BOLT ROD

11 6695852

  • 6695852 - BEARING CRANK PIN

12 6695407

  • 6695407 - CRANKSHAFT

13 6695459

  • 6695459 - BEARING BALL

14 6696010

  • 6696010 - GEAR CRANKSHAFT

15 6696169

  • 6696169 - KEY

16 6696298

  • 6696298 - PUMP
  • SLINGER OIL

17 3974577

  • 3974577 - O-RING
  • Was 6696273

18 6695758

  • 6695758 - BUSHING
  • CRANKSHAFT

19 6695860

  • 6695860 - WASHER CRANKSHAFT

20 6695858

  • 6695858 - NUT CRANKSHAFT

21 6695856

  • 6695856 - BEARING CRANKSHAFT

22 6695857

  • 6695857 - BEARING CRANKSHAFT

23 6696679

  • 6696679 - BEARING
  • THRUST

24 6696680

  • 6696680 - BEARING THRUST

25 6696296

  • 6696296 - SEAL OIL
