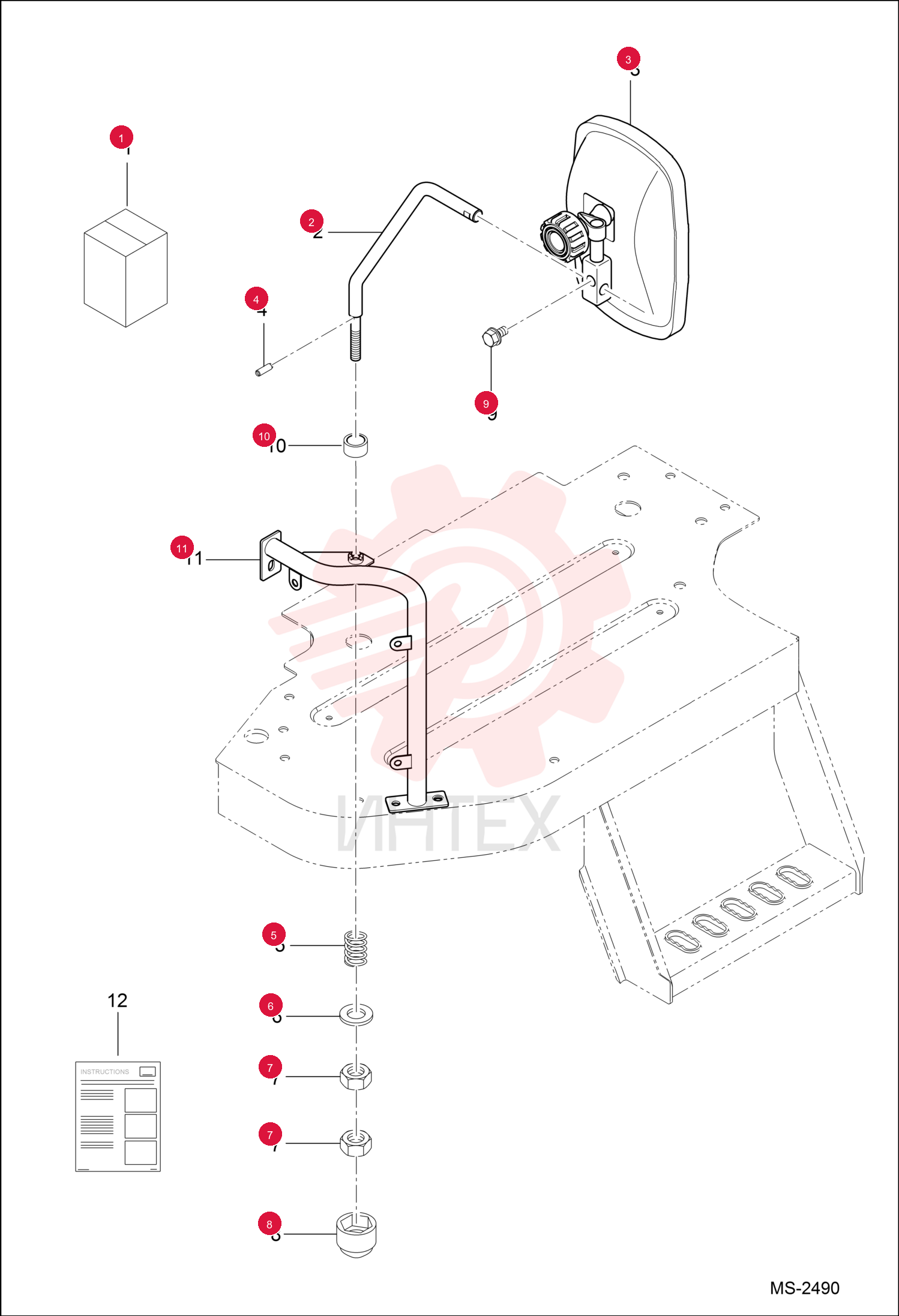

KIT MIRROR 7150495

KIT MIRROR 7150495

KIT MIRROR 7150495

1 7150495

  • 7150495 - KIT MIRROR
  • Ref. 2-11 - Was 7001537

2 6697030

  • 6697030 - BAR
  • MIRROR BACK

3 6697452

  • 6697452 - MIRROR
  • REAR VIEW

4 6697489

  • 6697489 - PIN SPRING

5 6697673

  • 6697673 - SPRING

6 6696912

  • 6696912 - WASHER PLAIN

7 6694056

  • 6694056 - NUT

8 6697132

  • 6697132 - CAP
  • RUBBER

9 6695586

  • 6695586 - BOLT FLANGE

10 6697165

  • 6697165 - BRACKET
  • MIRROR

11 6986597

  • 6986597 - INSTRUCTIONS
