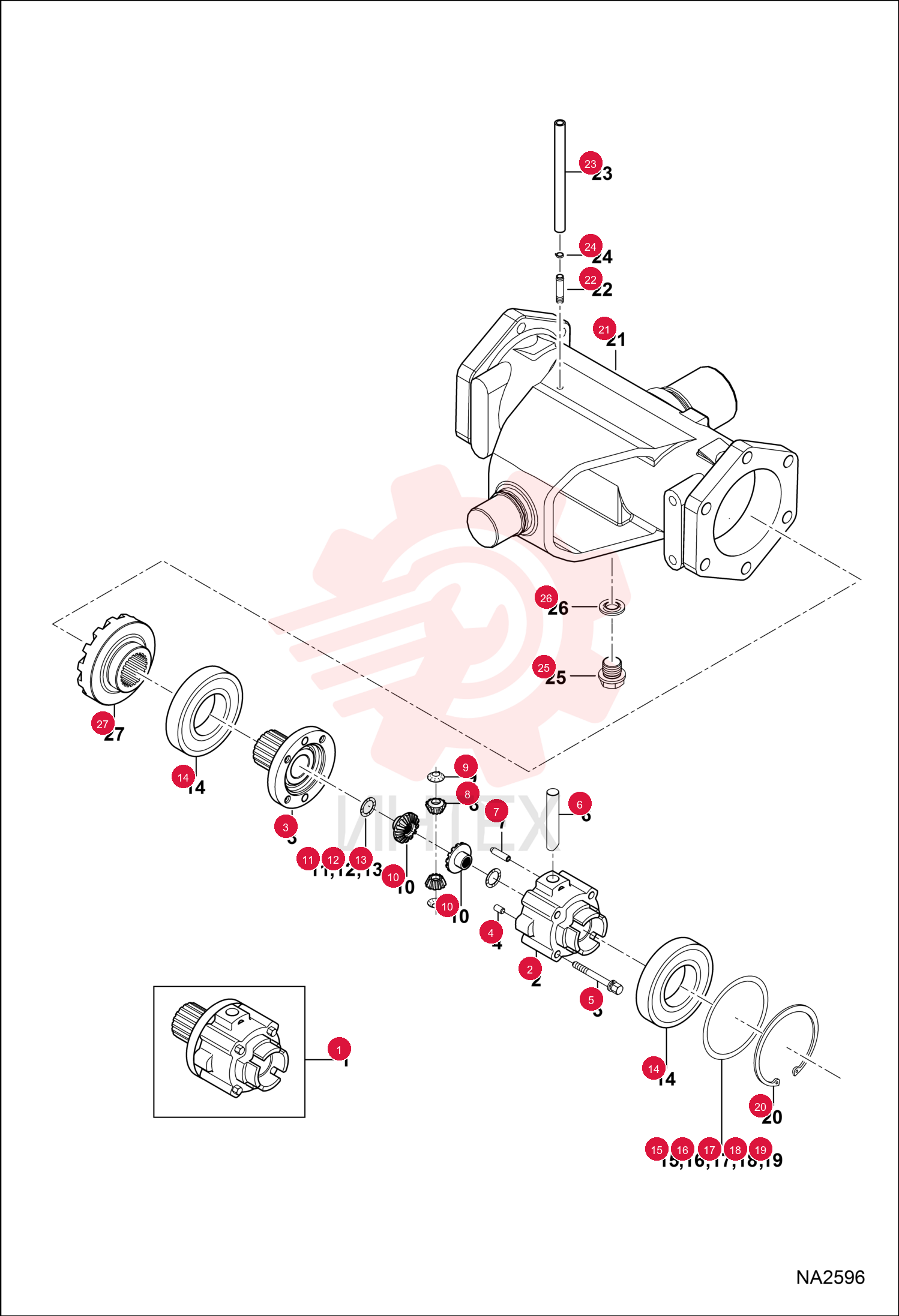

DIFFERENTIAL, FRONT 7002183 (1)

DIFFERENTIAL, FRONT 7002183 (1)

DIFFERENTIAL, FRONT 7002183 (1)

1 7002183

  • 7002183 - DIFFERENTIAL
  • FRONT
  • assy - Ref. 2-13

2 6695707

  • 6695707 - HOUSING FRONT DIFF

3 7002131

  • 7002131 - COVER
  • DIFF

4 6694171

  • 6694171 - PIN STRAIGHT

5 6695516

  • 6695516 - BOLT

6 6696617

  • 6696617 - SHAFT DIFF PINION

7 6696350

  • 6696350 - PIN STRAIGHT

8 6695875

  • 6695875 - GEAR
  • PINION

9 6696903

  • 6696903 - WASHER
  • DIFF PINION

10 6696011

  • 6696011 - GEAR DIFF SIDE

11 6696657

  • 6696657 - SHIM
  • 0
  • 8 mm

12 6696659

  • 6696659 - SHIM
  • 1
  • 0 mm

13 6696662

  • 6696662 - SHIM
  • 1
  • 2 mm

14 6695457

  • 6695457 - BEARING BALL

15 6696656

  • 6696656 - SHIM
  • 0
  • 8 mm

16 6696658

  • 6696658 - SHIM
  • 1
  • 0 mm

17 6696661

  • 6696661 - SHIM
  • 1
  • 2 mm

18 6696664

  • 6696664 - SHIM
  • 2
  • 0 mm

19 7012822

  • 7012822 - RING
  • SNAP
  • 4 mm thick for 7012995 front axle support

20 7012995

  • 7012995 - SUPPORT
  • AXLE FRONT
  • with 4 mm snap ring groove for 7012822 snap ring

21 6695791

  • 6695791 - CONNECTOR AIR BREATHER

22 6696117

  • 6696117 - HOSE
  • OVER FLOW

23 6694323

  • 6694323 - CLAMP
  • HOSE

24 6697534

  • 6697534 - PLUG

25 6655161

  • 6655161 - WASHER
  • Was 6694125
