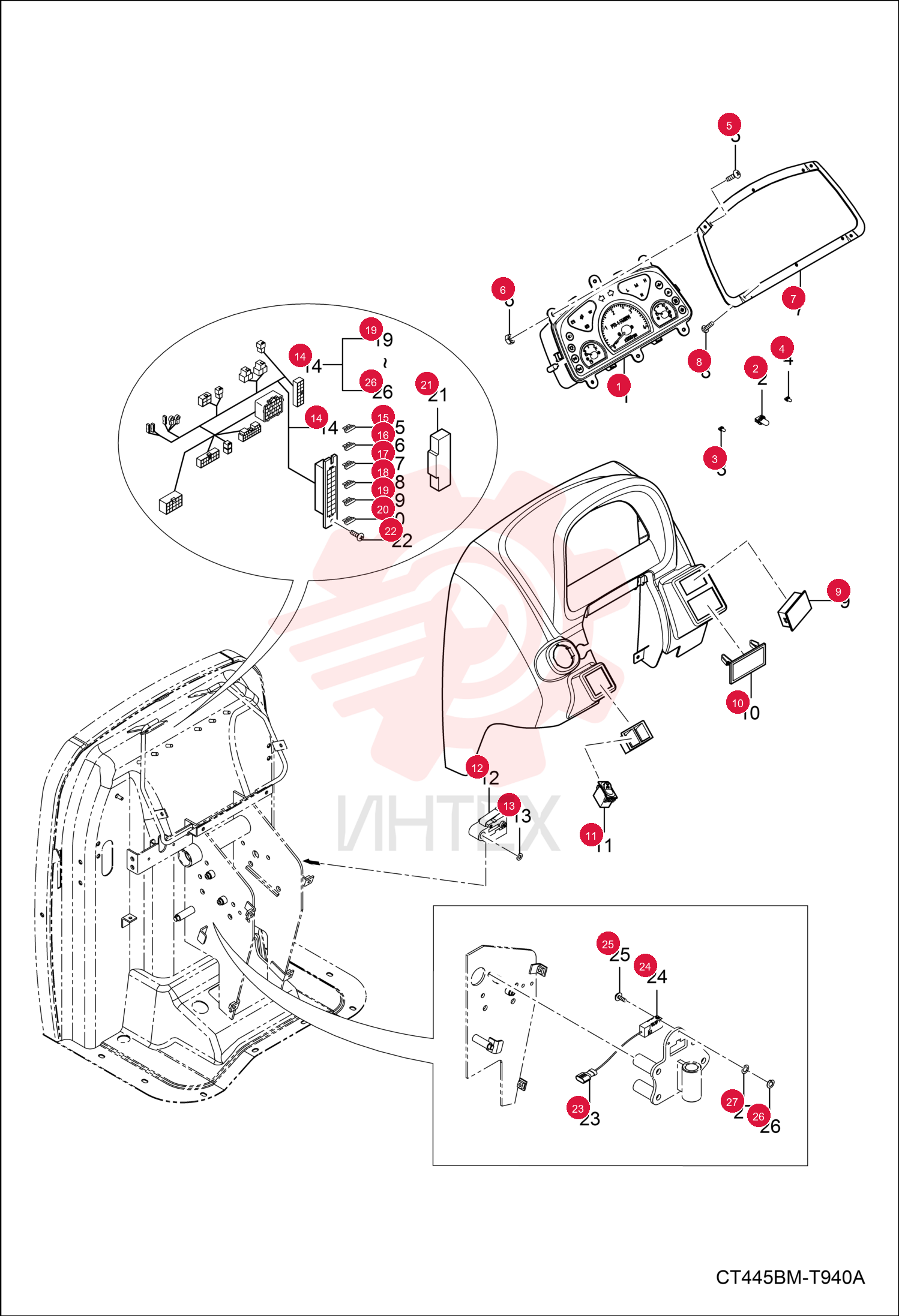

PANEL, INSTRUMENT 7002247 (2)

PANEL, INSTRUMENT 7002247 (2)

PANEL, INSTRUMENT 7002247 (2)

1 7002247

  • 7002247 - PANEL
  • INSTRUMENT

2 6697432

  • 6697432 - LIGHT
  • BULB 12V 34W

3 6695652

  • 6695652 - LIGHT
  • BULB 14V/ 14W

4 6697430

  • 6697430 - LIGHT

5 6694063

  • 6694063 - SCREW

6 6694037

  • 6694037 - NUT

7 7002002

  • 7002002 - FRAME
  • PANEL INSTRUMENT

8 6694386

  • 6694386 - SCREW

9 7002543

  • 7002543 - COVER

10 7003074

  • 7003074 - COVER

11 7002035

  • 7002035 - SWITCH
  • 4WD

12 7002273

  • 7002273 - SWITCH
  • MICRO

13 7002316

  • 7002316 - WASHER
  • PLAIN

14 7013098

  • 7013098 - HARNESS
  • W/Ref. 15-21

15 6654803

  • 6654803 - FUSE 5A
  • Was 6697237

16 6654805

  • 6654805 - FUSE 10A
  • Was 6697235

17 6654806

  • 6654806 - FUSE
  • 15A
  • Was 6694371

18 6625575

  • 6625575 - FUSE
  • 20A
  • Was 6694380

19 6625575

  • 6625575 - FUSE
  • 20A

20 6702444

  • 6702444 - FUSE 25A 5
  • Was 6697236

21 6695815

  • 6695815 - COVER
  • FUSE BOX

22 6695540

  • 6695540 - BOLT

23 7013101

  • 7013101 - WIRE
  • CONNECTION

24 6697715

  • 6697715 - SWITCH
  • MICRO

25 6694068

  • 6694068 - BOLT SCREW

26 6696922

  • 6696922 - WASHER SPRING

27 6694075

  • 6694075 - WASHER PLAIN
