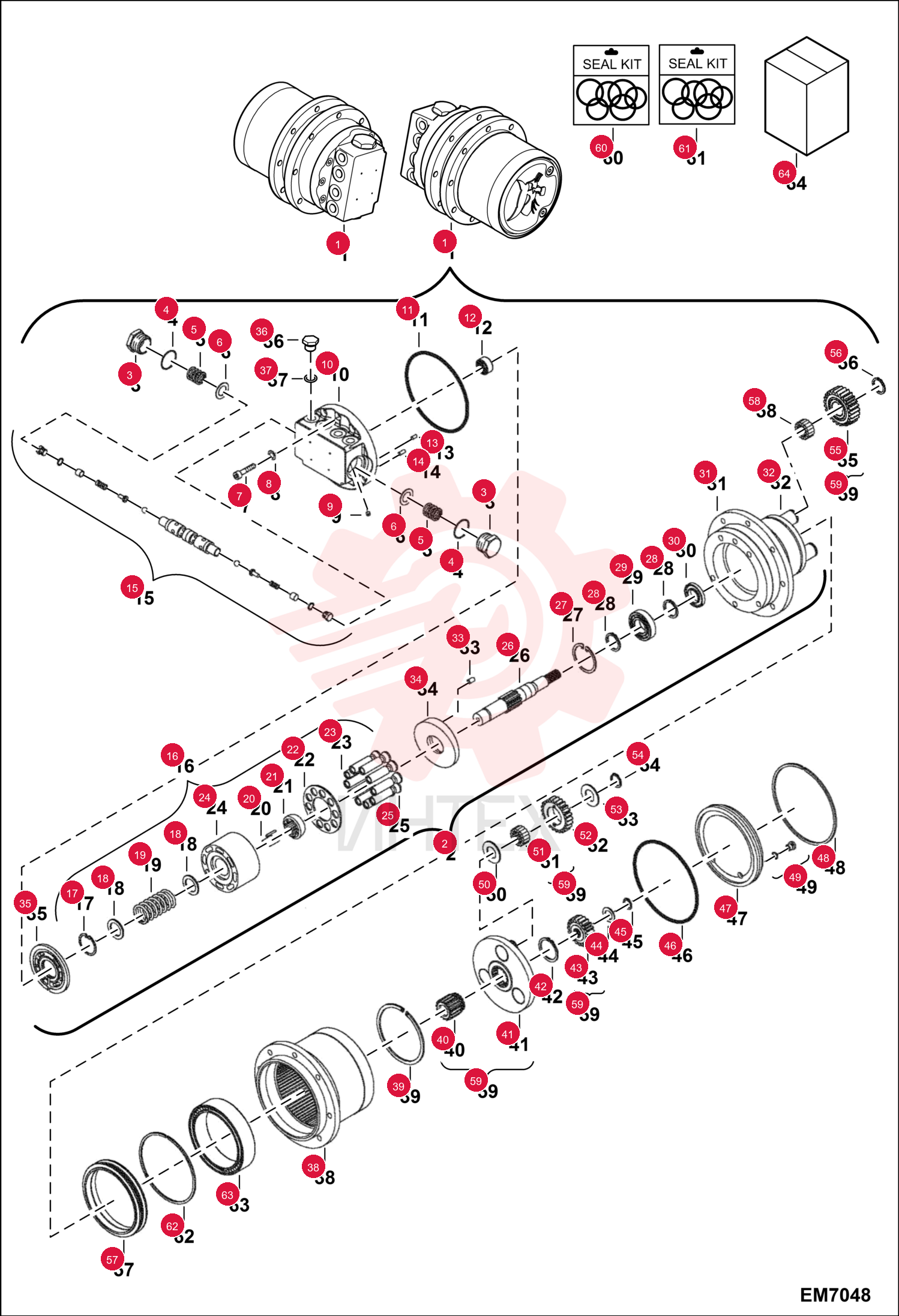

MOTOR DRIVE 6691106

MOTOR DRIVE 6691106

MOTOR DRIVE 6691106

1 6691106

  • 6691106 - MOTOR DRIVE
  • 1 speed - W/Ref. 2-59

2 7000423

  • 7000423 - MOTOR
  • W/O gear drive - W/Ref. 3-37

3 6667783

  • 6667783 - PLUG
  • Was 6688104

4 7017789

  • 7017789 - O-RING

5 6667784

  • 6667784 - SPRING
  • Was 6688105

6 6688108

  • 6688108 - BOLT

7 6667788

  • 6667788 - WASHER

8 7000436

  • 7000436 - REGULATOR

9 7000424

  • 7000424 - COVER MOTOR

10 6667779

  • 6667779 - O-RING

11 6667781

  • 6667781 - BEARING

12 6667782

  • 6667782 - DOWEL PIN

13 6688111

  • 6688111 - PIN

14 6688115

  • 6688115 - VALVE

15 6667778

  • 6667778 - PISTON
  • MOTOR TRAVEL
  • Ref. 17-25

16 7000433

  • 7000433 - RING RETAINING

17 7000427

  • 7000427 - WASHER

18 7000426

  • 7000426 - SPRING PUMPING DRUM

19 7017787

  • 7017787 - PIN

20 7000430

  • 7000430 - SUPPORT PISTON

21 7000428

  • 7000428 - PLATE PISTON

22 7000434

  • 7000434 - PISTON

23 7000425

  • 7000425 - DRUM PUMPING

24 7000429

  • 7000429 - BLOCK SLIDING

25 7017788

  • 7017788 - SHAFT

26 6667762

  • 6667762 - SNAP RING

27 6667756

  • 6667756 - SNAP RING

28 6688114

  • 6688114 - BEARING

29 6667774

  • 6667774 - SEAL

30 7000437

  • 7000437 - HUB

31 7000418

  • 7000418 - PIN

32 6671913

  • 6671913 - PIN

33 7010970

  • 7010970 - PLATE
  • SWASH

34 6693118

  • 6693118 - PLASTIC PLUG 9/16"UNF

35 6692863

  • 6692863 - ORING

36 7000402

  • 7000402 - HOUSING OUTPUT

37 7000407

  • 7000407 - ACCESSORY SEEGER D.100

38 7000416

  • 7000416 - GEAR SUN

39 7000415

  • 7000415 - CARRIER PLANETARY

40 7000422

  • 7000422 - RING EXTERNAL SNAP

41 7000405

  • 7000405 - GEAR SUN

42 6688119

  • 6688119 - KIT

43 6688118

  • 6688118 - RING

44 7000410

  • 7000410 - ORING

45 7000403

  • 7000403 - COVER END

46 7000409

  • 7000409 - RETAINER INT. BR130

47 6676161

  • 6676161 - PLUG
  • W/ O-ring

48 7000420

  • 7000420 - WASHER

49 6667763

  • 6667763 - BEARING

50 7000417

  • 7000417 - GEAR PLANETARY

51 7000419

  • 7000419 - WASHER

52 7000421

  • 7000421 - RING EXTERNAL SNAP

53 7000404

  • 7000404 - GEAR PLANETARY

54 7000406

  • 7000406 - RING EXTERNAL SNAP

55 7000411

  • 7000411 - SEAL DOUBLE FRONT

56 7000412

  • 7000412 - BEARING NEEDLE

57 7000414

  • 7000414 - GEAR PLANETARY SET
  • W/Ref. 40-41
  • 43
  • 52 & 55

58 7000439

  • 7000439 - KIT MAJOR REBUILT
  • major rebuild - Ref. 4
  • 11
  • 30
  • 37
  • 46 & 57

59 7000438

  • 7000438 - KIT
  • BASE SEAL
  • Ref. 4
  • 11
  • 30
  • 37 & 46

60 7000408

  • 7000408 - RING INTERNAL SNAP BR125

61 7000413

  • 7000413 - BEARING BALL

62 7310948

  • 7310948 - KIT PLUG
