Bobcat
/
E10
/

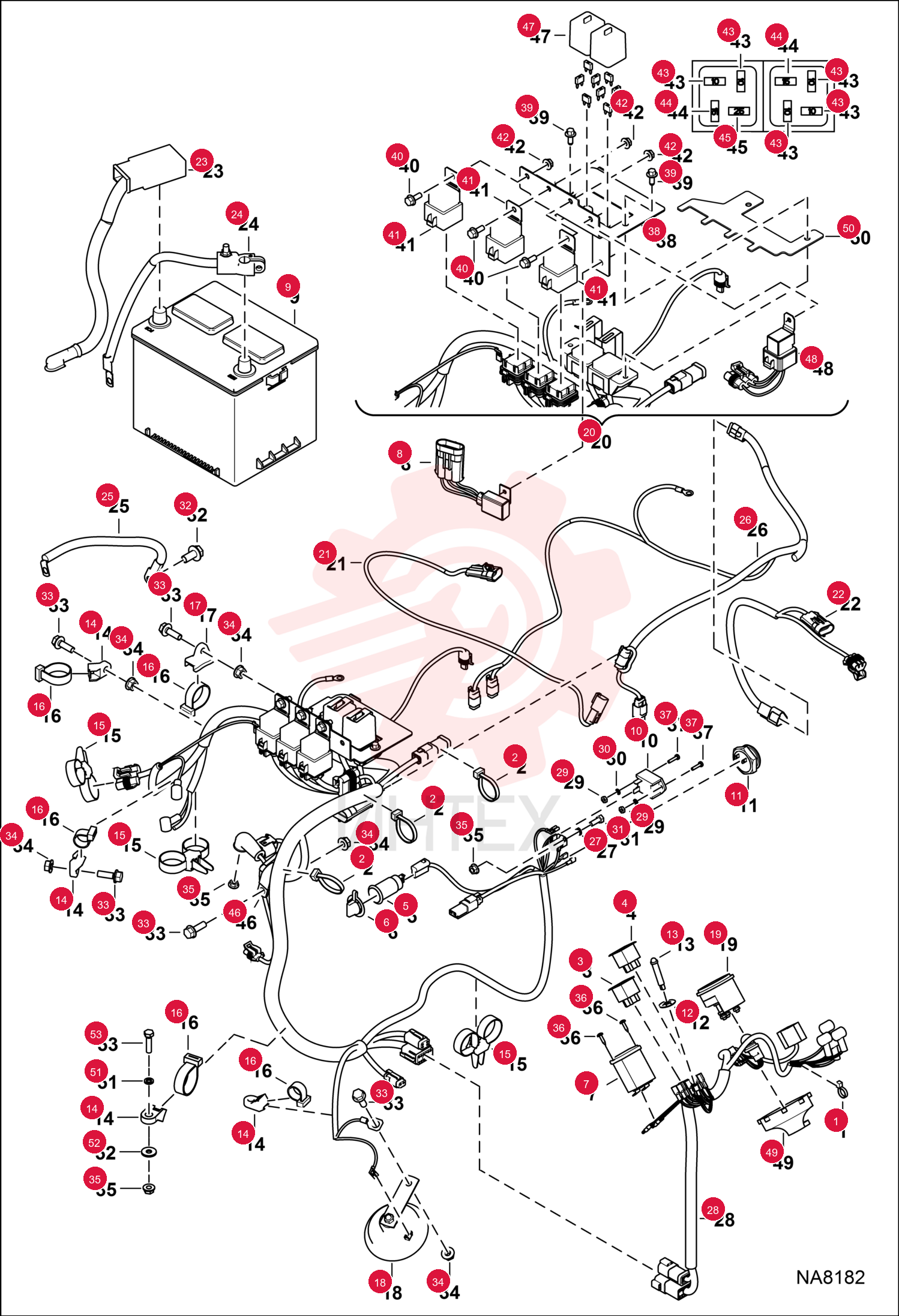

STRAP, TIE 10 6610510 (2)

STRAP, TIE 10 6610510 (2)

STRAP, TIE 10 6610510 (2)

1 6610510

  • 6610510 - STRAP
  • TIE 10

2 6624289

  • 6624289 - STRAP
  • TIE

3 6661598

  • 6661598 - LAMP

4 6661599

  • 6661599 - LAMP

5 6664223

  • 6664223 - OUTLET ELECTRICAL

6 6664224

  • 6664224 - CAP

7 6664886

  • 6664886 - METER HOUR

8 6669415

  • 6669415 - TIMER
  • SOLENOID

9 7269858

  • 7269858 - BATTERY WET 540 CCA
  • - Was 6670251

10 6673122

  • 6673122 - REG.TIMER

11 6675705

  • 6675705 - ALARM

12 774220

  • 774220 - NUT
  • - Was 6675859

13 7227564

  • 7227564 - LIGHT
  • LED GREEN
  • - Was 6675908

14 6678667

  • 6678667 - MOUNT

15 6678668

  • 6678668 - STRAP

16 6678669

  • 6678669 - STRAP T250 H/D

17 6678818

  • 6678818 - MOUNT

18 6691276

  • 6691276 - ALARM

19 7017075

  • 7017075 - GAUGE
  • FUEL

20 6634273

  • 6634273 - GAUGE
  • FUEL

21 7141452

  • 7141452 - HARNESS
  • FRAME
  • W/Ref. 38-50

22 7141454

  • 7141454 - HARNESS
  • RH CONSOLE

23 7141455

  • 7141455 - HARNESS
  • LH CONSOLE

24 7247740

  • 7247740 - CABLE
  • POSITIVE
  • - Was 7141457

25 7224327

  • 7224327 - CABLE
  • NEGATIVE
  • - Was 7141458

26 7205941

  • 7205941 - CABLE
  • NEGATIVE
  • - Was 7141459

27 7147217

  • 7147217 - HARNESS PILOT

28 7156777

  • 7156777 - WASHER

29 7330651

  • 7330651 - HARNESS PANEL CONTROL
  • - Was 7181244

30 7193279

  • 7193279 - HARNESS PANEL
  • - Was 7181244

31 12D6

  • 12D6 - NUT HEX MACH SCREW

32 12E6

  • 12E6 - WASHER

33 1CM616

  • 1CM616 - SCREW HEX CAP
  • - Was 1C616

34 59CM1020

  • 59CM1020 - SCREW HX FLNG W/T8.8
  • - Was 29CM1020

35 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

36 43DM8

  • 43DM8 - NUT FLANGED HEX

37 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

38 58G610

  • 58G610 - SCREW PNH CRSEC TAP

39 87G610

  • 87G610 - SCREW

40 7134673

  • 7134673 - PLATE

41 6810157

  • 6810157 - SCREW

42 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

43 6670312

  • 6670312 - SWITCH
  • MAGNETIC

44 43DM6

  • 43DM6 - NUT FLANGED HEX

45 6707620

  • 6707620 - FUSE
  • 10A MINI 5
  • 10A

46 6707621

  • 6707621 - FUSE
  • 15A MINI 5
  • 15A

47 6707623

  • 6707623 - FUSE
  • 25A MINI 5
  • 25A

48 30H69

  • 30H69 - CLAMP
  • INSULATED

49 6665358

  • 6665358 - COVER
  • FUSE

50 6675928

  • 6675928 - RELAY

51 6679027

  • 6679027 - CLAMP GAUGE

52 7255121

  • 7255121 - PLATE

53 15EM60

  • 15EM60 - WASHER

54 17EM60

  • 17EM60 - WASHER

55 1CM625

  • 1CM625 - BOLT
