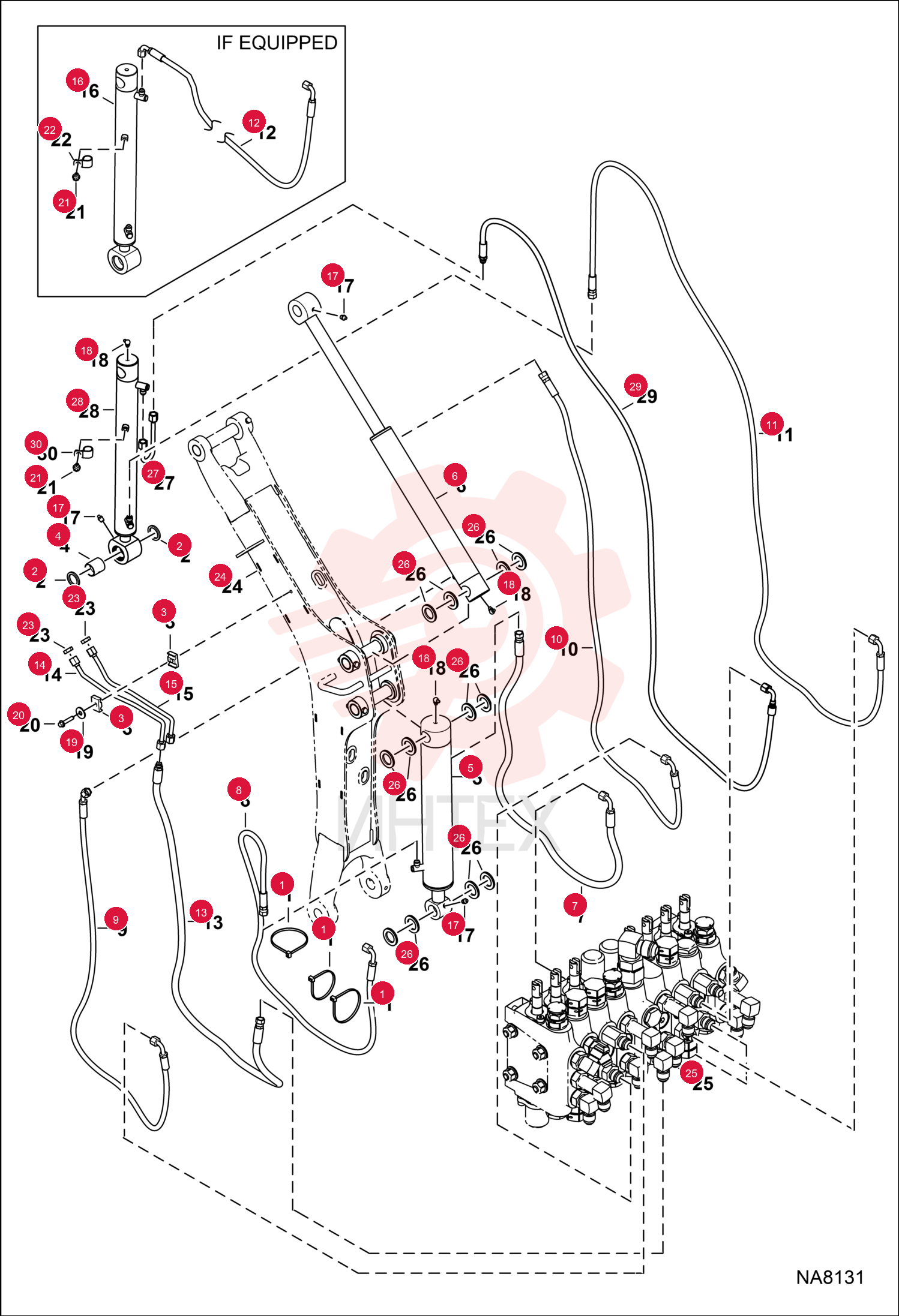

STRAP, TIE 6624289 (3)

STRAP, TIE 6624289 (3)

STRAP, TIE 6624289 (3)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6653534

  • 6653534 - SEAL
  • OIL 5

3 7115645

  • 7115645 - CLAMP
  • Was 6726277

4 6804060

  • 6804060 - BUSHING

5 7144751

  • 7144751 - HOSE ASSY

6 7144752

  • 7144752 - HOSE ASSY

7 7144753

  • 7144753 - HOSE ASSY

8 7144754

  • 7144754 - HOSE ASSY

9 7144755

  • 7144755 - HOSE ASSY

10 7281526

  • 7281526 - HOSE
  • HYD ASSY
  • Was 7144756

11 7144757

  • 7144757 - HOSE ASSY

12 7144759

  • 7144759 - TUBELINE

13 10H25

  • 10H25 - FTG GREASE STRAIGHT

14 12H15

  • 12H15 - FTG GREASE 90
  • Was 12H25

15 17EM100

  • 17EM100 - WASHER

16 26GM8040

  • 26GM8040 - SCREW SELF TAPPING

17 29CM812

  • 29CM812 - BOLT

18 30H65

  • 30H65 - CLIP

19 86F5

  • 86F5 - NUT

20 6533856

  • 6533856 - SHIM 5

21 7333270

  • 7333270 - TUBELINE HYDRAULIC

22 7310235

  • 7310235 - HOSE HYDRAULIC ASSY

23 31H31

  • 31H31 - CLIP
