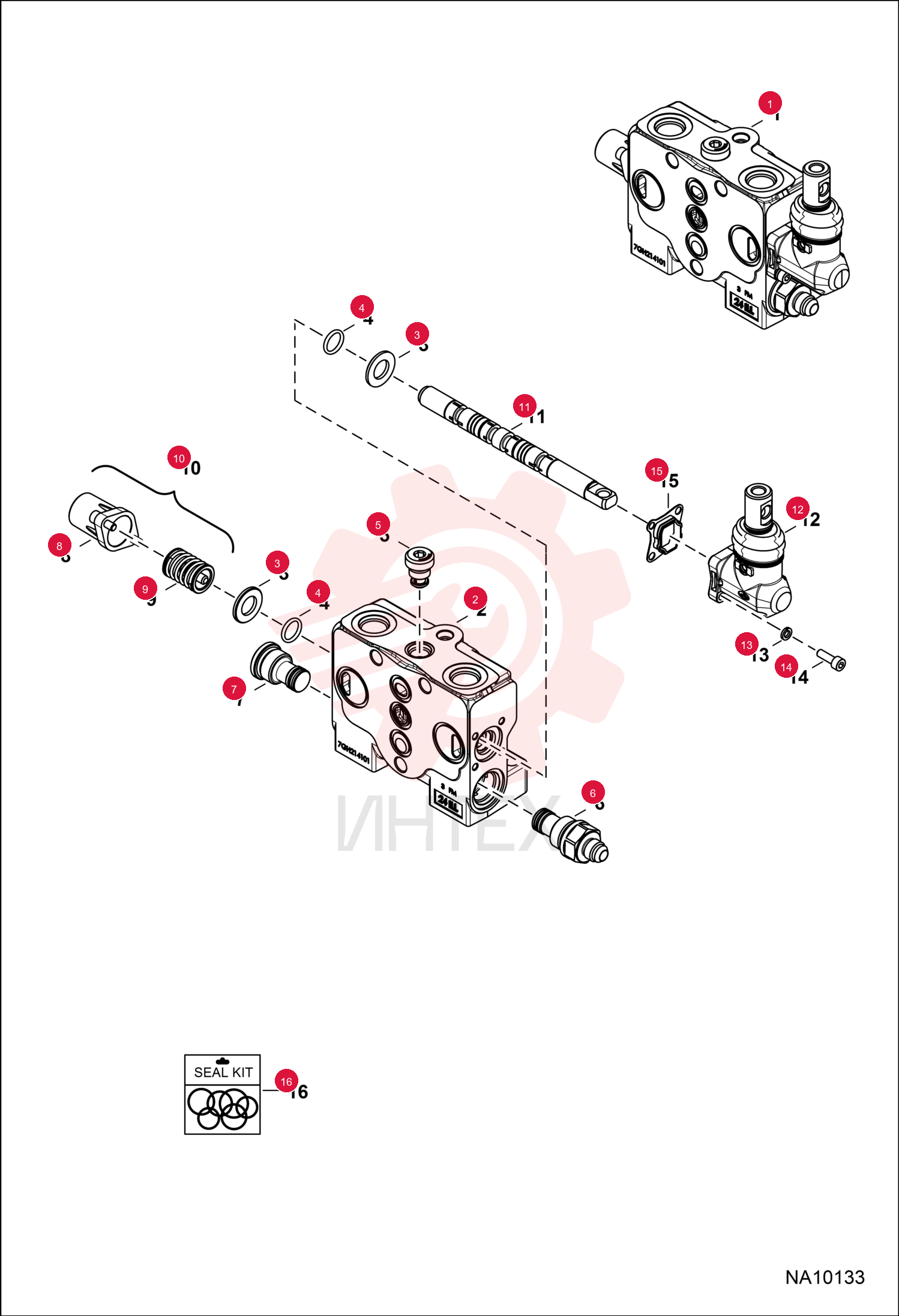

SECTION, VALVE 7259700 (3)

SECTION, VALVE 7259700 (3)

SECTION, VALVE 7259700 (3)

1 7259700

  • 7259700 - SECTION
  • VALVE
  • Ref. 2-15

2 7259719

  • 7259719 - SECTION
  • VALVE OUTLET

3 6680095

  • 6680095 - WASHER

4 6680094

  • 6680094 - O-RING

5 6680092

  • 6680092 - VALVE
  • LOCK LOAD

6 7259659

  • 7259659 - VALVE
  • RELIEF PORT

7 6680057

  • 6680057 - PLUG ASSEMBLY

8 6679496

  • 6679496 - END CAP

9 7015392

  • 7015392 - SPRING ASSEMBLY

10 6693138

  • 6693138 - KIT
  • CAP
  • Ref. 8 & 9

11 7259687

  • 7259687 - SPOOL

12 7266099

  • 7266099 - KIT
  • SECTION
  • W/Ref. 13-15

13 7310370

  • 7310370 - GASKET COVER

14 7259709

  • 7259709 - KIT
  • SEAL
