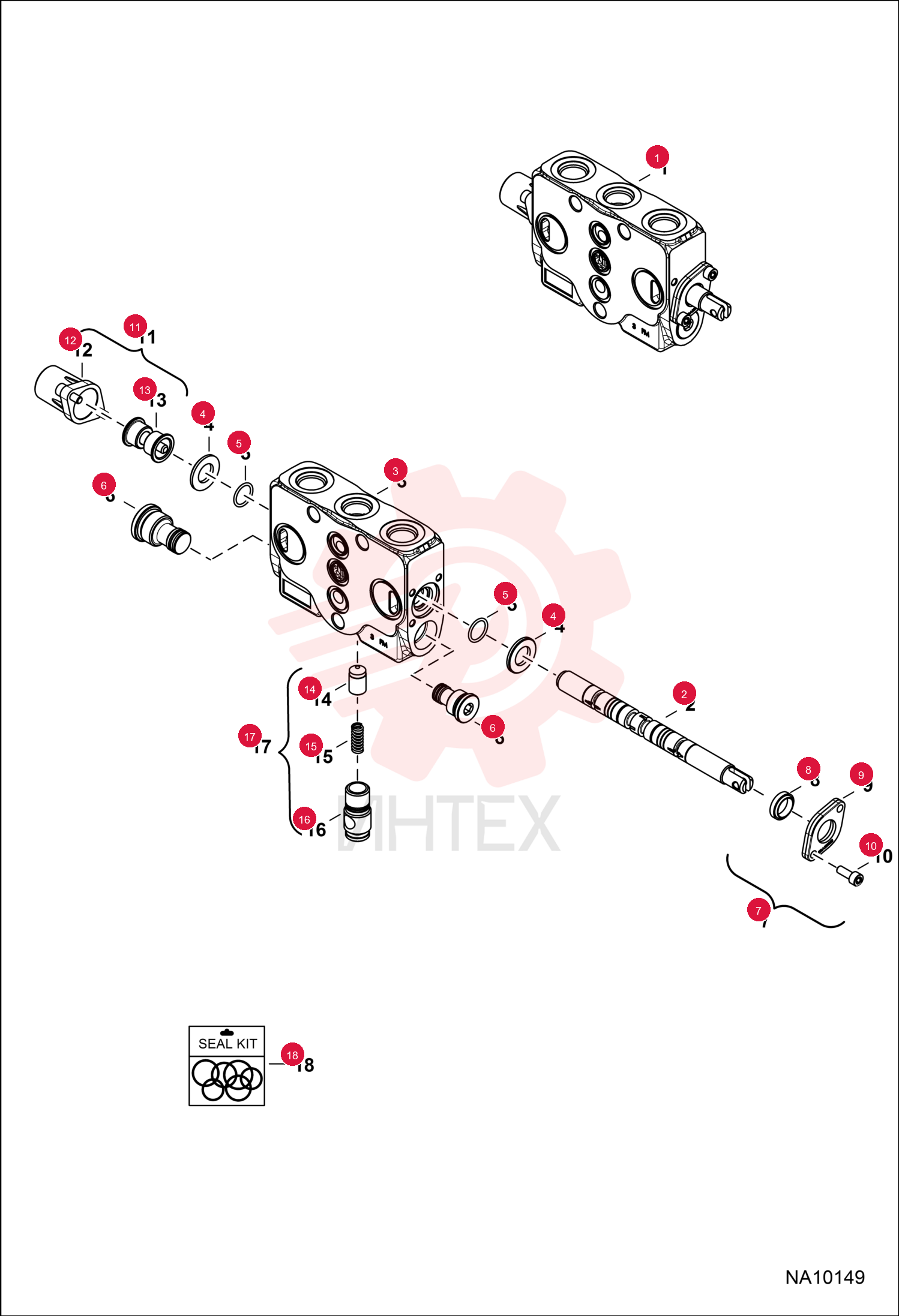

SECTION, VALVE 7260126 (1)

SECTION, VALVE 7260126 (1)

SECTION, VALVE 7260126 (1)

1 7260126

  • 7260126 - SECTION
  • VALVE
  • Ref. 2-20

2 6693127

  • 6693127 - A101/SDS100 322J AUX SPOOL

3 7261003

  • 7261003 - KIT
  • VALVE

4 6680095

  • 6680095 - WASHER

5 6680094

  • 6680094 - O-RING

6 6680092

  • 6680092 - VALVE
  • LOCK LOAD

7 6680097

  • 6680097 - COVER
  • END
  • Ref. 12-14

8 6679912

  • 6679912 - SEAL

9 6679911

  • 6679911 - FLANGE

10 6680071

  • 6680071 - SCREW

11 6680068

  • 6680068 - KIT
  • CAP
  • Ref. 16 & 17

12 6679496

  • 6679496 - END CAP

13 7015356

  • 7015356 - SPRING ASSEMBLY

14 7266098

  • 7266098 - KIT
  • SECTION
  • Ref. 14-17

15 7260130

  • 7260130 - KIT
  • SEAL
