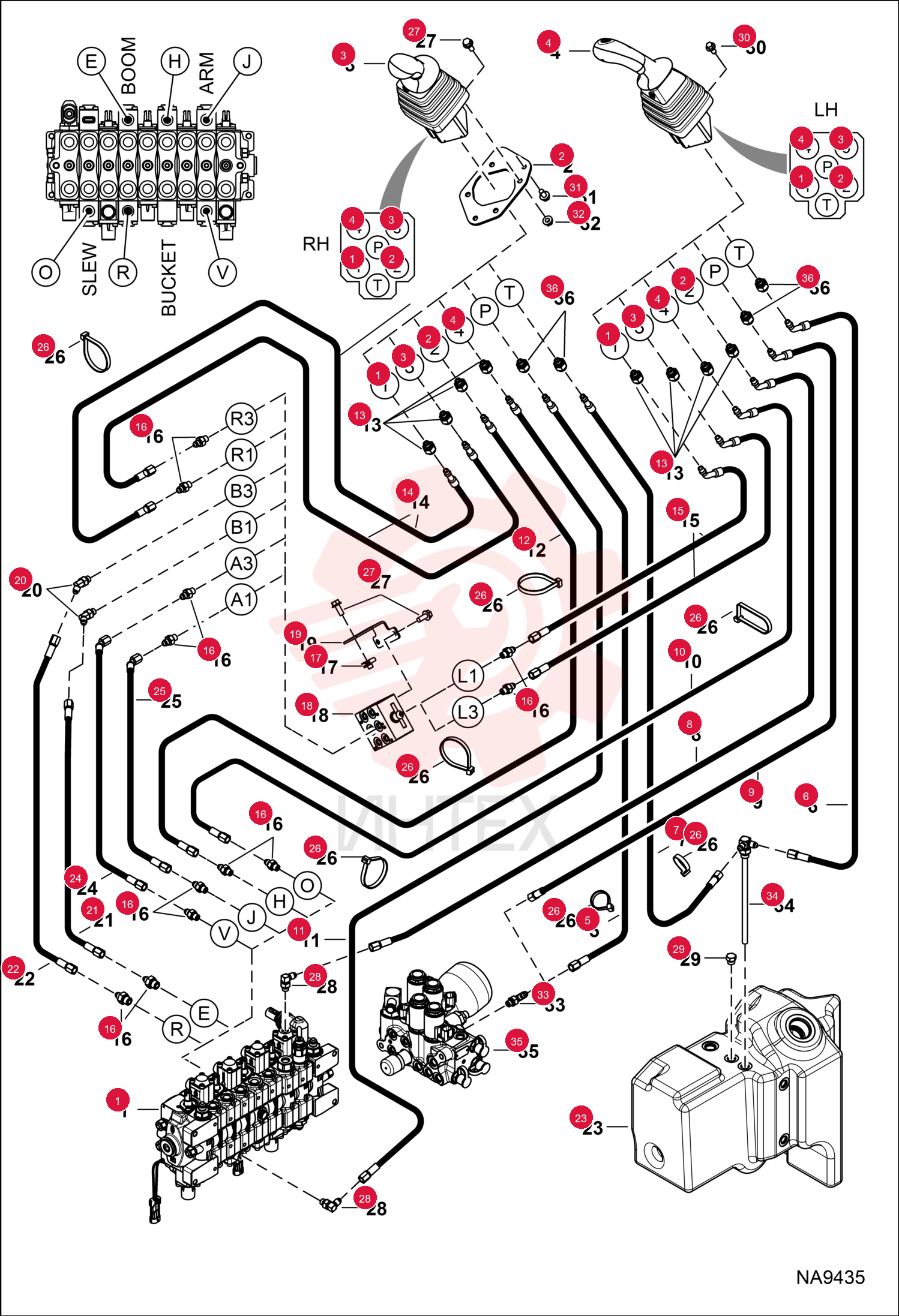

PLATE 7218028 (4)

PLATE 7218028 (4)

PLATE 7218028 (4)

1 7218028

  • 7218028 - PLATE

2 7220730

  • 7220730 - JOYSTICK
  • RH
  • - manual controls

3 7220731

  • 7220731 - JOYSTICK
  • LH
  • - manual controls

4 7221986

  • 7221986 - HOSE
  • HYD

5 7221987

  • 7221987 - HOSE
  • HYD ASSY

6 7222467

  • 7222467 - HOSE
  • HYD ASSY

7 7222468

  • 7222468 - HOSE
  • HYD ASSY

8 7222469

  • 7222469 - HOSE
  • HYD ASSY

9 7222475

  • 7222475 - HOSE
  • HYD

10 7222476

  • 7222476 - HOSE
  • HYD

11 7222477

  • 7222477 - HOSE
  • HYD

12 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

13 78K4

  • 78K4 - O'RING

14 7011053

  • 7011053 - CLIP

15 7344615

  • 7344615 - CAP PLASTIC

16 7221982

  • 7221982 - HOSE
  • HYD

17 7221984

  • 7221984 - HOSE
  • HYD

18 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

19 79K4

  • 79K4 - O RING 10

20 6676169

  • 6676169 - NUT

21 7238401

  • 7238401 - BRACKET

22 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW

23 79K4

  • 79K4 - O RING 10

24 7222473

  • 7222473 - HOSE
  • HYD

25 7222471

  • 7222471 - HOSE
  • HYD

26 7221862

  • 7221862 - TANK
  • HYD

27 7222472

  • 7222472 - HOSE
  • HYD

28 79K6

  • 79K6 - O RING 10

29 7222474

  • 7222474 - HOSE
  • HYD

30 6624289

  • 6624289 - STRAP
  • TIE

31 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

32 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

33 79K4

  • 79K4 - O RING 10

34 24K5

  • 24K5 - PLUG

35 79K6

  • 79K6 - O RING 10

36 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

37 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

38 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

39 79K4

  • 79K4 - O RING 10

40 21KB0404

  • 21KB0404 - FITTING
  • HYD TEE

41 7240072

  • 7240072 - FITTING
  • CROSS

42 79K6

  • 79K6 - O RING 10

43 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

44 78K4

  • 78K4 - O'RING

45 7011053

  • 7011053 - CLIP

46 7344615

  • 7344615 - CAP PLASTIC

47 7319693

  • 7319693 - FITTING HYDRAULIC STRAIGHT
  • EMEA only
