Bobcat
/
E20
/

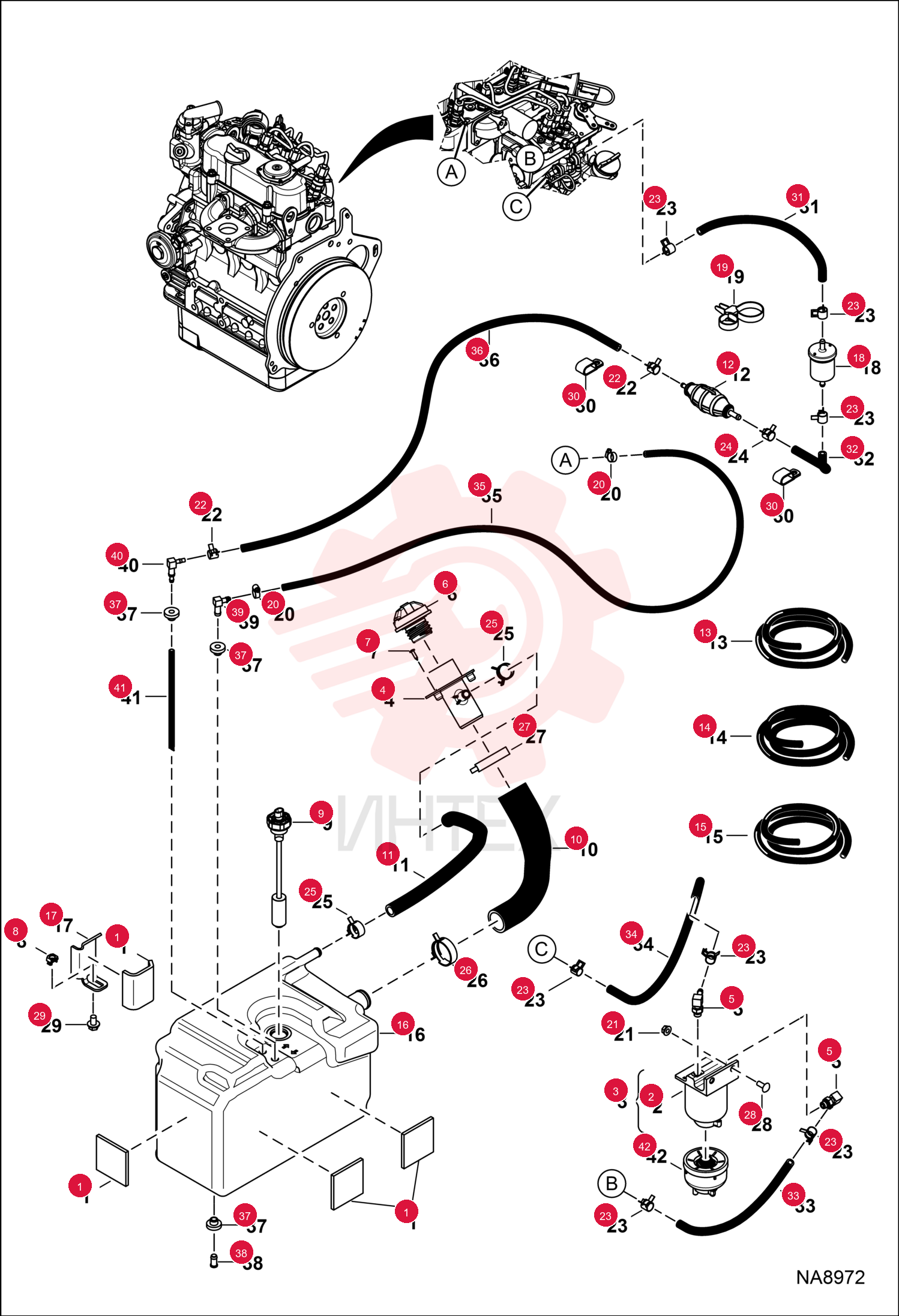

BUMP.PAD 6578278 (1)

BUMP.PAD 6578278 (1)

BUMP.PAD 6578278 (1)

1 6578278

  • 6578278 - BUMP.PAD

2 6667352

  • 6667352 - FILTER
  • FUEL W/SEPARATOR 12
  • Was 6683139

3 6667353

  • 6667353 - FILTER
  • FUEL ASSY

4 6701449

  • 6701449 - FLR.TUBE

5 6715183

  • 6715183 - ELBOW 90 STRTHD TUBE

6 7023550

  • 7023550 - CAP
  • DIESEL LOCKING

7 7106279

  • 7106279 - SCREW

8 7155411

  • 7155411 - NUT

9 7287030

  • 7287030 - SENSOR
  • FUEL
  • Was 7179838

10 7218071

  • 7218071 - HOSE
  • FUEL FORMED

11 7218475

  • 7218475 - HOSE
  • AIR FORMED

12 7219755

  • 7219755 - PUMP
  • PRIMER HAND
  • (1) barbed fitting for 6
  • 35 mm (.25") ID hose & (1) barbed fitting for 7
  • 94 mm (.3125") ID hose

13 6577821

  • 6577821 - HOSE
  • BULK
  • sold per foot

14 6578169

  • 6578169 - HOSE BULK
  • sold per foot

15 6577822

  • 6577822 - HOSE BULK
  • sold per foot

16 7224391

  • 7224391 - TANK FUEL ASSEMBLY
  • W/Ref. 1 & 37-41

17 7230494

  • 7230494 - BRACKET
  • TANK FUEL

18 6683101

  • 6683101 - ASSEMBLY FILTER FUEL
  • Was 7247169

19 7249702

  • 7249702 - STRAP
  • TIE DUAL

20 42HS04

  • 42HS04 - CLAMP HOSE TYPE M

21 43DM8

  • 43DM8 - NUT FLANGED HEX

22 5HM13

  • 5HM13 - CLAMP CT HOSE

23 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

24 5HM14

  • 5HM14 - HOSE CLMP CONST TENS
  • Was 5HM15

25 5HM24

  • 5HM24 - CLAMP

26 5HM44

  • 5HM44 - CLAMP

27 5HM58

  • 5HM58 - CLAMP

28 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

29 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

30 31H31

  • 31H31 - CLIP

31 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

32 6599645

  • 6599645 - PLUG
  • STEEL

33 6630041

  • 6630041 - ELBOW 90 BARBED

34 7213028

  • 7213028 - FITTING
  • ELBOW

35 7208233

  • 7208233 - TUBE
  • FUEL

36 7167163

  • 7167163 - BOWL
  • FUEL
  • optional

37 7177212

  • 7177212 - GASKET
