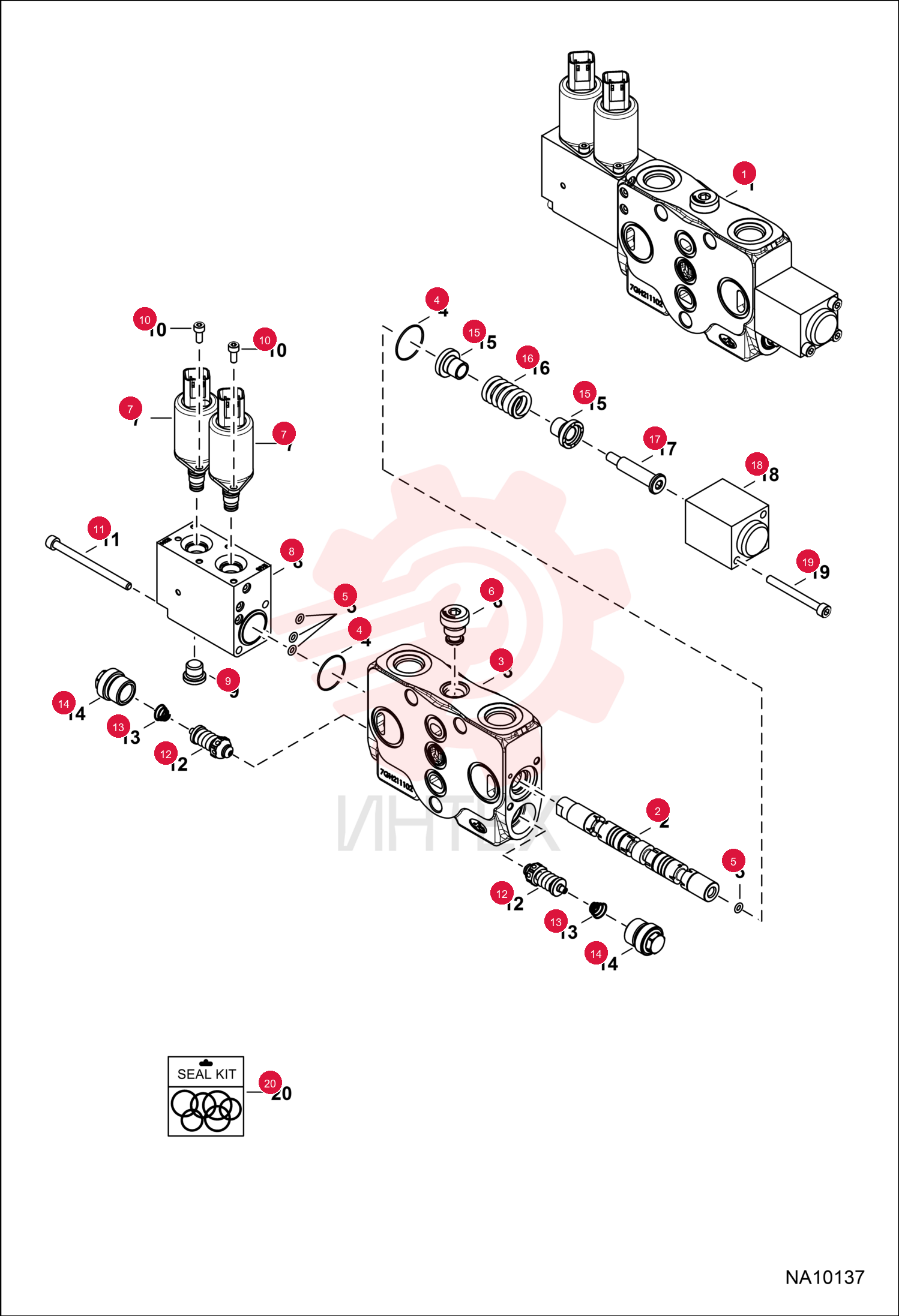

SECTION, VALVE 7259860 (2)

SECTION, VALVE 7259860 (2)

SECTION, VALVE 7259860 (2)

1 7259860

  • 7259860 - SECTION
  • VALVE
  • Ref. 2-19

2 7259713

  • 7259713 - SPOOL

3 7259716

  • 7259716 - SECTION
  • VALVE

4 7259722

  • 7259722 - O-RING

5 6680092

  • 6680092 - VALVE
  • LOCK LOAD

6 7232745

  • 7232745 - VALVE
  • PROPORTIONAL
  • Was 7010626

7 7369457

  • 7369457 - KIT SEAL

8 7259712

  • 7259712 - CAP
  • END

9 6686236

  • 6686236 - PLUG

10 6682230

  • 6682230 - SCREW

11 7022971

  • 7022971 - BOLT
  • Was 7259725

12 7015358

  • 7015358 - SPOOL

13 7015357

  • 7015357 - SPRING

14 6686241

  • 6686241 - PLUG

15 7259727

  • 7259727 - BUSHING

16 7259720

  • 7259720 - SPRING

17 7259721

  • 7259721 - PIN

18 7259711

  • 7259711 - CAP
  • END

19 6682247

  • 6682247 - SCREW
  • Was 7259724

20 7259872

  • 7259872 - KIT
  • SEAL
