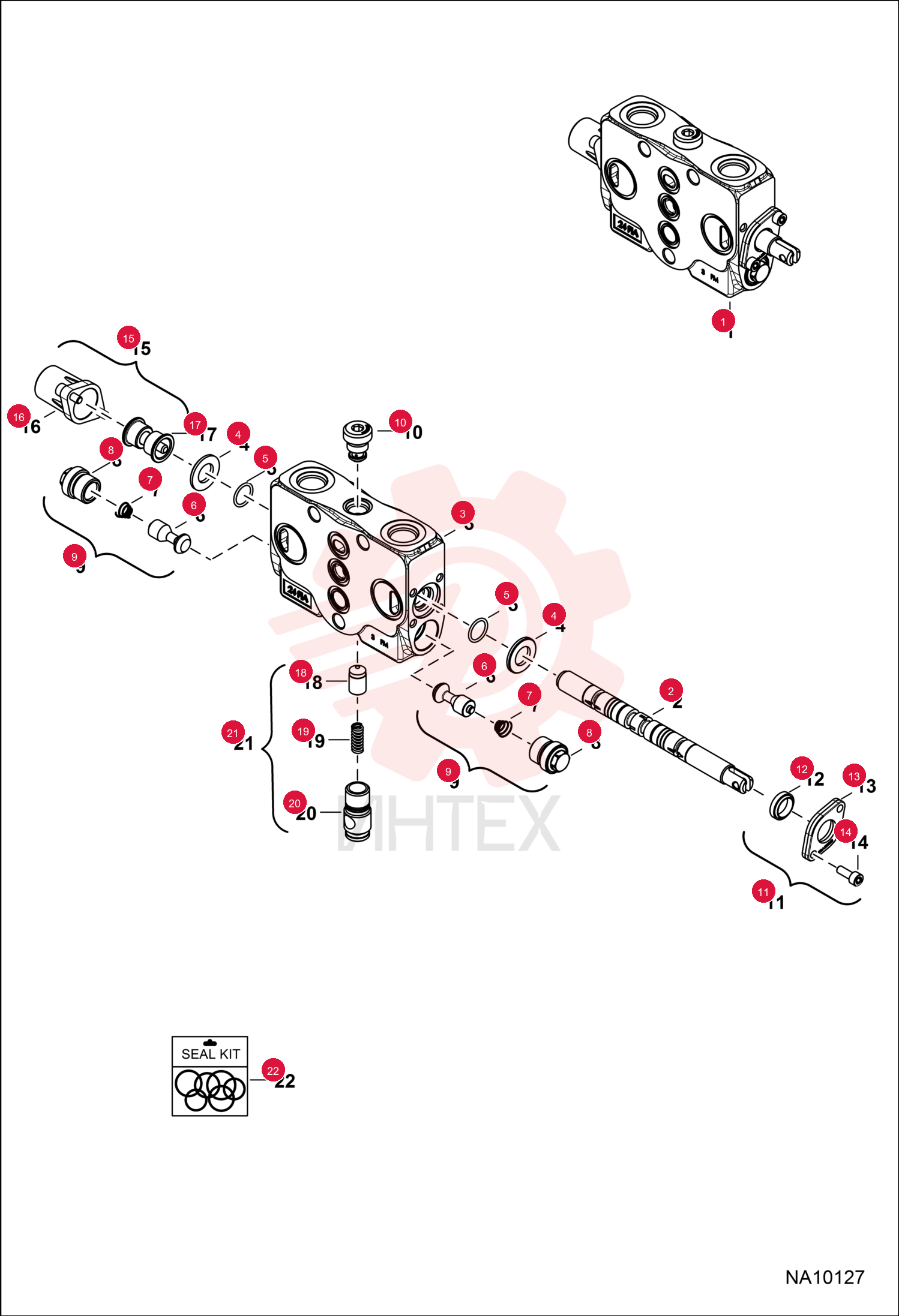

SECTION, VALVE 7259696 (2)

SECTION, VALVE 7259696 (2)

SECTION, VALVE 7259696 (2)

1 7259696

  • 7259696 - SECTION
  • VALVE
  • Ref. 2-21

2 7259689

  • 7259689 - SPOOL

3 7259678

  • 7259678 - SECTION
  • VALVE

4 6680095

  • 6680095 - WASHER

5 6680094

  • 6680094 - O-RING

6 7015357

  • 7015357 - SPRING

7 6686241

  • 6686241 - PLUG

8 6685776

  • 6685776 - KIT
  • VALVE
  • Ref. 6-8

9 6680092

  • 6680092 - VALVE
  • LOCK LOAD

10 6680097

  • 6680097 - COVER
  • END
  • Ref. 12-14

11 6679912

  • 6679912 - SEAL

12 6679911

  • 6679911 - FLANGE

13 6680071

  • 6680071 - SCREW

14 6680068

  • 6680068 - KIT
  • CAP
  • Ref. 16 & 17

15 6679496

  • 6679496 - END CAP

16 7015356

  • 7015356 - SPRING ASSEMBLY

17 7266098

  • 7266098 - KIT
  • SECTION
  • Ref. 18-20

18 7259705

  • 7259705 - KIT
  • SEAL
