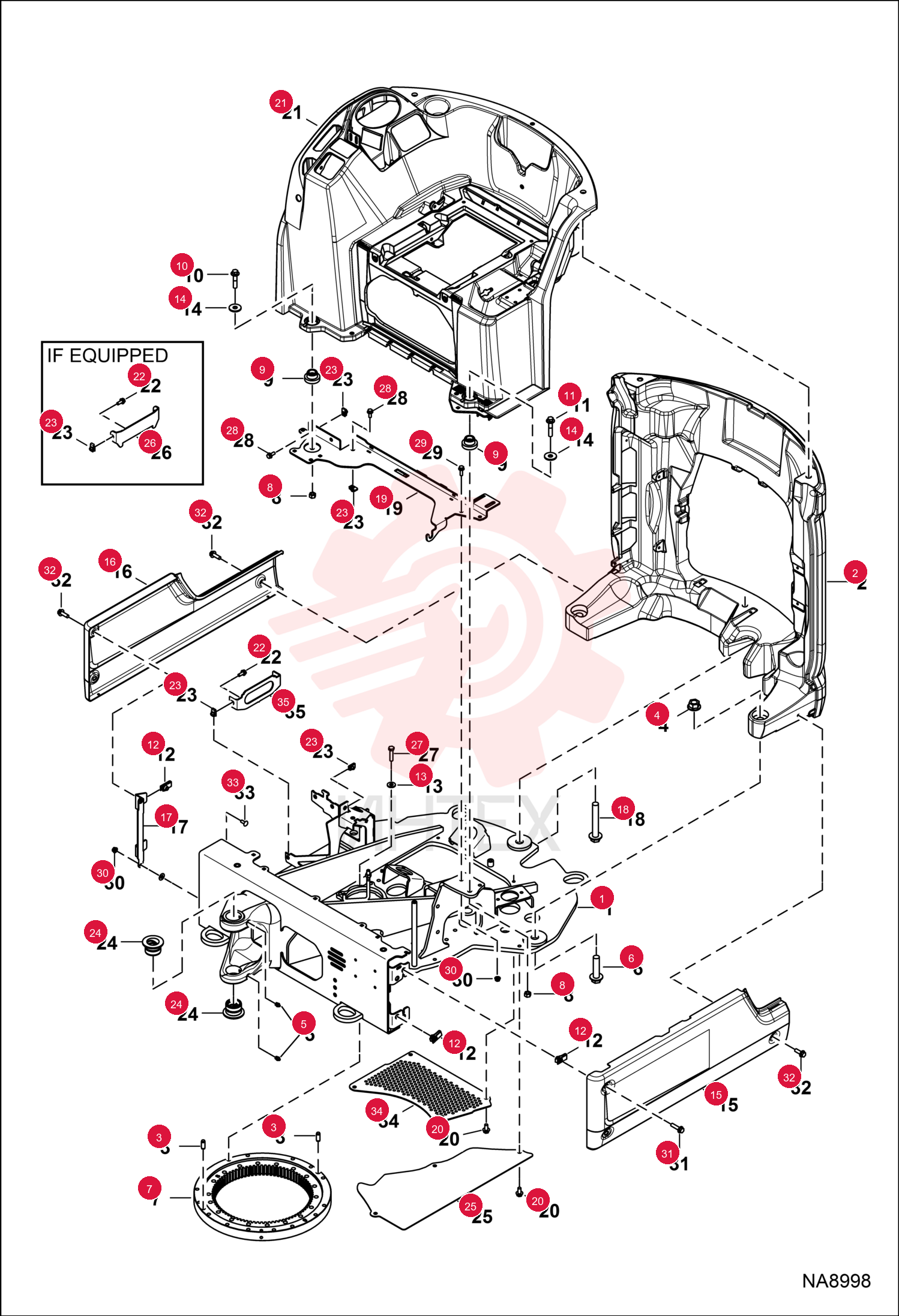

UPPERSTRUCTURE 7242820 (1)

UPPERSTRUCTURE 7242820 (1)

UPPERSTRUCTURE 7242820 (1)

1 7242820

  • 7242820 - UPPERSTRUCTURE
  • W/Ref. 8 & 30

2 7305685

  • 7305685 - UPPERSTRUCTURE

3 7277384

  • 7277384 - COUNTERWEIGHT
  • Was 7215486

4 23JM1232

  • 23JM1232 - PIN PARALLEL

5 43DM20

  • 43DM20 - NUT

6 10H25

  • 10H25 - FTG GREASE STRAIGHT

7 29CM2080

  • 29CM2080 - BOLT

8 7222567

  • 7222567 - BEARING SLEW

9 51DM12

  • 51DM12 - NUT
  • Was 7247402

10 7001052

  • 7001052 - MOUNT
  • ENG

11 29CM1250

  • 29CM1250 - BOLT

12 29CM1255

  • 29CM1255 - BOLT

13 6675722

  • 6675722 - NUT

14 27E6

  • 27E6 - WASHER HARDEN PLAIN

15 17EM120

  • 17EM120 - WASHER

16 7312346

  • 7312346 - CHANNEL LH
  • Was 7224394

17 7224395

  • 7224395 - CHANNEL
  • RH

18 7215474

  • 7215474 - MOUNT
  • CHANNEL

19 29CM20130

  • 29CM20130 - BOLT

20 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

21 7218002

  • 7218002 - BONNET
  • OPERATOR

22 6675859

  • 6675859 - RETAINER

23 6676169

  • 6676169 - NUT

24 7182633

  • 7182633 - INSERT SWING

25 7225548

  • 7225548 - PLATE
  • VALVE

26 7222372

  • 7222372 - BRACKET
  • BATTERY

27 56CM1045

  • 56CM1045 - SCREW

28 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

29 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

30 43DM8

  • 43DM8 - NUT FLANGED HEX
  • weld-on

31 29CM1040

  • 29CM1040 - SCREW

32 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

33 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

34 7280353

  • 7280353 - COVER ENGINE

35 7270246

  • 7270246 - PLATE BATTERY
