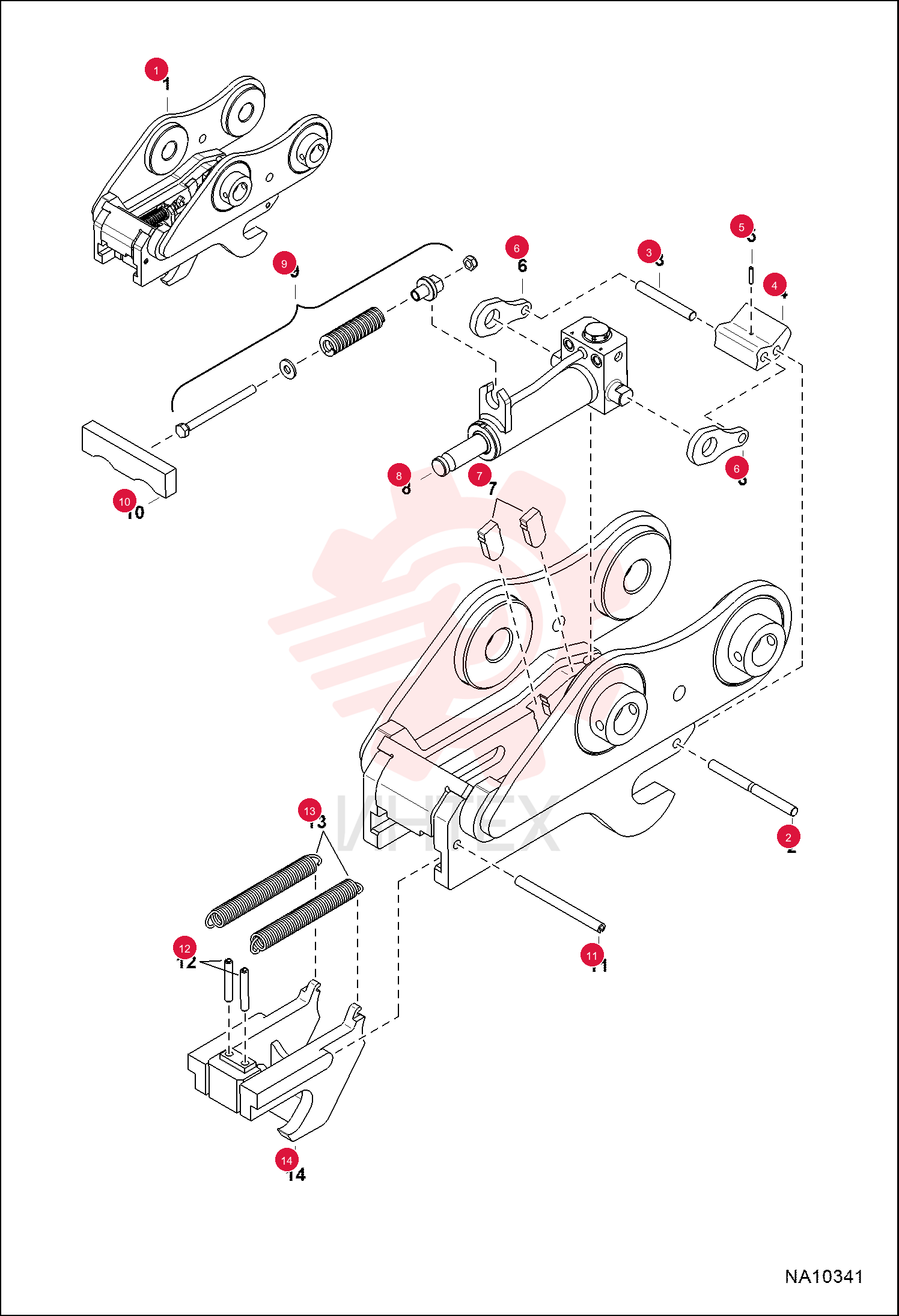

COUPLER GEITH QC35 7243882 (3)

COUPLER GEITH QC35 7243882 (3)

COUPLER GEITH QC35 7243882 (3)

1 7243882

  • 7243882 - COUPLER GEITH QC35
  • Ref. 2-14

2 7266705

  • 7266705 - PIN
  • LOCK

3 7266706

  • 7266706 - PIN
  • LOCK

4 7266707

  • 7266707 - LOCK

5 7266708

  • 7266708 - PIN
  • ROLL

6 7266709

  • 7266709 - LINK

7 7266710

  • 7266710 - STOP

8 7266712

  • 7266712 - CYLINDER
  • HYD CLAMP

9 7266713

  • 7266713 - SPRING ASSEMBLY

10 7266714

  • 7266714 - BRACKET
  • STOP

11 7266717

  • 7266717 - PIN
  • ROLL

12 7266718

  • 7266718 - PIN
  • ROLL

13 7266719

  • 7266719 - SPRING
  • EXTENSION

14 7266720

  • 7266720 - WEDGE
