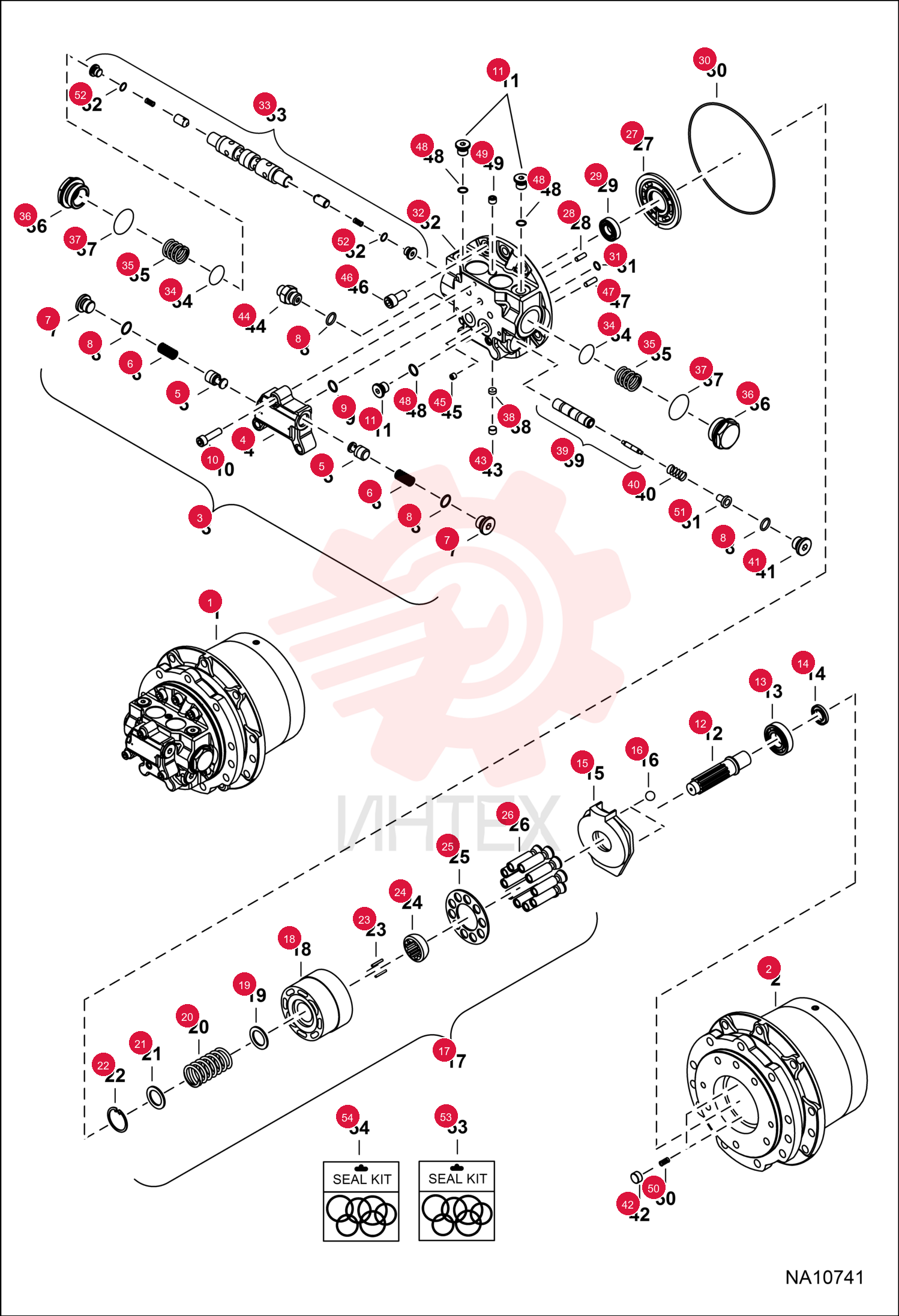

MOTOR, TRAVEL 7253997

MOTOR, TRAVEL 7253997

MOTOR, TRAVEL 7253997

1 7253997

  • 7253997 - MOTOR
  • TRAVEL

2 7274583

  • 7274583 - GEARBOX

3 7009203

  • 7009203 - VALVE ASSY
  • Includes Ref. 4-10

4 7009198

  • 7009198 - O-RING

5 7009205

  • 7009205 - BOLT

6 7009179

  • 7009179 - PLUG

7 7009181

  • 7009181 - SHAFT

8 7009182

  • 7009182 - BEARING
  • BALL

9 7009184

  • 7009184 - PLATE
  • SWASH

10 7009185

  • 7009185 - BALL
  • STEEL

11 7274582

  • 7274582 - KIT
  • CYLINDER BLOCK
  • Includes Ref. 18-26

12 7009188

  • 7009188 - PLATE
  • VALVE

13 7009191

  • 7009191 - SEAT
  • SPRING

14 7009192

  • 7009192 - SPRING

15 7009193

  • 7009193 - CAP

16 7009195

  • 7009195 - ORIFICE

17 7009196

  • 7009196 - SPRING

18 7009197

  • 7009197 - PLUG

19 7009186

  • 7009186 - PISTON
  • Was 7009187

20 7009199

  • 7009199 - PLUG

21 7009200

  • 7009200 - PLUG

22 7009201

  • 7009201 - BOLT

23 7009202

  • 7009202 - PIN

24 7009180

  • 7009180 - O-RING

25 7009163

  • 7009163 - PLUG

26 7009187

  • 7009187 - SPRING
  • Was 7009186

27 7009206

  • 7009206 - PLUG

28 6670221

  • 6670221 - O-RING
  • Was 6657167

29 7009213

  • 7009213 - SEAL KIT
  • - Ref. 2
  • 21 & 25 - Also includes Ref. 8
  • 9
  • 14
  • 30
  • 31
  • 37
  • 48 & 52 on this page

30 7274581

  • 7274581 - KIT
  • BASE PLATE
  • Includes Ref. 32
  • 33
  • 39 & 50
