Bobcat
/
E26
/

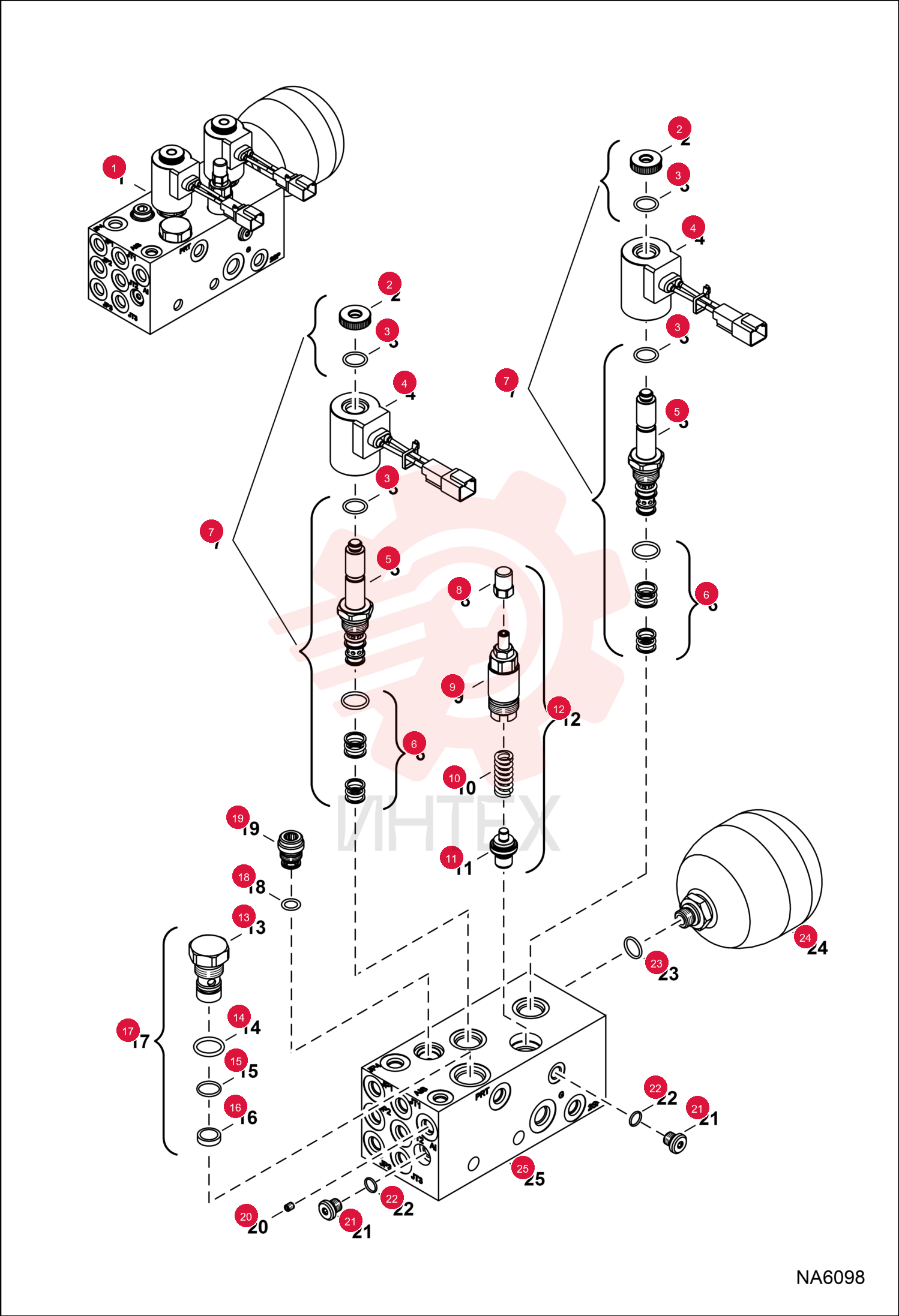

MANIFOLD, HYD ASSY 7204476 (3)

MANIFOLD, HYD ASSY 7204476 (3)

MANIFOLD, HYD ASSY 7204476 (3)

1 7204476

  • 7204476 - MANIFOLD
  • HYD ASSY
  • Ref. 2-25

2 6679076

  • 6679076 - NUT

3 7010625

  • 7010625 - COIL
  • SOLENOID

4 6679078

  • 6679078 - KIT
  • SEAL

5 6678988

  • 6678988 - ASSY
  • VALVE
  • does not include Ref. 4

6 7010629

  • 7010629 - VALVE
  • RELIEF

7 7022942

  • 7022942 - PLUG

8 7010628

  • 7010628 - O-RING

9 6678990

  • 6678990 - VALVE
  • CHECK
  • W/Ref. 18

10 7022943

  • 7022943 - ORIFICE

11 6678993

  • 6678993 - PLUG
  • W/Ref. 22

12 79K6

  • 79K6 - O RING 10

13 6669537

  • 6669537 - ACCUMULATOR
