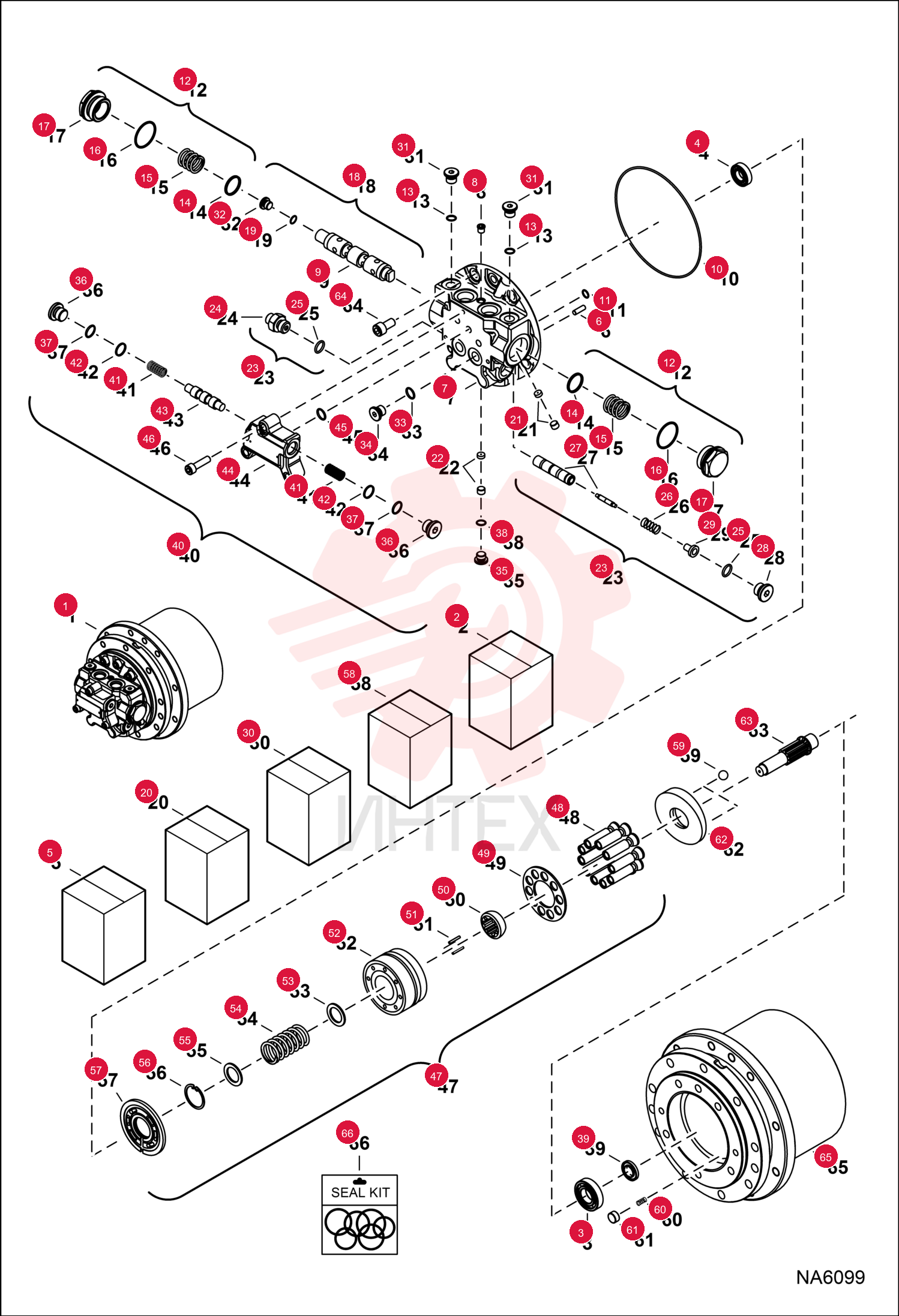

MOTOR, DRIVE HYD TRAVEL 7190517 (2)

MOTOR, DRIVE HYD TRAVEL 7190517 (2)

MOTOR, DRIVE HYD TRAVEL 7190517 (2)

1 7190517

  • 7190517 - MOTOR
  • DRIVE HYD TRAVEL
  • Ref. 2-66

2 7022826

  • 7022826 - BEARING
  • MOTOR TRAVEL
  • Ref. 3 & 4

3 7022815

  • 7022815 - HOUSING
  • ASSY
  • Ref. 6-8
  • 12
  • 20
  • & 23

4 7022816

  • 7022816 - VALVE
  • TRAVEL
  • Ref. 14-18

5 7022817

  • 7022817 - PLUNGER

6 7022818

  • 7022818 - ORIFICE
  • Ref. 21 & 22

7 7022819

  • 7022819 - KIT
  • SHIFT 2 SPEED
  • Ref
  • 24-29

8 7022820

  • 7022820 - KIT
  • PLUG
  • Ref. 13
  • 31
  • & 33-38

9 7022825

  • 7022825 - SEAL
  • RING

10 7022821

  • 7022821 - VALVE
  • ANTI-CAV
  • Ref. 36
  • 37
  • & 41-46

11 7022822

  • 7022822 - KIT
  • ROTARY GROUP
  • Ref. 48-57

12 7022823

  • 7022823 - SWASHPLATE
  • Ref. 59-62

13 7022824

  • 7022824 - SHAFT
  • MOTOR

14 7022814

  • 7022814 - SCREW

15 7022774

  • 7022774 - KIT
  • SEAL
  • Ref. 10
  • 11
  • 13
  • 16
  • 19
  • 25
  • 33
  • 37
  • 38
  • & 45
