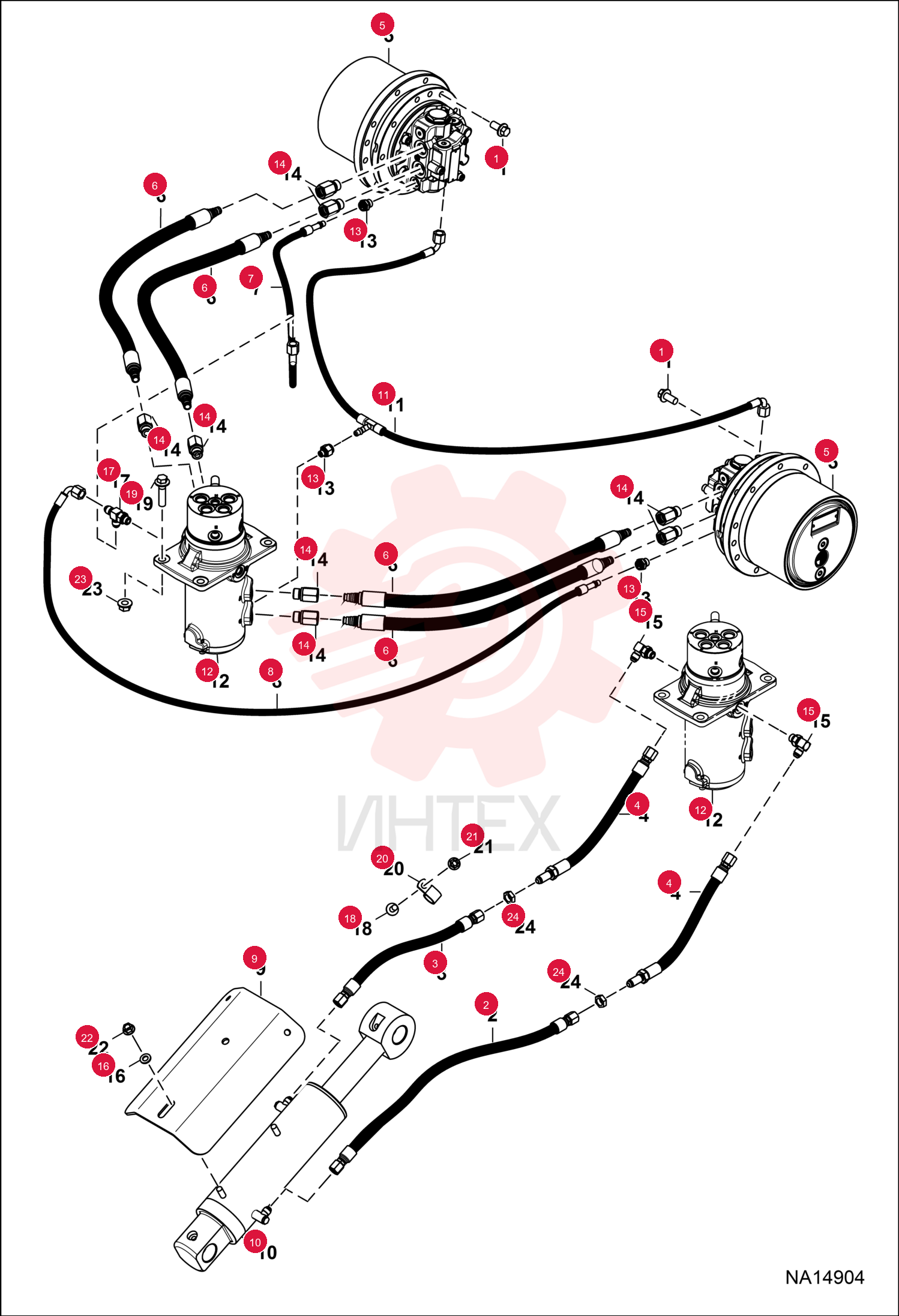

SCREW 7162236 (2)

SCREW 7162236 (2)

SCREW 7162236 (2)

1 7162236

  • 7162236 - SCREW

2 7350142

  • 7350142 - HOSE HYDRAULIC ASSY

3 7350143

  • 7350143 - HOSE HYDRAULIC ASSY

4 7350072

  • 7350072 - HOSE HYDRAULIC ASSY

5 7190517

  • 7190517 - MOTOR
  • DRIVE HYD TRAVEL

6 7297269

  • 7297269 - HOSE HYDRAULIC ASSY

7 7297273

  • 7297273 - HOSE HYDRAULIC ASSY

8 7297274

  • 7297274 - HOSE HYDRAULIC ASSY

9 7356361

  • 7356361 - SHIELD CYLINDER
  • Was 7301184

10 7302315

  • 7302315 - CYLINDER BLADE
  • blade

11 7310915

  • 7310915 - HOSE HYDRAULIC ASSY

12 7336125

  • 7336125 - SWIVEL HYDRAULIC

13 10L0606

  • 10L0606 - FITTING
  • HYD CONNECTOR

14 15HB0808

  • 15HB0808 - FITTING

15 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

16 1EM100

  • 1EM100 - WASHER PLAIN

17 21KB0606

  • 21KB0606 - FITTING
  • HYD TEE

18 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

19 29CM1250

  • 29CM1250 - BOLT

20 30H46

  • 30H46 - CLIP

21 43DM10

  • 43DM10 - NUT FLANGED HEX

22 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

23 51DM12

  • 51DM12 - NUT

24 86F5

  • 86F5 - NUT
