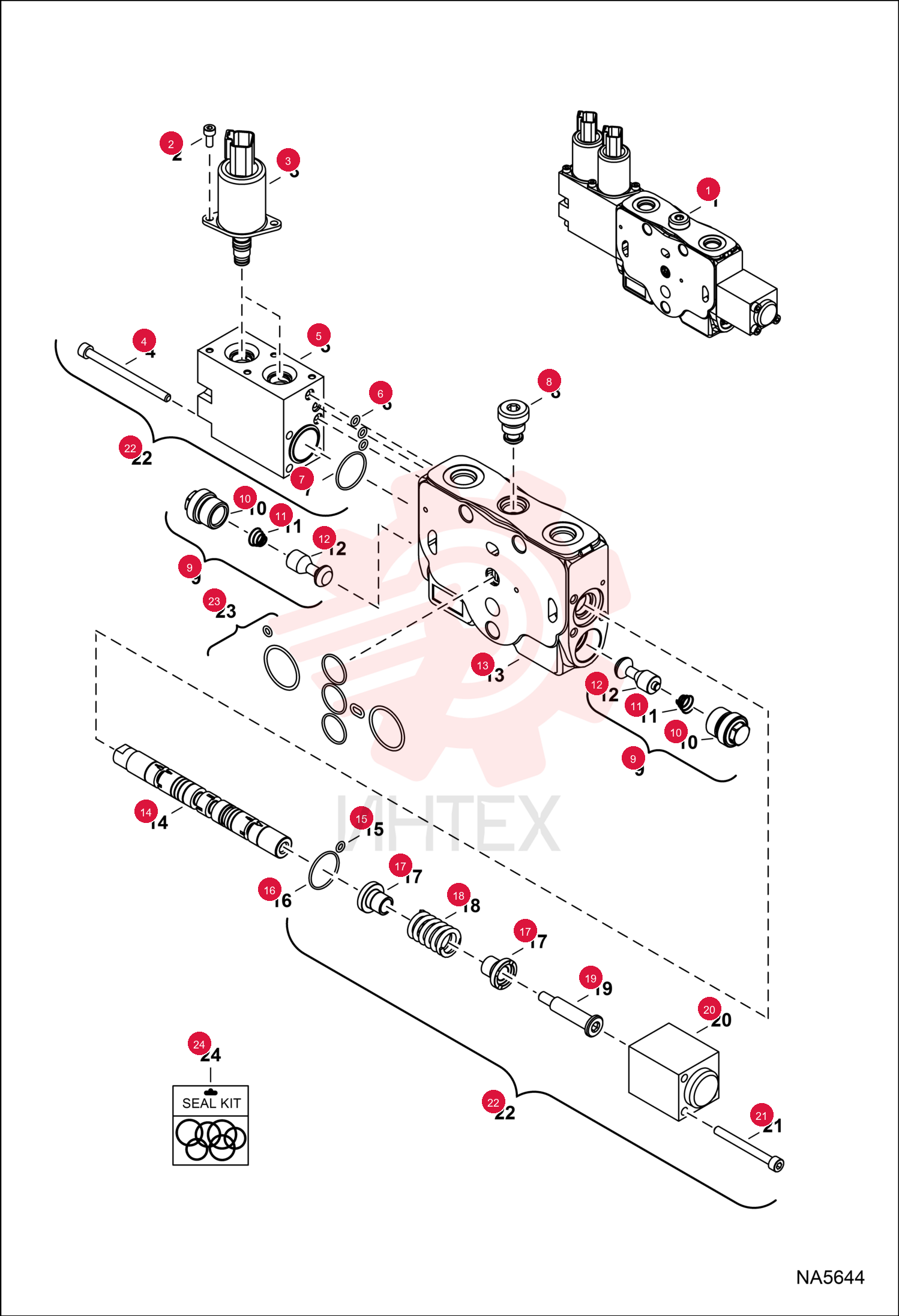

SECTION, VALVE 7022952 (1)

SECTION, VALVE 7022952 (1)

SECTION, VALVE 7022952 (1)

1 7022952

  • 7022952 - SECTION
  • VALVE
  • boom swing - Ref. 2-22

2 6682230

  • 6682230 - SCREW

3 7369457

  • 7369457 - KIT SEAL

4 7232745

  • 7232745 - VALVE
  • PROPORTIONAL
  • Was 7010626

5 7022971

  • 7022971 - BOLT
  • Was 7259725

6 6680092

  • 6680092 - VALVE
  • LOCK LOAD

7 6680247

  • 6680247 - ASSY
  • VALVE

8 6682247

  • 6682247 - SCREW

9 7022958

  • 7022958 - ACTUATOR
  • Ref. 2-7
  • & 15-21

10 7022980

  • 7022980 - KIT
  • SEAL
