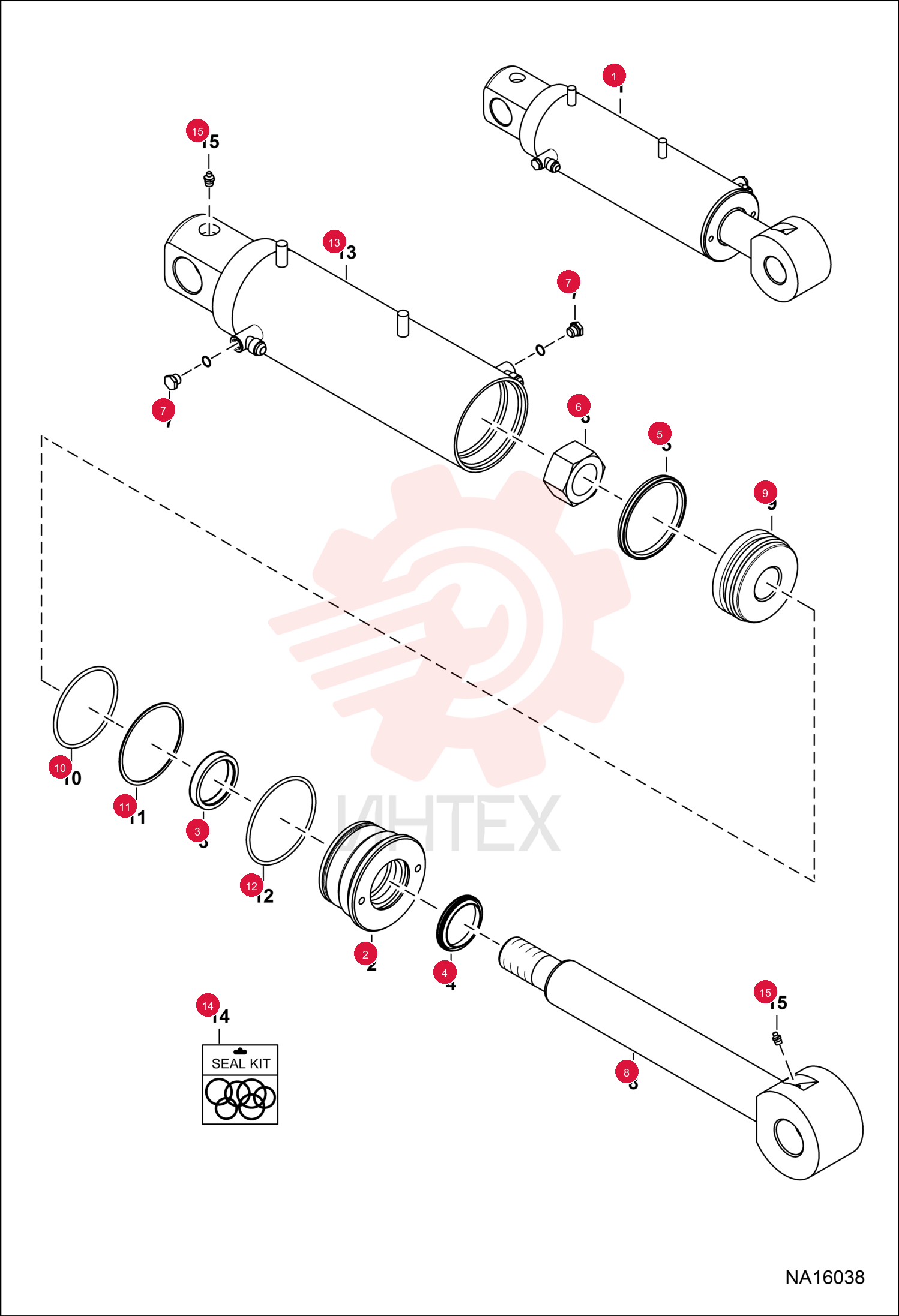

CYLINDER BLADE 7302315 (2)

CYLINDER BLADE 7302315 (2)

CYLINDER BLADE 7302315 (2)

1 7302315

  • 7302315 - CYLINDER BLADE
  • Ref. 2-13

2 6586570

  • 6586570 - HEAD

3 6667327

  • 6667327 - SEAL
  • ROD

4 6686999

  • 6686999 - WIPER
  • ROD CYL

5 6692326

  • 6692326 - SEAL
  • BP

6 6810540

  • 6810540 - NUT

7 6812170

  • 6812170 - PLUG

8 7164579

  • 7164579 - ROD
  • CYL

9 7166329

  • 7166329 - PISTON

10 54K40300

  • 54K40300 - O-RING

11 73K234

  • 73K234 - RING
  • BACK-UP

12 82K236

  • 82K236 - O-RING

13 7302362

  • 7302362 - TUBE CYLINDER HYDRAULIC

14 7147833

  • 7147833 - KIT
  • SEAL CYLINDER

15 10H25

  • 10H25 - FTG GREASE STRAIGHT
