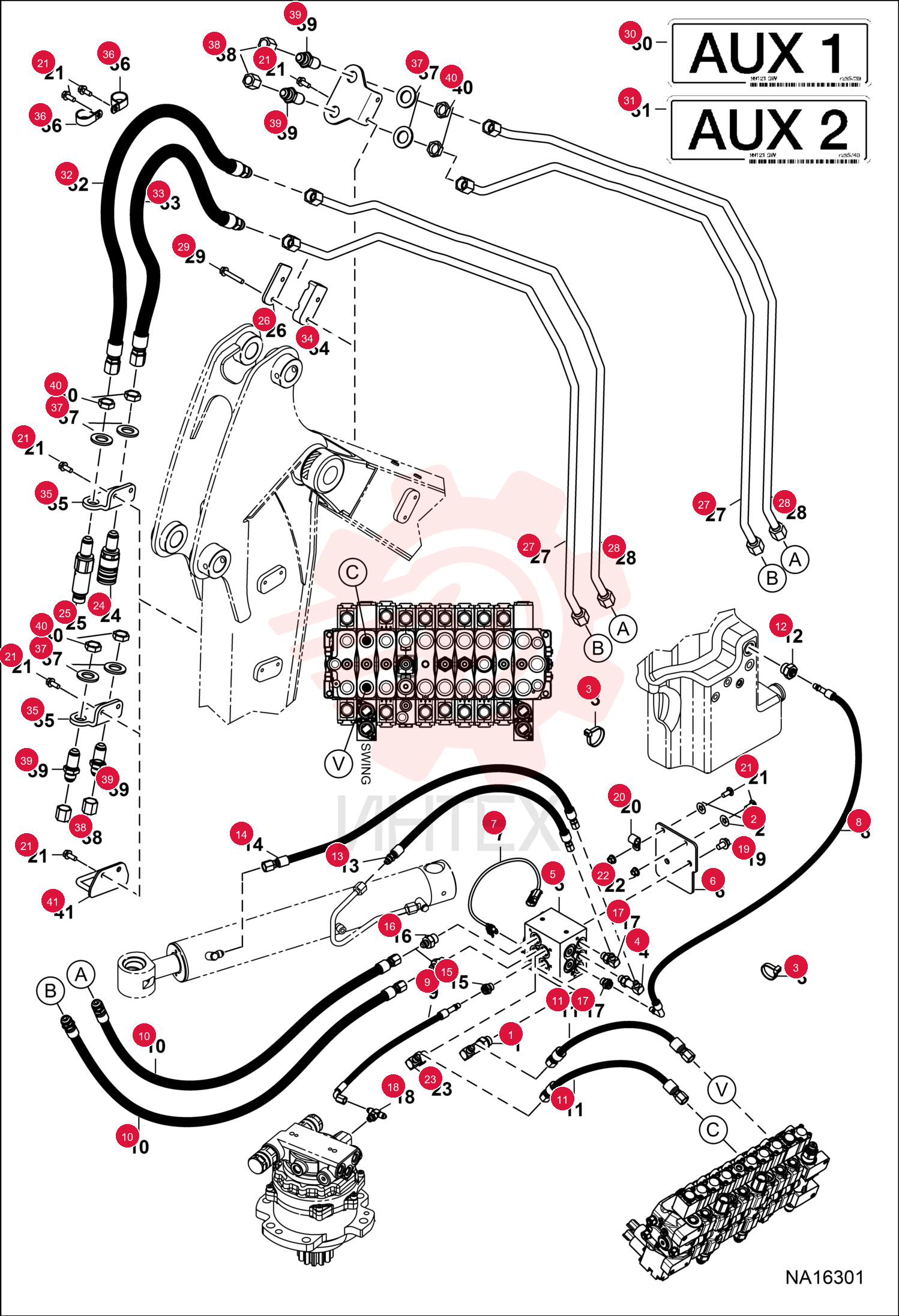

FITTING, HYD ELBOW 90 7269472 (1)

FITTING, HYD ELBOW 90 7269472 (1)

FITTING, HYD ELBOW 90 7269472 (1)

1 7269472

  • 7269472 - FITTING
  • HYD ELBOW 90

2 6675859

  • 6675859 - RETAINER

3 6624289

  • 6624289 - STRAP
  • TIE

4 79K6

  • 79K6 - O RING 10

5 6802867

  • 6802867 - ELBOW 90

6 7279969

  • 7279969 - VALVE
  • 2ND AUX

7 7189423

  • 7189423 - BRACKET

8 7193481

  • 7193481 - HARNESS
  • AUX SECONDARY

9 7322006

  • 7322006 - HOSE HYDRAULIC ASSY

10 7316638

  • 7316638 - HOSE HYDRAULIC ASSY

11 7316633

  • 7316633 - HOSE HYDRAULIC ASSY

12 7316499

  • 7316499 - HOSE HYDRAULIC ASSY

13 10L0610

  • 10L0610 - FITTING
  • HYD CONNECTOR

14 7331424

  • 7331424 - HOSE HYDRAULIC ASSY

15 7204142

  • 7204142 - HOSE
  • HYD

16 7011053

  • 7011053 - CLIP

17 78K6

  • 78K6 - O'RING

18 10L0606

  • 10L0606 - FITTING
  • HYD CONNECTOR

19 79K8

  • 79K8 - O RING 10

20 15KB0608

  • 15KB0608 - FITTING
  • HYD CONNECTOR

21 79K6

  • 79K6 - O RING 10

22 17KB0406

  • 17KB0406 - FITTING
  • HYD ELBOW

23 79K4

  • 79K4 - O RING 10

24 19KB0404

  • 19KB0404 - FITTING
  • HYD TEE

25 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

26 30H30

  • 30H30 - CLIP

27 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

28 43DM8

  • 43DM8 - NUT FLANGED HEX

29 17KB0608

  • 17KB0608 - FITTING
  • HYD ELBOW

30 7246794

  • 7246794 - COUPLER
  • FF FEMALE
  • Dash 10 size

31 7246780

  • 7246780 - COUPLER
  • FF MALE
  • Dash 10 size

32 7312679

  • 7312679 - PLATE AUXILIARY

33 7307752

  • 7307752 - TUBELINE HYDRAULIC
  • Boom only

34 7313399

  • 7313399 - TUBELINE HYDRAULIC

35 7307753

  • 7307753 - TUBELINE HYDRAULIC
  • Boom only

36 7313400

  • 7313400 - TUBELINE HYDRAULIC

37 29CM850

  • 29CM850 - SCREW

38 7295739

  • 7295739 - DECAL
  • AUX 1ST

39 7295740

  • 7295740 - DECAL
  • AUX 2ND

40 7335471

  • 7335471 - HOSE HYDRAULIC ASSY

41 7322600

  • 7322600 - HOSE HYDRAULIC ASSY
  • Long arm

42 7322601

  • 7322601 - HOSE HYDRAULIC ASSY
  • Long arm

43 7335472

  • 7335472 - HOSE HYDRAULIC ASSY

44 7315832

  • 7315832 - BRACKET TUBELINE

45 7326256

  • 7326256 - PLATE AUXILIARY

46 30H57

  • 30H57 - CLAMP

47 18EM2444

  • 18EM2444 - WASHER SUPPORT
  • Dash 10 size

48 36K7

  • 36K7 - FITTING
  • Dash 10 size

49 45K7

  • 45K7 - CONNECTR
  • Dash 10 size

50 86F7

  • 86F7 - NUT 5
  • Dash 10 size

51 7242179

  • 7242179 - PLATE
  • Boom only
