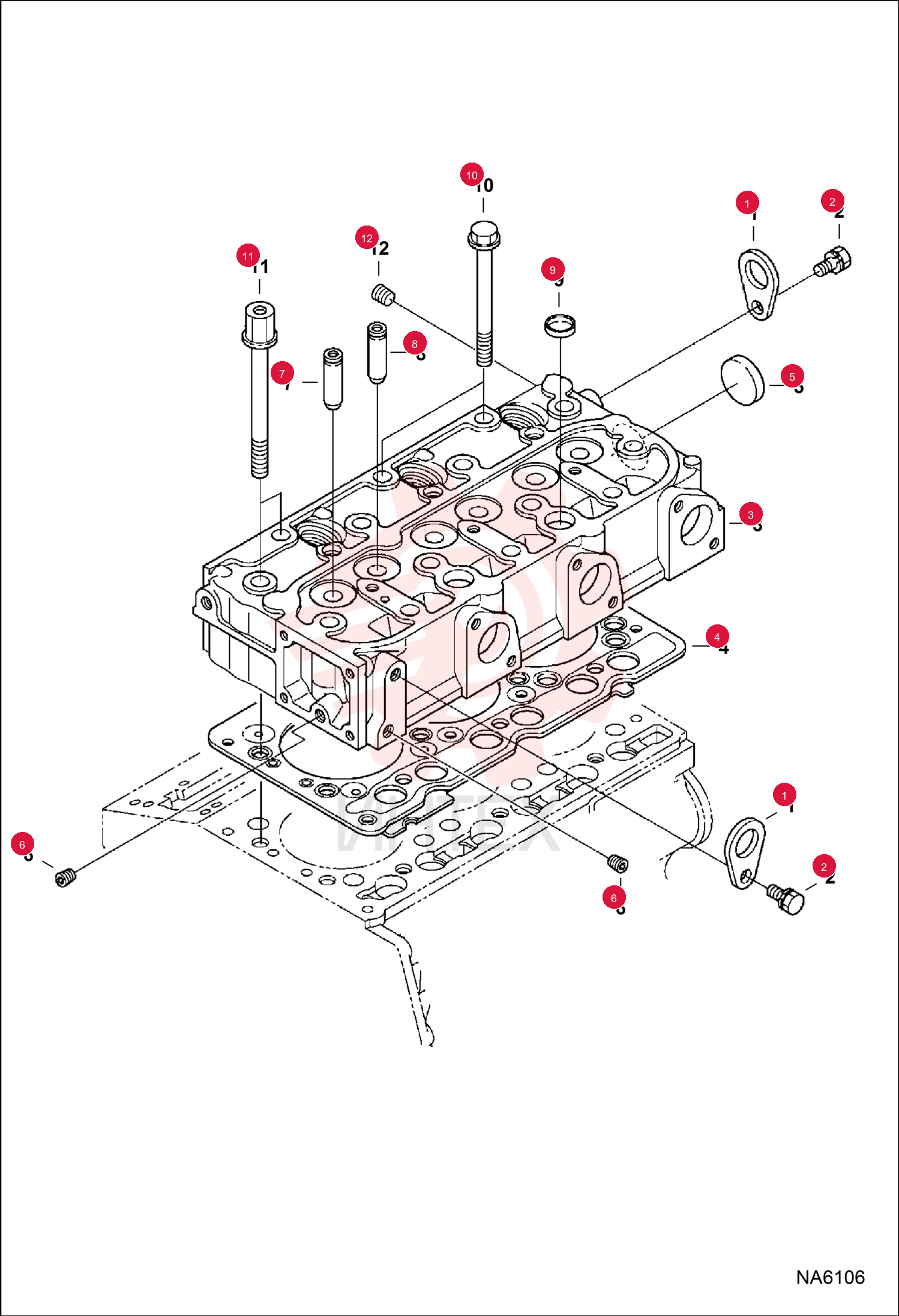

HOOK, ENGINE 6689424 (2)

HOOK, ENGINE 6689424 (2)

HOOK, ENGINE 6689424 (2)

1 6689424

  • 6689424 - HOOK
  • ENGINE

2 6667420

  • 6667420 - BOLT

3 7348625

  • 7348625 - HEAD CYLINDER
  • W/Ref. 4 -8

4 7348626

  • 7348626 - GASKET HEAD

5 7247454

  • 7247454 - PLUG
  • sealing

6 6598116

  • 6598116 - PLUG

7 6685957

  • 6685957 - GUIDE
  • inlet valve

8 6685958

  • 6685958 - GUIDE
  • exhaust valve

9 6680637

  • 6680637 - CAP
  • sealing

10 6657478

  • 6657478 - BOLT

11 7022682

  • 7022682 - BOLT

12 6680667

  • 6680667 - PLUG
