Bobcat
/
E27Z
/

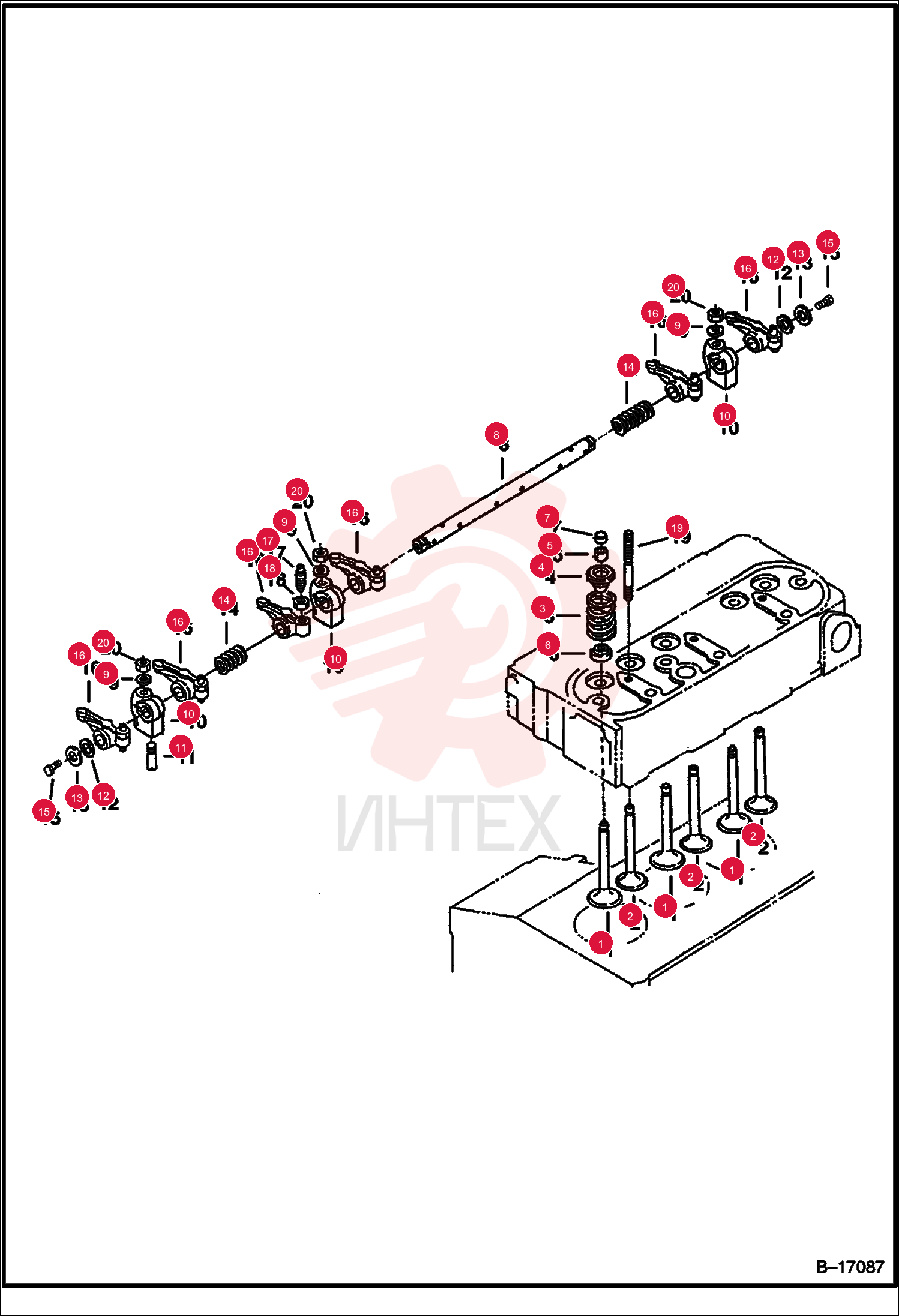

VALVE, INLET 7022687 (1)

VALVE, INLET 7022687 (1)

VALVE, INLET 7022687 (1)

1 7022687

  • 7022687 - VALVE
  • INLET
  • intake

2 7022688

  • 7022688 - VALVE
  • EXHAUST
  • exhaust

3 6657630

  • 6657630 - SPRING

4 6685959

  • 6685959 - RETAINER

5 7008389

  • 7008389 - RETAINER
  • VALVE SPRING

6 6672436

  • 6672436 - SEAL
  • valve stem

7 6672437

  • 6672437 - CAP

8 6680255

  • 6680255 - SHAFT

9 2EM7

  • 2EM7 - WASHER

10 6657509

  • 6657509 - BRACKET

11 6680256

  • 6680256 - PIN
  • SPRING
  • spring

12 6657511

  • 6657511 - WASHER

13 6670520

  • 6670520 - WASHER

14 6657508

  • 6657508 - SPRING

15 6670521

  • 6670521 - BOLT

16 6657502

  • 6657502 - ARM ASSEMBLY
  • W/Ref. 17 & 18

17 6657506

  • 6657506 - SCREW

18 6680881

  • 6680881 - NUT

19 6657510

  • 6657510 - STUD

20 1DM7

  • 1DM7 - NUT
