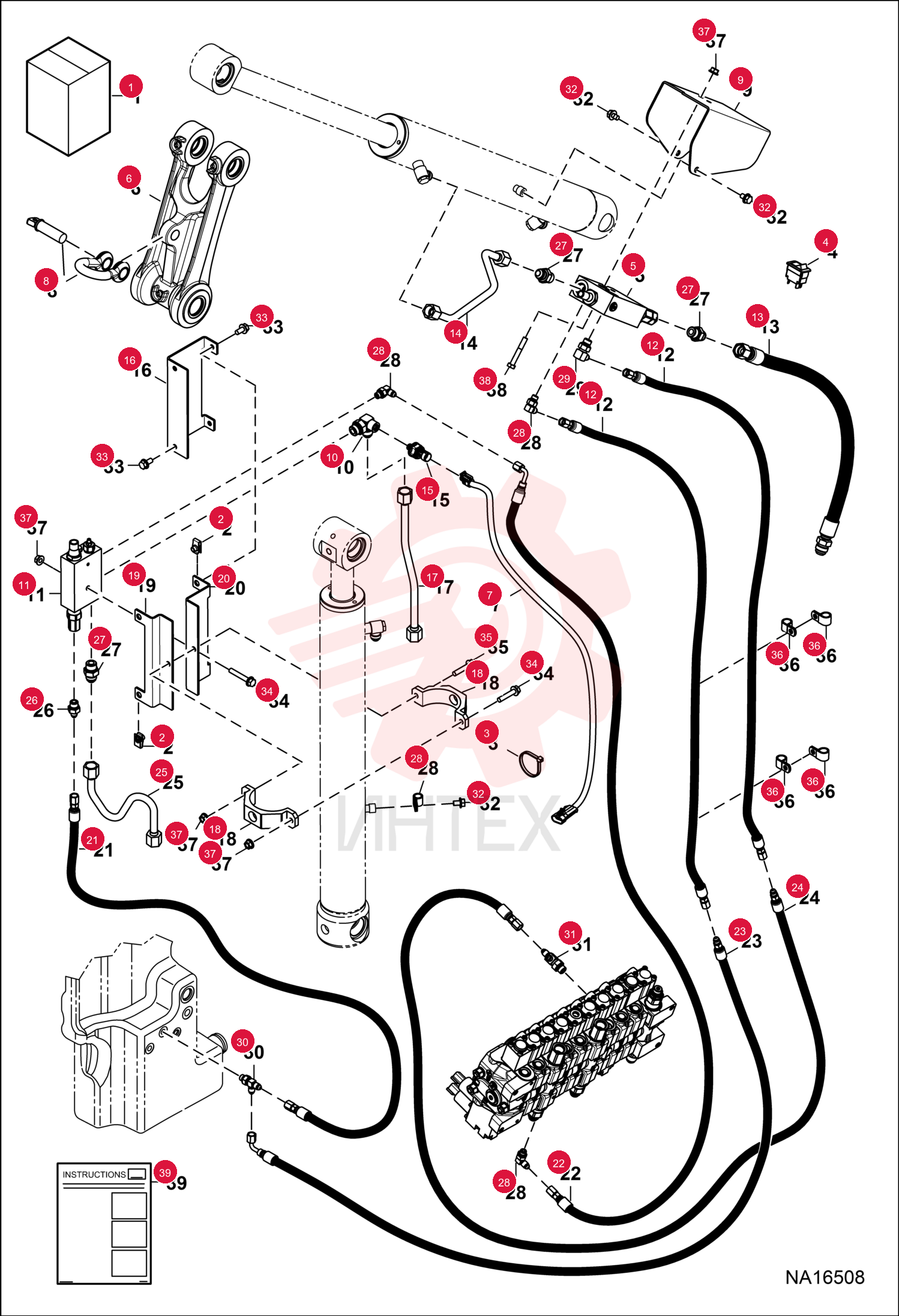

KIT OBJECT HANDLING 7352624 (1)

KIT OBJECT HANDLING 7352624 (1)

KIT OBJECT HANDLING 7352624 (1)

1 7352624

  • 7352624 - KIT OBJECT HANDLING
  • Ref. 2-39

2 6676169

  • 6676169 - NUT

3 6682345

  • 6682345 - STRAP
  • TIE 8

4 7010503

  • 7010503 - SWITCH
  • ROCKER

5 7189078

  • 7189078 - VALVE
  • LOCK LOAD

6 7250480

  • 7250480 - SHACKLE

7 7250792

  • 7250792 - HARNESS
  • VALVE

8 7250873

  • 7250873 - LINK ASSEMBLY

9 7307747

  • 7307747 - BRACKET LOAD HOLD

10 7309970

  • 7309970 - FITTING TEE

11 7314385

  • 7314385 - VALVE LOAD HOLD

12 7317242

  • 7317242 - HOSE HYDRAULIC ASSY

13 7317244

  • 7317244 - HOSE HYDRAULIC ASSY

14 7317245

  • 7317245 - TUBELINE HYDRAULIC

15 7320663

  • 7320663 - SENSOR PRESS

16 7328468

  • 7328468 - BRACKET LOAD HOLD

17 7329490

  • 7329490 - TUBELINE HYDRAULIC

18 7329642

  • 7329642 - SHIELD CLAMP BOOM CYL

19 7332584

  • 7332584 - BRACKET LOAD HOLD

20 7332585

  • 7332585 - BRACKET LOAD HOLD

21 7333144

  • 7333144 - HOSE HYDRAULIC ASSY

22 7333145

  • 7333145 - HOSE HYDRAULIC ASSY

23 7333146

  • 7333146 - HOSE HYDRAULIC ASSY

24 7333147

  • 7333147 - HOSE HYDRAULIC ASSY

25 7346122

  • 7346122 - TUBELINE HYDRAULIC

26 15KB0406

  • 15KB0406 - FITTING
  • HYD CONNECTOR

27 15KB0808

  • 15KB0808 - FTG HYD S CONNECTOR

28 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

29 17KB0406

  • 17KB0406 - FITTING
  • HYD ELBOW

30 21KB0404

  • 21KB0404 - FITTING
  • HYD TEE

31 21KB0406

  • 21KB0406 - FITTING
  • HYD TEE

32 29CM812

  • 29CM812 - BOLT

33 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

34 29CM840

  • 29CM840 - SCREW FLGD HEX CAP

35 29CM850

  • 29CM850 - SCREW

36 30H34

  • 30H34 - CLAMP

37 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

38 53CM855

  • 53CM855 - SCREW

39 7357961

  • 7357961 - INSTRUCTIONS INSTALL
