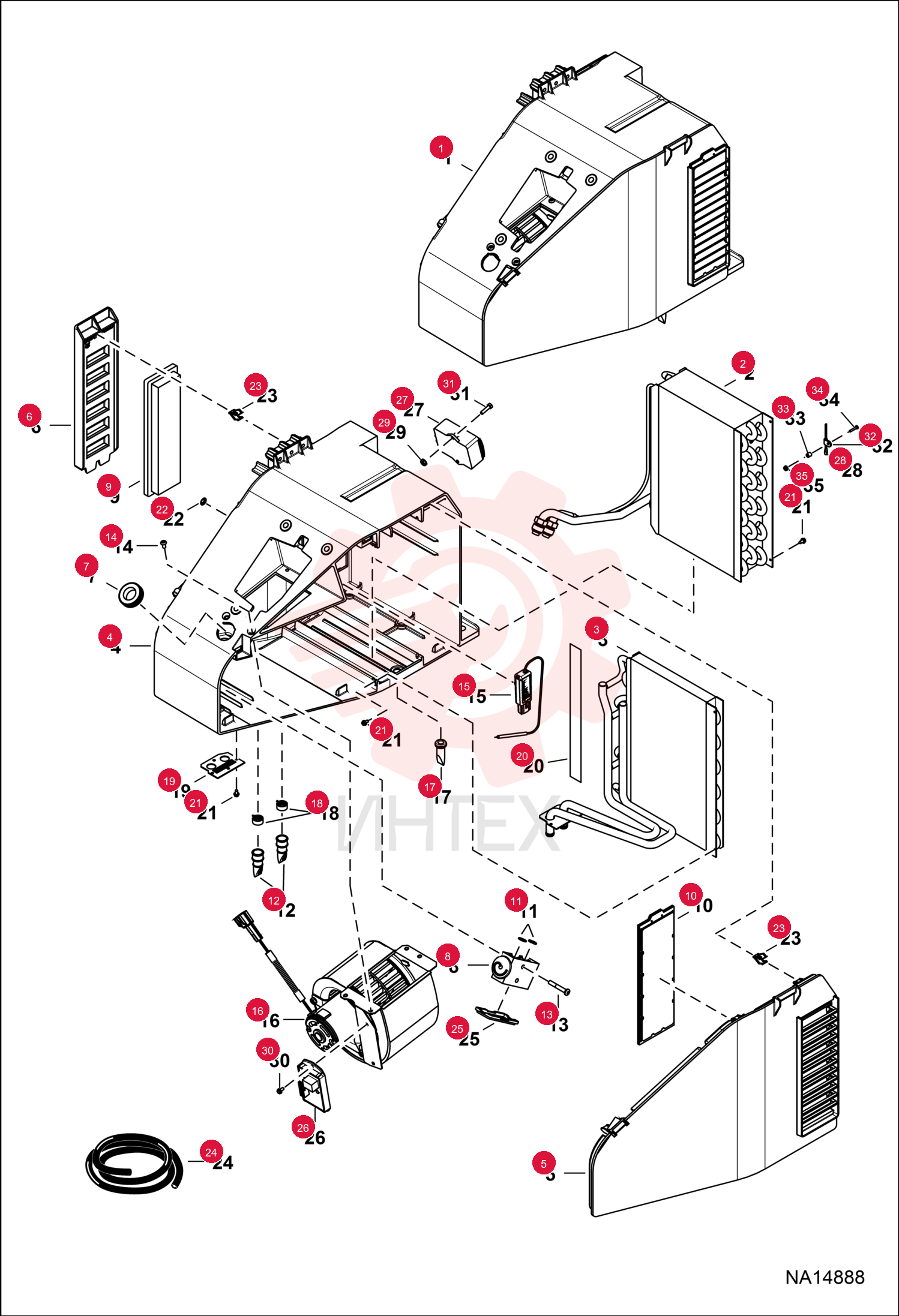

HVAC ASSEMBLY 7279642

HVAC ASSEMBLY 7279642

HVAC ASSEMBLY 7279642

1 7279642

  • 7279642 - HVAC ASSEMBLY
  • Ref. 2-35

2 7222772

  • 7222772 - CORE
  • HEATER

3 7222773

  • 7222773 - CORE
  • EVAPORATOR

4 7222770

  • 7222770 - HOUSING
  • BASE

5 7222771

  • 7222771 - COVER
  • HVAC

6 7224878

  • 7224878 - COVER
  • FILTER PARTICULATE

7 7335916

  • 7335916 - HARNESS HVAC
  • harness not shown - grommet included

8 6675534

  • 6675534 - BLOCK
  • VALVE A/C

9 7176099

  • 7176099 - FILTER
  • AIR FRESH 10

10 7231496

  • 7231496 - FILTER
  • AIR HEATER CAB
  • HEPA Filter

11 7222791

  • 7222791 - FILTER
  • AIR RECIRCULATING

12 7240092

  • 7240092 - O-RING

13 7193541

  • 7193541 - DRAIN
  • WATER SEAT

14 7192371

  • 7192371 - BOLT

15 7240759

  • 7240759 - SCREW

16 7349564

  • 7349564 - SENSOR DE-ICING

17 7349537

  • 7349537 - BLOWER ASSEMBLY

18 7240093

  • 7240093 - VALVE
  • DRAIN

19 7240094

  • 7240094 - CLAMP
  • HOSE

20 7240091

  • 7240091 - SEAL
  • FOAM

21 6677119

  • 6677119 - SCREW

22 7240097

  • 7240097 - RETAINER
  • HOLDER

23 7165333

  • 7165333 - CLIP

24 6676538

  • 6676538 - INSULATION TAPE FT
  • bulk - sold per foot

25 7193533

  • 7193533 - GROMMET

26 7349563

  • 7349563 - MODULE CONTROL

27 7349562

  • 7349562 - MOTOR ASSEMBLY

28 7349565

  • 7349565 - SENSOR AIR

29 7011940

  • 7011940 - NUT
  • LOCK

30 6684556

  • 6684556 - SCREW

31 7351748

  • 7351748 - SCREW HEX

32 7351750

  • 7351750 - CLAMP CABLE

33 7351751

  • 7351751 - TUBE SPACER

34 7351752

  • 7351752 - SCREW HEX

35 7351753

  • 7351753 - NUT LOCK
