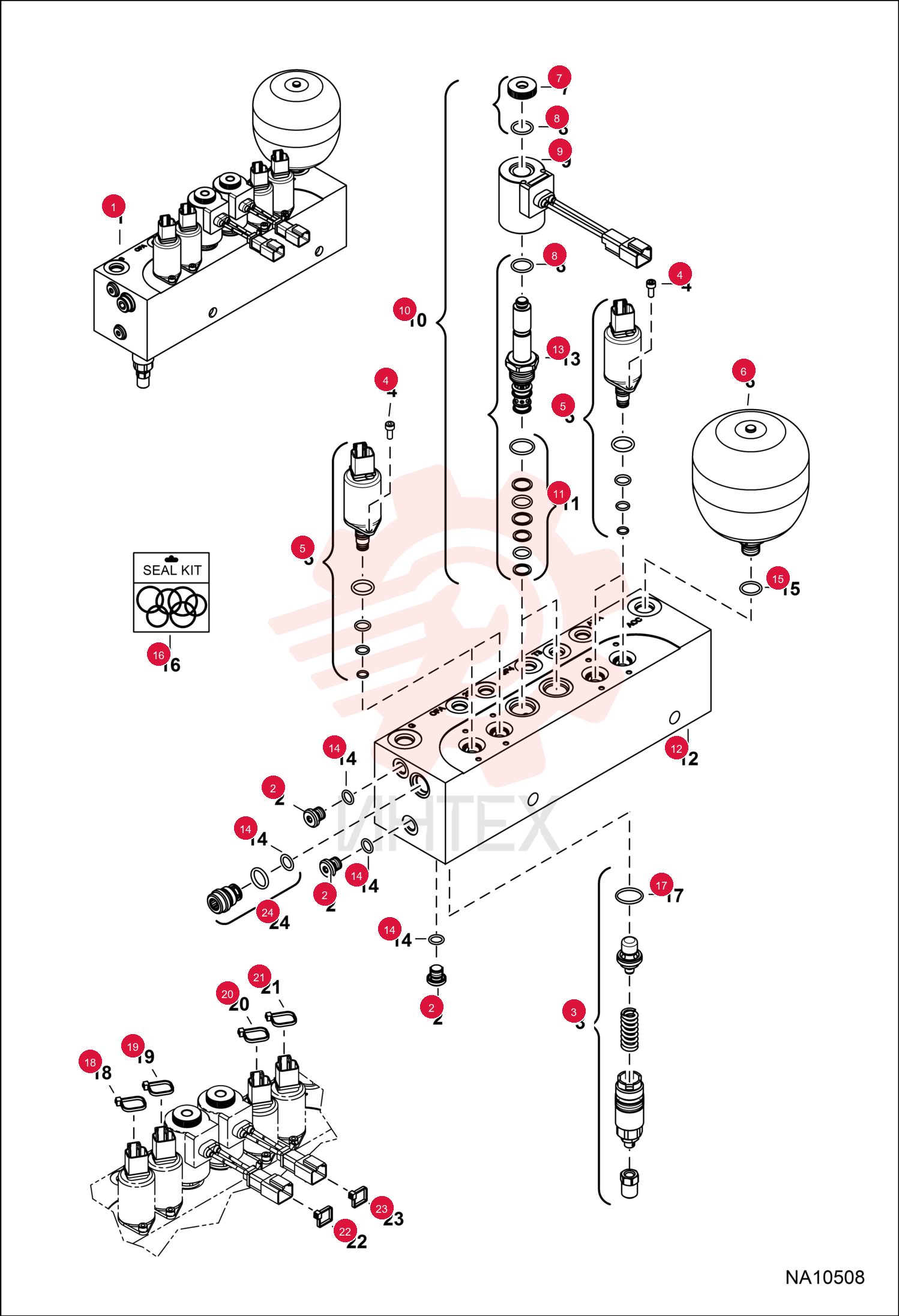

MANIFOLD, PILOT SB 7256314 (2)

MANIFOLD, PILOT SB 7256314 (2)

MANIFOLD, PILOT SB 7256314 (2)

1 7256314

  • 7256314 - MANIFOLD
  • PILOT SB
  • Ref. 2-23

2 6678993

  • 6678993 - PLUG
  • W/Ref. 14

3 7010629

  • 7010629 - VALVE
  • RELIEF

4 7010627

  • 7010627 - SCREW

5 7232745

  • 7232745 - VALVE
  • PROPORTIONAL
  • Was 7010626

6 7369457

  • 7369457 - KIT SEAL

7 6669537

  • 6669537 - ACCUMULATOR
  • W/Ref. 15

8 6679076

  • 6679076 - NUT
  • Was 6688625

9 6679509

  • 6679509 - O-RING

10 7010625

  • 7010625 - COIL
  • SOLENOID

11 6678988

  • 6678988 - ASSY
  • VALVE
  • does not include Ref. 9

12 6679078

  • 6679078 - KIT
  • SEAL

13 7010628

  • 7010628 - O-RING

14 79K6

  • 79K6 - O RING 10

15 6678990

  • 6678990 - VALVE
  • CHECK
