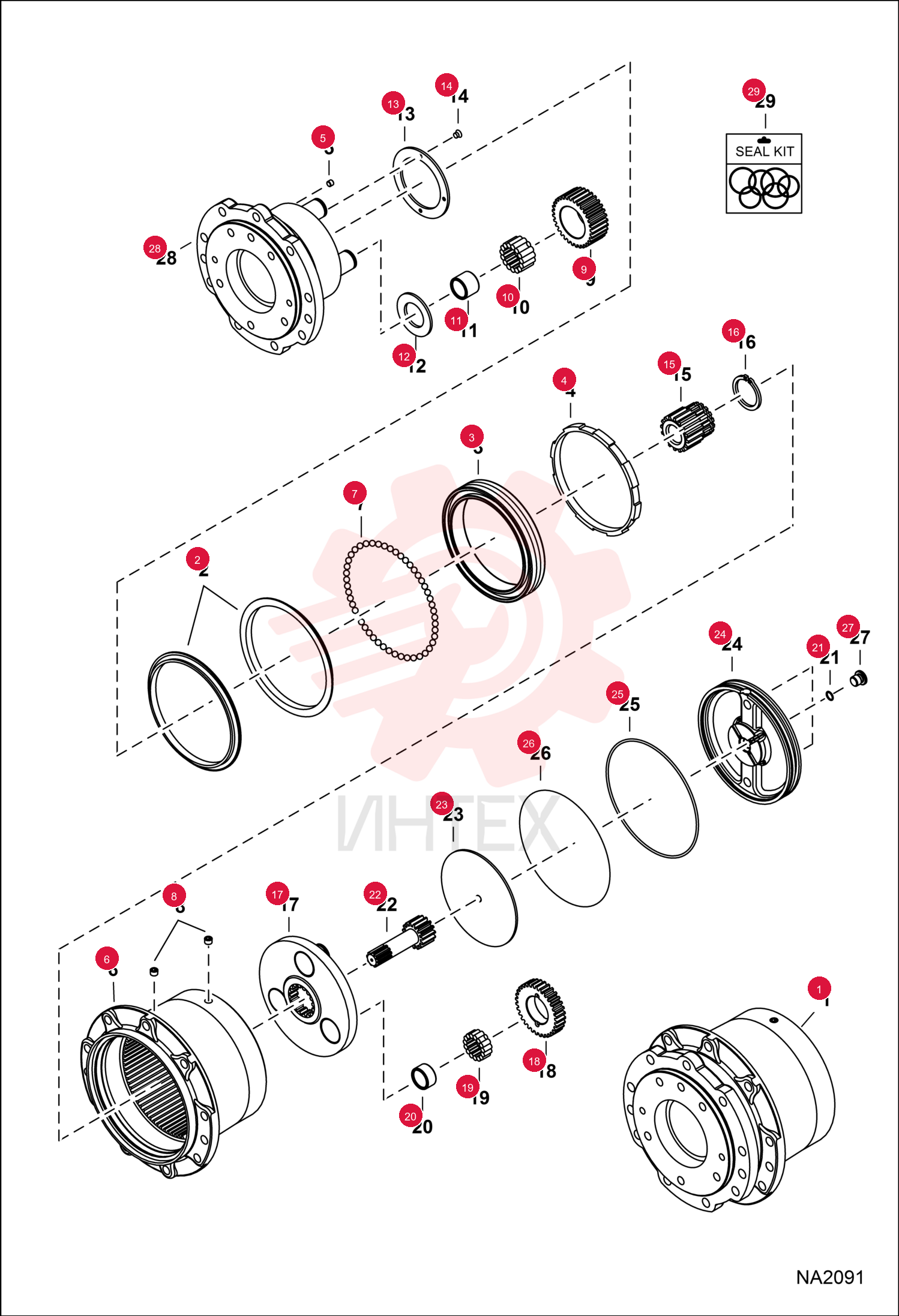

GEAR, BOX 7009157 (2)

GEAR, BOX 7009157 (2)

GEAR, BOX 7009157 (2)

1 7009157

  • 7009157 - GEAR
  • BOX
  • Includes Ref. 2-28

2 7009158

  • 7009158 - SEAL
  • FLOATING

3 7009159

  • 7009159 - BEARING
  • ANGULAR
  • W/Ref. 2&7

4 7009160

  • 7009160 - NUT
  • RING

5 7009161

  • 7009161 - PLUG

6 7009162

  • 7009162 - BALL
  • STEEL

7 7009163

  • 7009163 - PLUG

8 7009164

  • 7009164 - GEAR
  • PLANETARY
  • Was 7009165

9 7009165

  • 7009165 - BEARING
  • NEEDLE
  • Was 7009164

10 7009166

  • 7009166 - RACE
  • INNER

11 7009167

  • 7009167 - WASHER
  • THRUST

12 7009209

  • 7009209 - PLATE
  • THRUST

13 7009210

  • 7009210 - SCREW

14 7009168

  • 7009168 - GEAR

15 6655364

  • 6655364 - SNAP RING

16 7009169

  • 7009169 - HOLDER

17 7009170

  • 7009170 - GEAR
  • PLANETARY

18 7009171

  • 7009171 - BEARING
  • NEEDLE

19 7009172

  • 7009172 - RACE
  • INNER

20 7009180

  • 7009180 - O-RING

21 7009173

  • 7009173 - GEAR
  • DRIVE

22 7009174

  • 7009174 - PLATE
  • THRUST
  • 1.8mm

23 7009175

  • 7009175 - PLATE
  • THRUST
  • 2.3mm

24 7009176

  • 7009176 - PLATE
  • THRUST
  • 2.8mm

25 7009177

  • 7009177 - COVER

26 6655376

  • 6655376 - WIRE
  • lock

27 7009179

  • 7009179 - PLUG

28 7009213

  • 7009213 - SEAL KIT
  • - Ref. 8
  • 9
  • 14
  • 30
  • 31
  • 37
  • 48 & 52 - Also includes Ref. 2
  • 21 & 25 on this page
