Bobcat
/
E35
/

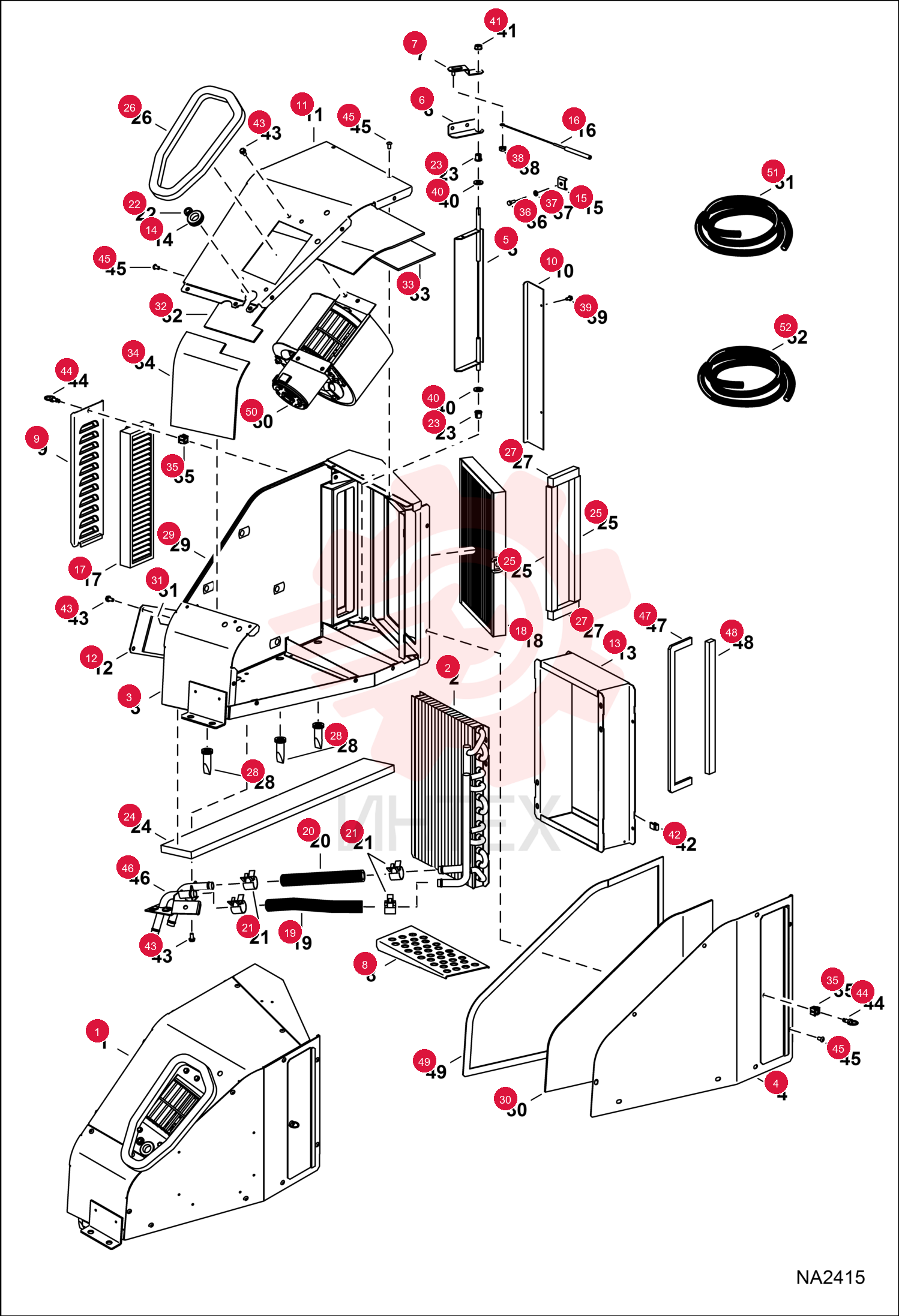

HEATER, CAB 7008374

HEATER, CAB 7008374

HEATER, CAB 7008374

1 7008374

  • 7008374 - HEATER
  • CAB
  • Ref. 2-52

2 7011125

  • 7011125 - COIL
  • HEATER

3 7011124

  • 7011124 - HOUSING
  • BASE

4 7011123

  • 7011123 - COVER
  • ASSY

5 7011122

  • 7011122 - DOOR
  • CONTROL AIR

6 7011121

  • 7011121 - BRACKET

7 7011120

  • 7011120 - LEVER

8 7011119

  • 7011119 - PLATE
  • SUPPORT

9 7011118

  • 7011118 - LOUVER

10 7011117

  • 7011117 - PLATE

11 7011116

  • 7011116 - COVER
  • HEATER

12 7011115

  • 7011115 - COVER
  • SIDE

13 7011114

  • 7011114 - PAN
  • COIL

14 7011113

  • 7011113 - HARNESS
  • HEATER
  • harness not shown - grommet included

15 7011112

  • 7011112 - CLAMP
  • CABLE

16 7011111

  • 7011111 - CABLE
  • A/C

17 7010331

  • 7010331 - FRESH AIR FILTER

18 7010332

  • 7010332 - FILTER RECIRCULATION

19 7003458

  • 7003458 - CLAMP
  • HOSE

20 6684947

  • 6684947 - GROMMET

21 7011110

  • 7011110 - BUSHING

22 7011109

  • 7011109 - FOAM

23 7003463

  • 7003463 - VALVE
  • DRAIN

24 7011108

  • 7011108 - INSULATION
  • HEATER

25 7011107

  • 7011107 - INSULATION
  • HEATER

26 7011106

  • 7011106 - INSULATION
  • HEATER

27 7011105

  • 7011105 - INSULATION
  • HEATER

28 7011104

  • 7011104 - INSULATION
  • HEATER

29 7011103

  • 7011103 - INSULATION
  • HEATER

30 6677555

  • 6677555 - RECEPTACLE

31 7011102

  • 7011102 - BOLT

32 6693223

  • 6693223 - WASHER

33 6679675

  • 6679675 - NUT

34 6677119

  • 6677119 - SCREW

35 7011101

  • 7011101 - WASHER

36 7011100

  • 7011100 - NUT

37 6676539

  • 6676539 - CLIP PANEL

38 6691532

  • 6691532 - SCREW
  • Was 6677118

39 7011099

  • 7011099 - STUD

40 6691532

  • 6691532 - SCREW
  • Was 7011098

41 7011097

  • 7011097 - PLATE
  • CONNECTION

42 6696953

  • 6696953 - FOAM

43 7011096

  • 7011096 - FOAM

44 6693236

  • 6693236 - FOAM

45 7011131

  • 7011131 - BLOWER
  • HEATER AND A/C

46 7023573

  • 7023573 - RESISTOR

47 6565977

  • 6565977 - HOSE HEATER BULK
  • sold per foot - Was 7003457

48 7003460

  • 7003460 - SEAL
  • FOAM
  • bulk - sold per foot
