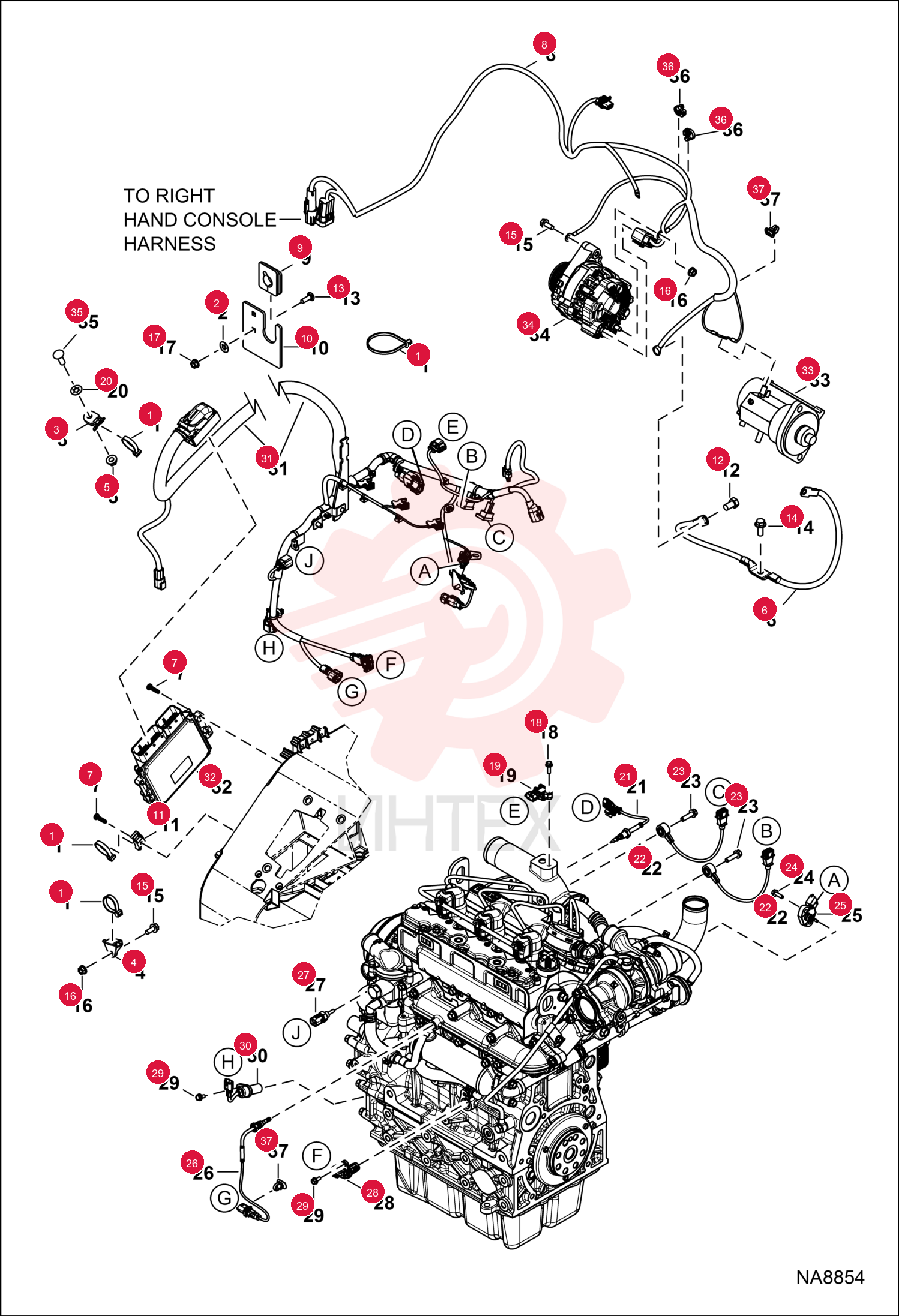

STRAP, TIE 6624289 (9)
1 6624289
- 6624289 - STRAP
- TIE
2 6675859
- 6675859 - RETAINER
3 6679034
- 6679034 - MOUNT
4 6678818
- 6678818 - MOUNT
5 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
6 7283224
- 7283224 - HARNESS GROUND
- 571 mm (22.5") & 460 mm (18.10") long - Was 7252959
7 7209624
- 7209624 - CABLE
- GROUND
- if equipped - 356 mm (14") & 292 mm (11.5") long
8 7223129
- 7223129 - SCREW
9 7223428
- 7223428 - HARNESS
- ENG
10 7225638
- 7225638 - GROMMET
11 7232163
- 7232163 - PLATE
- HOLDER
12 7240966
- 7240966 - CLIP
- HARNESS
13 1CM1220
- 1CM1220 - BOLT
14 28CM825
- 28CM825 - BOLT CARRIAGE 8.8
15 29CM1025
- 29CM1025 - SCREW FLGD HEX CAP
16 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
17 43DM8
- 43DM8 - NUT FLANGED HEX
18 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
19 7030273
- 7030273 - BOLT
20 6674264
- 6674264 - RETAINER BOLT
21 7030438
- 7030438 - SENSOR
- KNOCK
22 7030265
- 7030265 - BOLT
23 7030273
- 7030273 - BOLT
24 7030445
- 7030445 - SENSOR
- PRESS OIL ENG
25 7319352
- 7319352 - SENSOR TEMP COOLANT
- Was 7030443
26 7030437
- 7030437 - SENSOR
- POSITION CAMSHAFT
27 7030282
- 7030282 - BOLT
28 7030444
- 7030444 - SENSOR
- CRANKSHAFT
29 7030329
- 7030329 - ECU
- programming by dealer required
30 7253205
- 7253205 - STARTER
- Was 6670727
31 7015581
- 7015581 - ALTERNATOR
- 90 AMP
32 28CM1030
- 28CM1030 - BOLT CARRIAGE 8.8
33 6681871
- 6681871 - MOUNT TREE 5MM
34 7029522
- 7029522 - STRAP
- TIE
