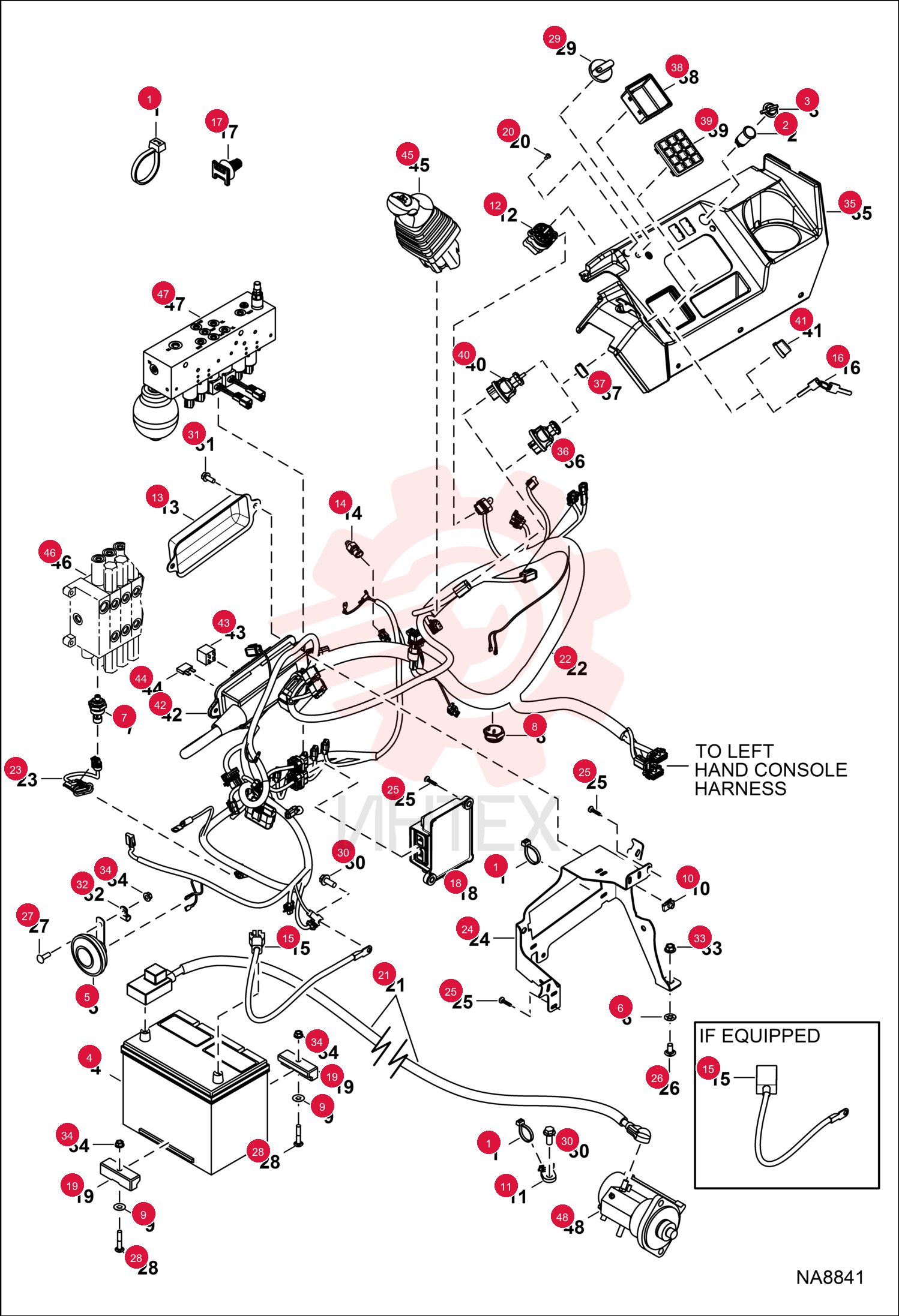

STRAP, TIE 6624289 (22)

STRAP, TIE 6624289 (22)

STRAP, TIE 6624289 (22)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6664223

  • 6664223 - OUTLET ELECTRICAL

3 6664224

  • 6664224 - CAP

4 6673865

  • 6673865 - BATTERY
  • WET 600CCA
  • Wet Battery - EMEA only

5 6669600

  • 6669600 - BATTERY
  • Wet Battery - EMEA only

6 6671106

  • 6671106 - ALARM

7 6674264

  • 6674264 - RETAINER BOLT

8 7311544

  • 7311544 - SENSOR PRESSURE
  • Use W/ 7323069 harness

9 6674316

  • 6674316 - SWITCH
  • PRESS OIL HYD

10 6675705

  • 6675705 - ALARM

11 6675859

  • 6675859 - RETAINER

12 6676169

  • 6676169 - NUT

13 6679034

  • 6679034 - MOUNT

14 7281258

  • 7281258 - CONTROL THROTTLE
  • Was 6698640

15 6716621

  • 6716621 - COVER
  • FUSE

16 6727869

  • 6727869 - SENDER
  • HYD TEMP

17 7308137

  • 7308137 - CABLE BATTERY NEGATIVE
  • Was 6807431

18 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

19 7015668

  • 7015668 - MOUNT
  • STRAP TIE

20 7260940

  • 7260940 - CONTROLLER GATEWAY
  • Was 7024906

21 7120672

  • 7120672 - TIE DOWN

22 7135909

  • 7135909 - SCREW

23 7174916

  • 7174916 - CABLE
  • POSITIVE

24 7323069

  • 7323069 - HARNESS CONSOLE RH

25 7241864

  • 7241864 - HARNESS
  • CONSOLE RH

26 7210416

  • 7210416 - HARNESS
  • CONSOLE RH
  • W/Ref. 16 & 48

27 7217776

  • 7217776 - HARNESS
  • JUMPER

28 7220330

  • 7220330 - BRACKET
  • RELAY CENTER

29 7223129

  • 7223129 - SCREW

30 28CM1020

  • 28CM1020 - BOLT CARRIAGE 8.8

31 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

32 28CM845

  • 28CM845 - BOLT

33 7022367

  • 7022367 - KNOB

34 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

35 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

36 30H22

  • 30H22 - CLIP INSULATED

37 43DM10

  • 43DM10 - NUT FLANGED HEX

38 43DM8

  • 43DM8 - NUT FLANGED HEX

39 6693245

  • 6693245 - SWITCH
  • IGN

40 7000328

  • 7000328 - ADAPTER SWITCH

41 7211550

  • 7211550 - CONTAINER
  • STORAGE

42 6693712

  • 6693712 - KEYPAD
  • PANEL

43 7023022

  • 7023022 - SWITCH ROTARY

44 7023588

  • 7023588 - KNOB

45 6718659

  • 6718659 - HOUSING FUSE RELAY

46 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

47 6673201

  • 6673201 - LOCK

48 7029550

  • 7029550 - FUSE
  • 35A

49 6702444

  • 6702444 - FUSE 25A 5

50 6625575

  • 6625575 - FUSE
  • 20A

51 6654806

  • 6654806 - FUSE
  • 15A

52 6654805

  • 6654805 - FUSE 10A

53 6654803

  • 6654803 - FUSE 5A

54 7220730

  • 7220730 - JOYSTICK
  • RH
  • - manual controls

55 7024441

  • 7024441 - JOYSTICK
  • RH ASSY
