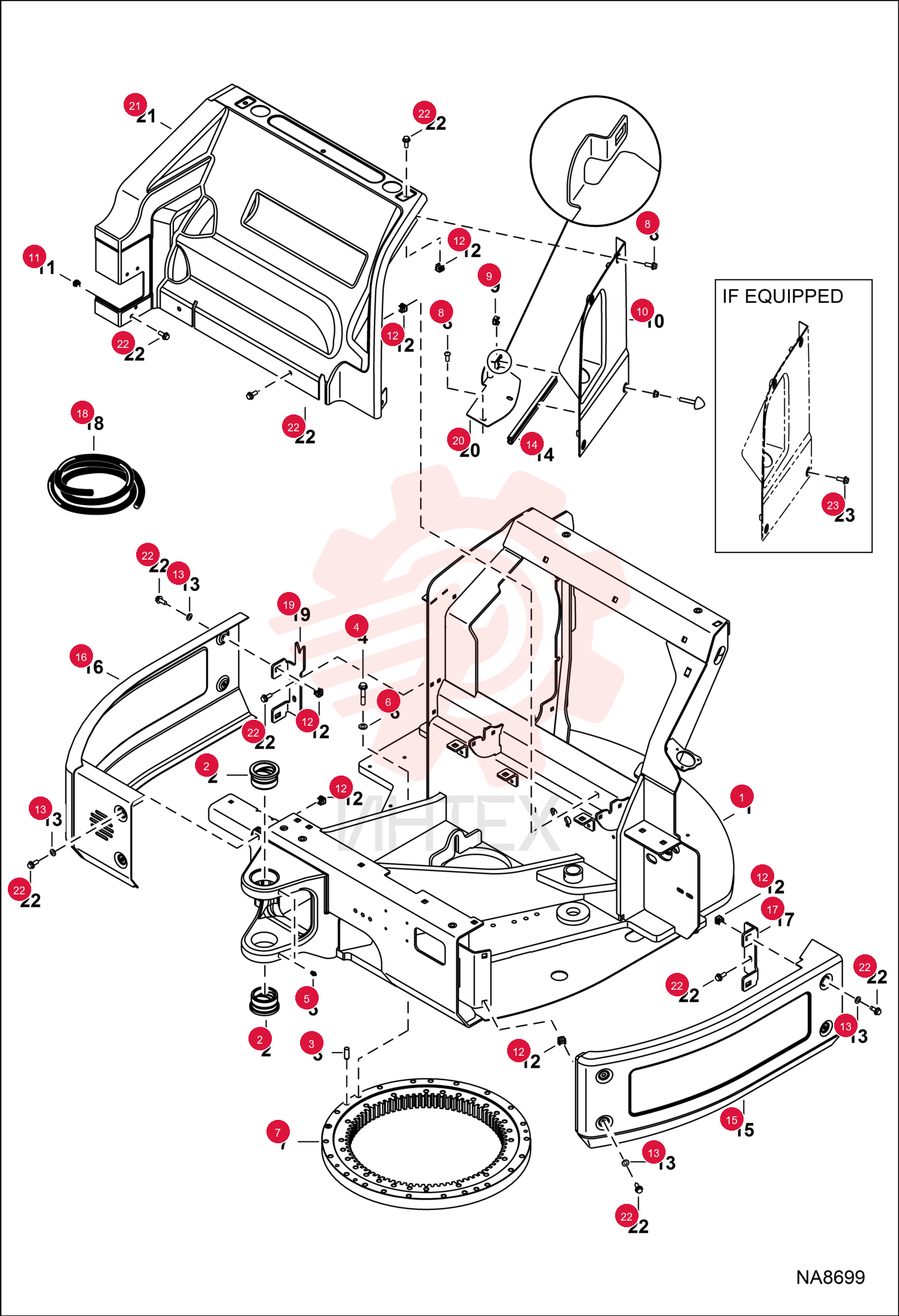

UPPERSTRUCTURE 7231070 (2)

UPPERSTRUCTURE 7231070 (2)

UPPERSTRUCTURE 7231070 (2)

1 7231070

  • 7231070 - UPPERSTRUCTURE

2 7206221

  • 7206221 - BUSHING
  • PIVOT

3 7171260

  • 7171260 - PIN
  • PARALLEL

4 7171918

  • 7171918 - SCREW

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 18EM1224

  • 18EM1224 - WASHER HARDENED PLN

7 6692964

  • 6692964 - RING
  • SLEW

8 6817769

  • 6817769 - SCREW

9 7024737

  • 7024737 - NUT

10 7148574

  • 7148574 - COVER
  • LH

11 7155411

  • 7155411 - NUT

12 7155413

  • 7155413 - NUT

13 25E17

  • 25E17 - WASHER FLAT PLAIN

14 7148372

  • 7148372 - CHANNEL
  • LH

15 7148408

  • 7148408 - CHANNEL
  • ASSY RH

16 7164453

  • 7164453 - BRACKET
  • COVER SIDE

17 7170493

  • 7170493 - SEAL
  • BULK
  • BULB BULK/FT
  • sold per foot

18 7176296

  • 7176296 - BRACKET
  • COVER SIDE

19 7204458

  • 7204458 - COVER
  • LH

20 7187133

  • 7187133 - PANEL
  • ENGINE

21 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

22 7243425

  • 7243425 - BUMPER
  • RUBBER
  • if equipped
