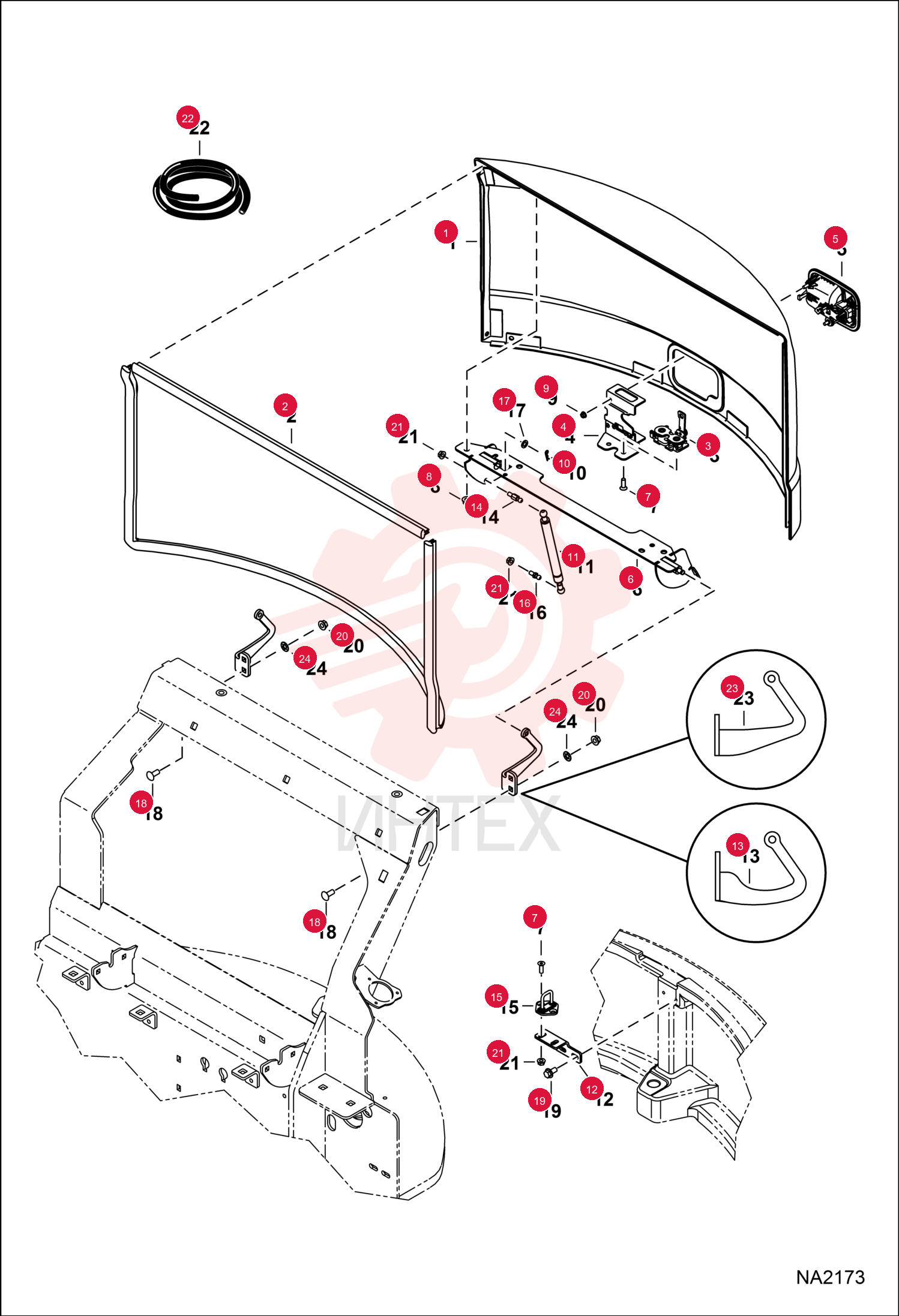

TAILGATE 7148150

TAILGATE 7148150

TAILGATE 7148150

1 7148150

  • 7148150 - TAILGATE
  • includes Ref. 6

2 7170871

  • 7170871 - LATCH
  • DOOR REAR

3 7170872

  • 7170872 - BRACKET
  • LATCH

4 7351798

  • 7351798 - HANDLE DOOR
  • Was 7170873

5 7176950

  • 7176950 - HINGE
  • DOOR REAR

6 23GM825

  • 23GM825 - SCREW

7 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

8 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

9 6513495

  • 6513495 - PIN 5

10 7355813

  • 7355813 - SPRING GAS
  • Was 7153990

11 7166867

  • 7166867 - BRACKET

12 7170322

  • 7170322 - STUD
  • BALL JOINT

13 7170944

  • 7170944 - STRIKER
  • LATCH DOOR

14 7177735

  • 7177735 - STUD
  • BALL JOINT

15 15EM100

  • 15EM100 - WASHER

16 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

17 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP
  • 8 mm dia

18 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP
  • 10 mm dia

19 43DM10

  • 43DM10 - NUT FLANGED HEX

20 43DM8

  • 43DM8 - NUT FLANGED HEX

21 7160901

  • 7160901 - SEAL
  • BULB
  • bulk - sold per foot

22 7188531

  • 7188531 - HINGE
  • DOOR REAR

23 6674264

  • 6674264 - RETAINER BOLT
