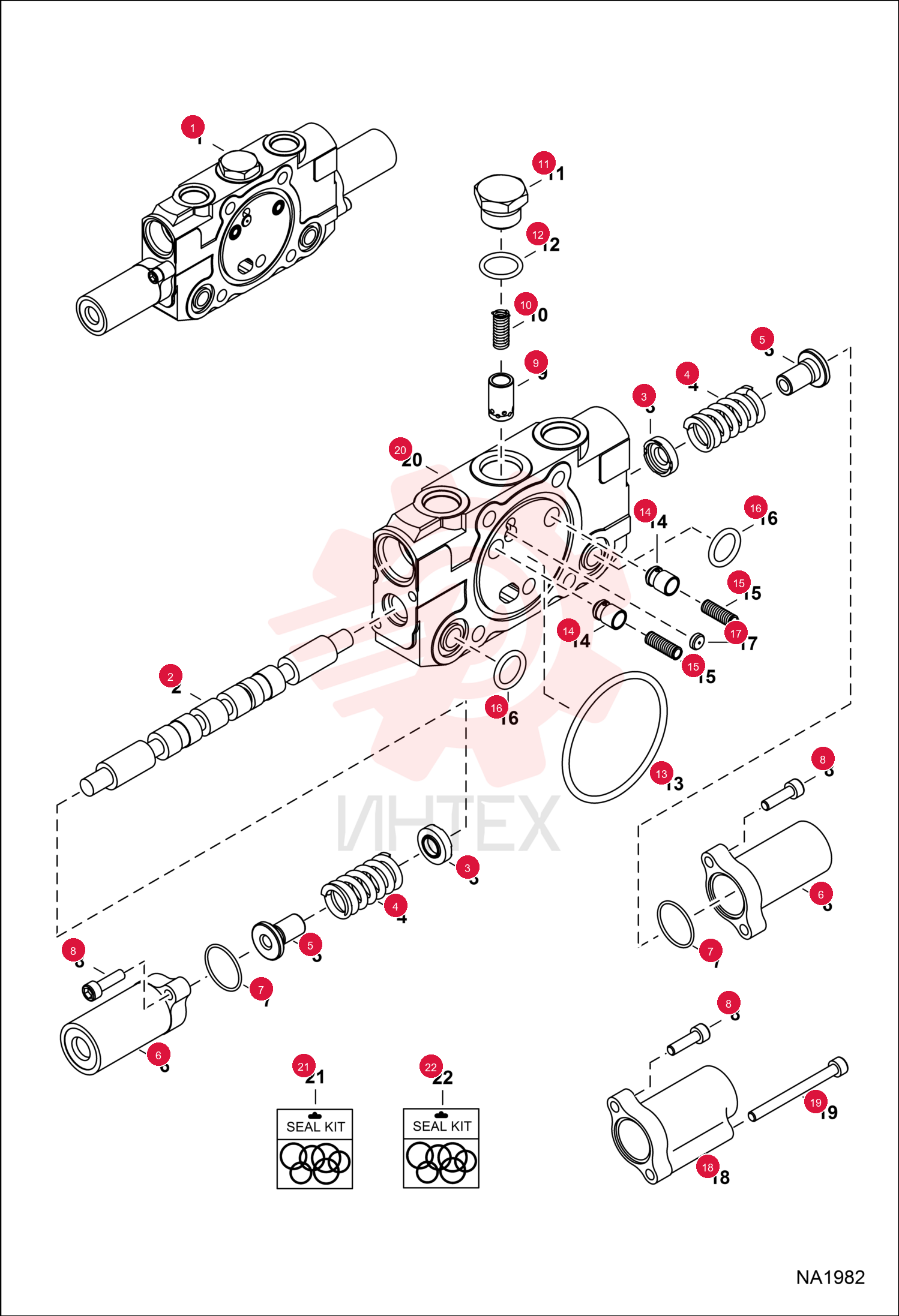

SECTION, VALVE 7012693 (1)
1 7012693
- 7012693 - SECTION
- VALVE
- Ref. 2-17 & 20 - Also Order 7197061 hose and 6812864 tee if machine had Ref. 18 (dual port cap 7012724) and arm load hold option
2 7012713
- 7012713 - SEAT
- SPRING
3 7012714
- 7012714 - SPRING
- VALVE
4 7012715
- 7012715 - SEAT
- SPRING
5 7012716
- 7012716 - CAP
- END
- single port
6 7012717
- 7012717 - O-RING
7 7012718
- 7012718 - BOLT
8 7012719
- 7012719 - SPRING
- VALVE
9 7012720
- 7012720 - PLUG
10 7012721
- 7012721 - O-RING
11 7012708
- 7012708 - O-RING
12 7012722
- 7012722 - POPPET
13 7012723
- 7012723 - SPRING
- VALVE
14 7012710
- 7012710 - O-RING
15 7012724
- 7012724 - CAP
- END
- dual port W/plug
16 7012725
- 7012725 - BOLT
17 7012777
- 7012777 - KIT
- SEAL
- Ref. 13 & 16
18 7020609
- 7020609 - KIT
- SEAL
- Ref. 7 & 12 - this is a standard seal kit some seals may not be used
