Bobcat
/
E45
/

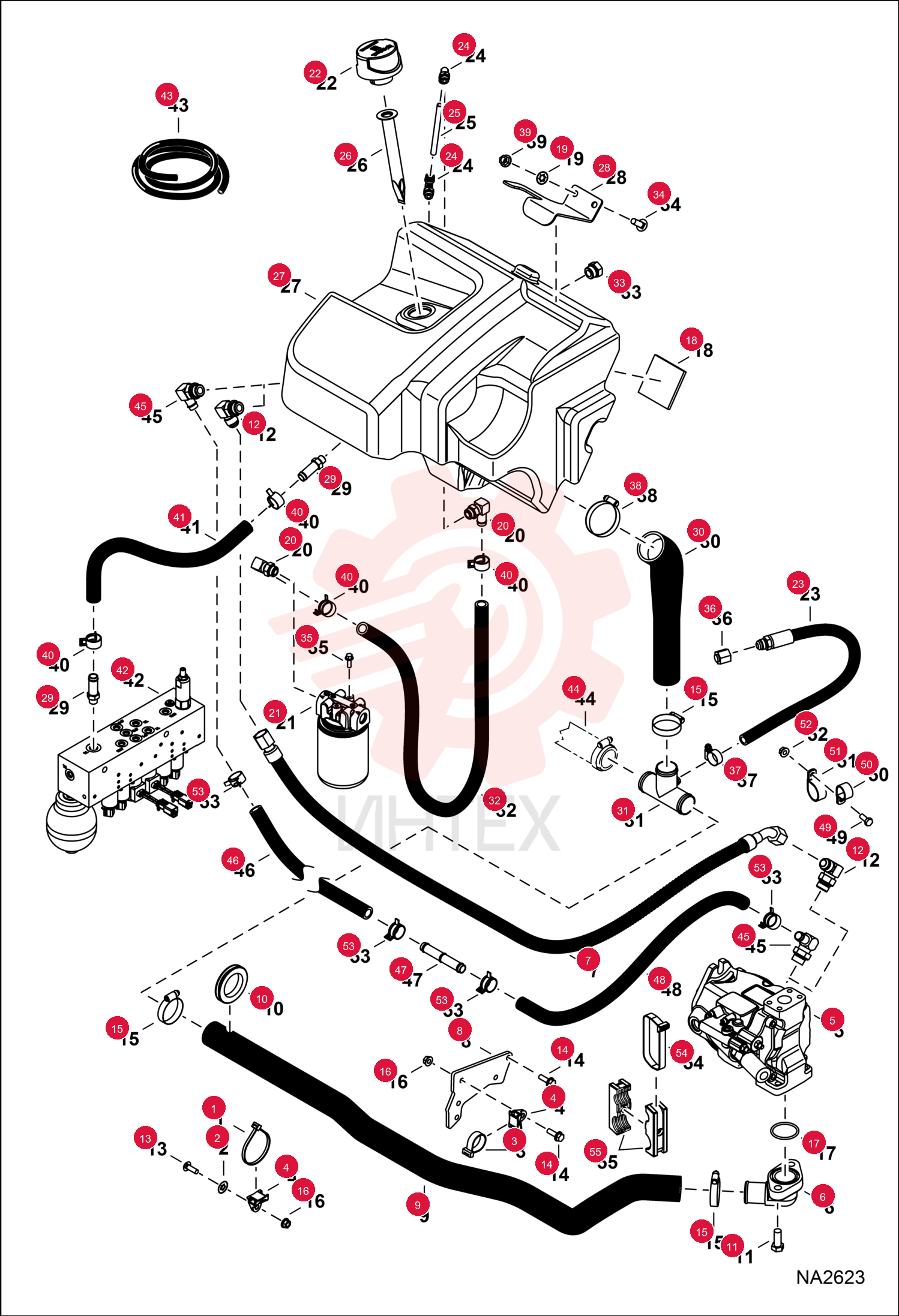

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 6678669

  • 6678669 - STRAP T250 H/D

4 6678818

  • 6678818 - MOUNT

5 7010203

  • 7010203 - PUMP
  • HYD PISTON

6 7010203REM

  • 7010203REM - PUMP
  • HYD PISTON

7 7151504

  • 7151504 - INLET
  • PUMP

8 7178047

  • 7178047 - HOSE
  • HYD

9 7178153

  • 7178153 - MOUNT

10 7179416

  • 7179416 - HOSE
  • HYD FORMED

11 7183315

  • 7183315 - GROMMET

12 17C820

  • 17C820 - BOLT 5

13 17KB1010

  • 17KB1010 - FTG HYD ELBOW 90

14 79K10

  • 79K10 - O RING 10

15 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

16 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

17 42HL200

  • 42HL200 - CLAMP LINED HOSE

18 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

19 58K225

  • 58K225 - O RING 10
  • Was 58K224

20 6578278

  • 6578278 - BUMP.PAD

21 6674264

  • 6674264 - RETAINER BOLT

22 6680952

  • 6680952 - FITTING 90 DEG BARB

23 79K8

  • 79K8 - O RING 10

24 6686217

  • 6686217 - FILTER ASSEMBLY

25 6516722

  • 6516722 - FILTER
  • OIL HYD

26 6692836

  • 6692836 - CAP
  • HYDRAULIC TANK

27 6713504

  • 6713504 - HOSE

28 7013179

  • 7013179 - FITTING

29 79K6

  • 79K6 - O RING 10

30 7013180

  • 7013180 - TUBE

31 7128723

  • 7128723 - SCREEN

32 7172644

  • 7172644 - TANK
  • HYD

33 7173137

  • 7173137 - BRACKET

34 7178858

  • 7178858 - FITTING
  • ADAPTER

35 79K6

  • 79K6 - O RING 10

36 7272645

  • 7272645 - HOSE
  • HYD FORMED
  • Was 7179440

37 7179508

  • 7179508 - FITTING
  • HYD TEE

38 79K10

  • 79K10 - O RING 10

39 24K7

  • 24K7 - PLUG
  • Use W/Ref. 24 NLA tank

40 28CM1030

  • 28CM1030 - BOLT CARRIAGE 8.8

41 35C412

  • 35C412 - SCREW FLGD HEX CAP

42 36K6

  • 36K6 - CAP

43 5HM20

  • 5HM20 - HOSE CLAMP
  • Was 42HL100

44 42HL250

  • 42HL250 - CLAMP

45 43DM10

  • 43DM10 - NUT FLANGED HEX

46 5HM23

  • 5HM23 - HOSE CLMP CONST TENS

47 6578172

  • 6578172 - HOSE BULK
  • sold per foot

48 7195417

  • 7195417 - FITTING
  • HYD ELBOW

49 7195825

  • 7195825 - UNION

50 7215095

  • 7215095 - HOSE
  • HYD FORMED
  • Was 7196595

51 4CM820

  • 4CM820 - SCREW HEX HD 8.8
  • Was 1CM820

52 30H49

  • 30H49 - CLAMP

53 30H110

  • 30H110 - CLIP
  • HOSE
  • Was 30H58

54 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

55 5HM23

  • 5HM23 - HOSE CLMP CONST TENS

56 6685156

  • 6685156 - RETAINER

57 7198913

  • 7198913 - CLAMP
  • HALF
