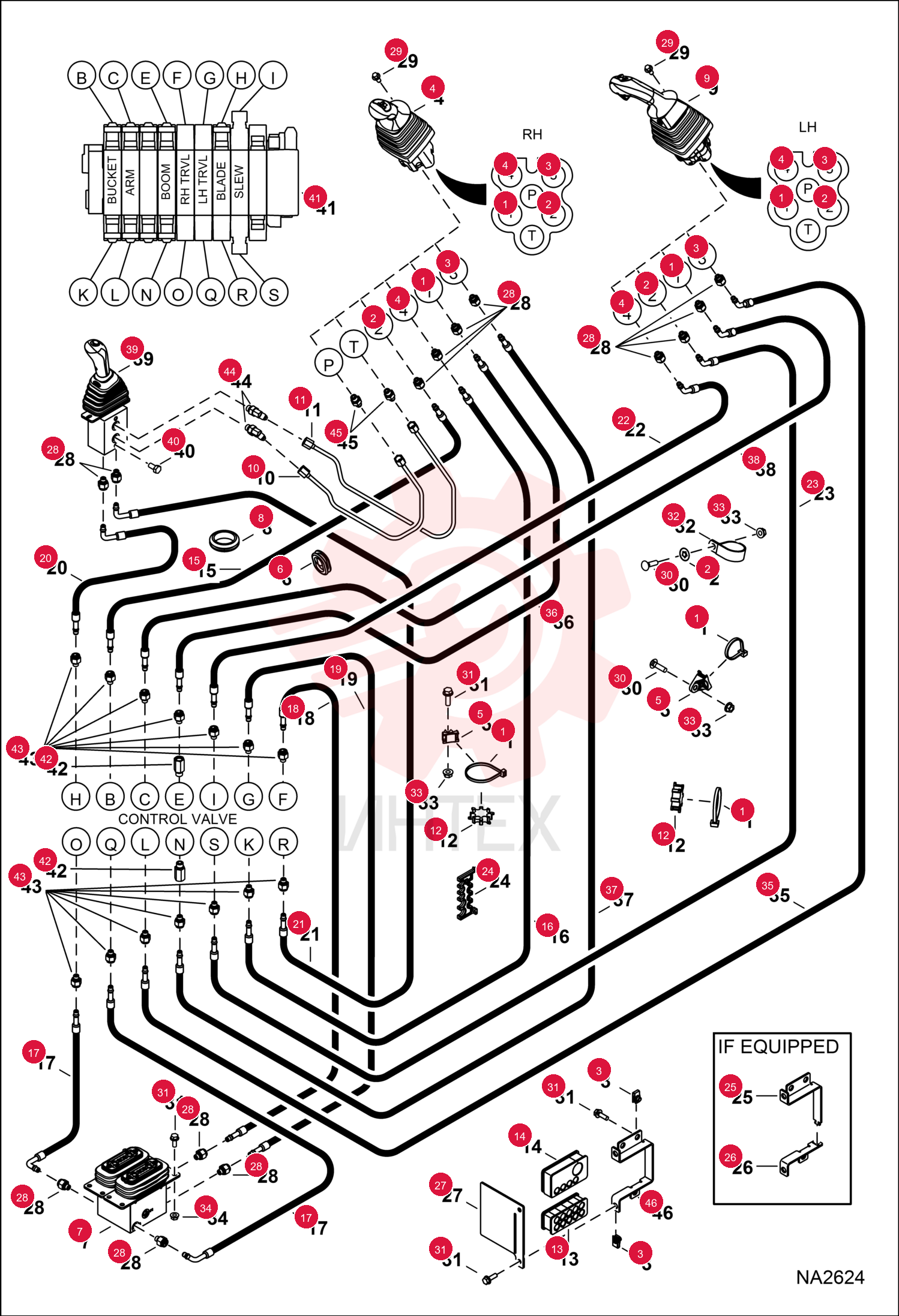

STRAP, TIE 6624289 (1)

STRAP, TIE 6624289 (1)

STRAP, TIE 6624289 (1)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 6676169

  • 6676169 - NUT

4 7220732

  • 7220732 - JOYSTICK
  • RH
  • RH

5 7024441

  • 7024441 - JOYSTICK
  • RH ASSY

6 6678818

  • 6678818 - MOUNT

7 6681886

  • 6681886 - GROMMET

8 6697935

  • 6697935 - VALVE
  • PEDAL DUAL

9 6806443

  • 6806443 - GROMMET

10 7220733

  • 7220733 - JOYSTICK
  • LH
  • LH

11 7024440

  • 7024440 - JOYSTICK
  • LH ASSY

12 7191228

  • 7191228 - TUBELINE
  • HYD

13 7164909

  • 7164909 - HOSE
  • HYD ASSY

14 7164910

  • 7164910 - HOSE
  • HYD ASSY

15 7191229

  • 7191229 - TUBELINE
  • HYD

16 7175013

  • 7175013 - GUIDE
  • HOSE

17 7223146

  • 7223146 - GUIDE
  • HOSE
  • Was 7175014

18 7175214

  • 7175214 - HOSE
  • HYD
  • Was 7175183

19 7175184

  • 7175184 - HOSE
  • HYD

20 7175186

  • 7175186 - HOSE
  • HYD

21 7175191

  • 7175191 - HOSE
  • HYD

22 7175192

  • 7175192 - HOSE
  • HYD

23 7175193

  • 7175193 - HOSE
  • HYD

24 7175194

  • 7175194 - HOSE
  • HYD

25 7175195

  • 7175195 - HOSE
  • HYD

26 7175196

  • 7175196 - HOSE
  • HYD

27 7178575

  • 7178575 - CLIP
  • HOSE

28 7178918

  • 7178918 - BRACKET

29 7178919

  • 7178919 - BRACKET

30 7178989

  • 7178989 - PLATE

31 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

32 78K4

  • 78K4 - O'RING

33 7011053

  • 7011053 - CLIP

34 7344615

  • 7344615 - CAP PLASTIC

35 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

36 28CM830

  • 28CM830 - BOLT

37 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

38 30H85

  • 30H85 - CLAMP

39 43DM8

  • 43DM8 - NUT FLANGED HEX

40 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

41 7175213

  • 7175213 - HOSE
  • HYD

42 7175214

  • 7175214 - HOSE
  • HYD

43 7175215

  • 7175215 - HOSE
  • HYD

44 7176974

  • 7176974 - HOSE
  • HYD

45 7008581

  • 7008581 - JOYSTICK
  • BLADE
  • W/O angle blade

46 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

47 7255726

  • 7255726 - VALVE
  • CONTROL
  • - 10 section - W/ angle blade - Was 7001660

48 7255725

  • 7255725 - VALVE
  • CONTROL
  • - 9 section - W/O angle blade - Was 7010255

49 79K6

  • 79K6 - O RING 10

50 7012494

  • 7012494 - ORIFICE

51 10L0606

  • 10L0606 - FITTING
  • HYD CONNECTOR

52 78K6

  • 78K6 - O'RING

53 7011053

  • 7011053 - CLIP

54 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR
  • Use W/hoses

55 78K4

  • 78K4 - O'RING

56 7011053

  • 7011053 - CLIP

57 7344615

  • 7344615 - CAP PLASTIC

58 78K4

  • 78K4 - O'RING

59 7011053

  • 7011053 - CLIP

60 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW
  • Use W/tubelines

61 79K4

  • 79K4 - O RING 10

62 79K4

  • 79K4 - O RING 10

63 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR
  • Use W/tublines

64 7011053

  • 7011053 - CLIP

65 7344615

  • 7344615 - CAP PLASTIC

66 78K4

  • 78K4 - O'RING

67 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR
  • Use W/hoses

68 78K4

  • 78K4 - O'RING

69 7011053

  • 7011053 - CLIP

70 7261696

  • 7261696 - MOUNT
  • HOSE
