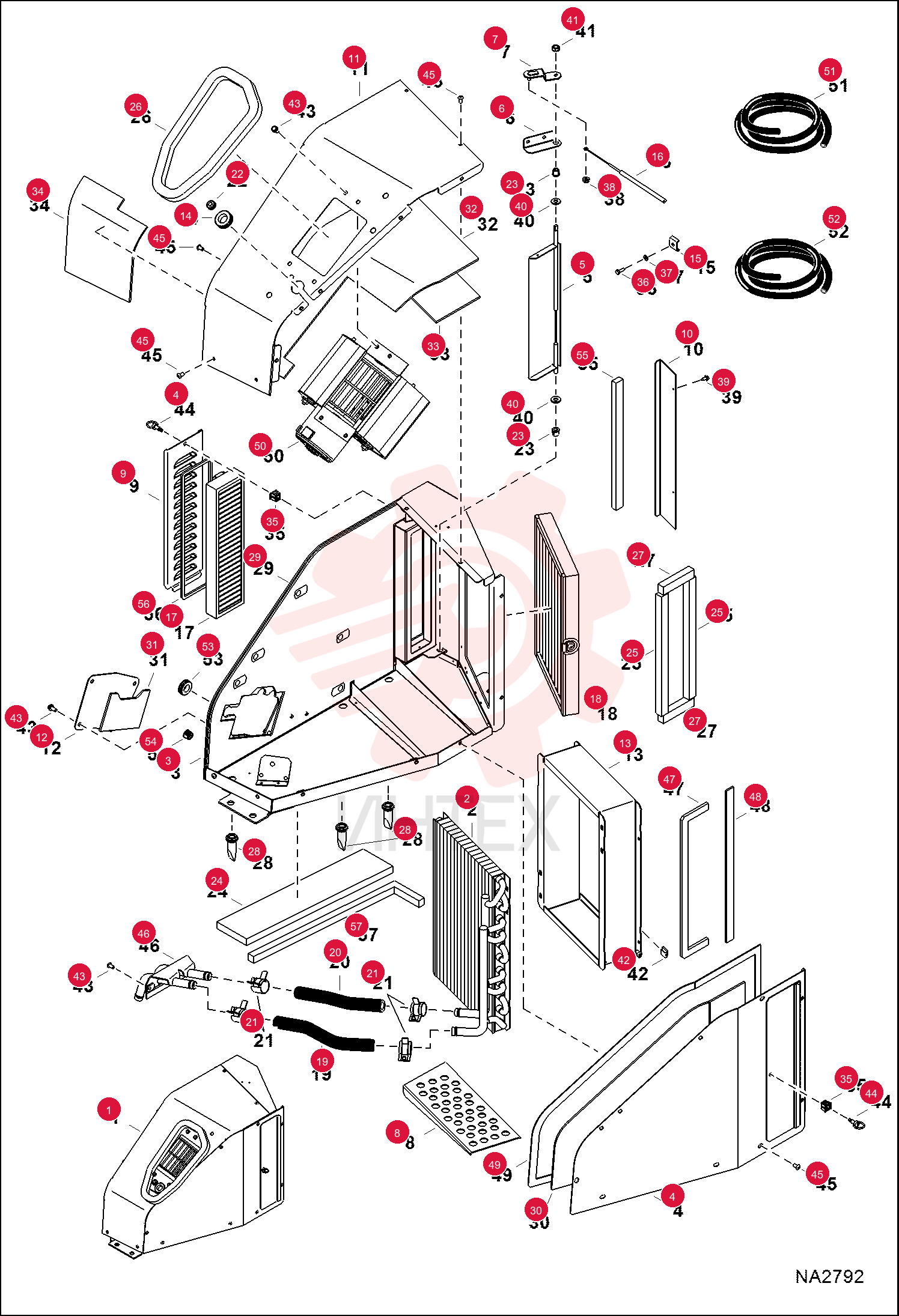

HEATER, CAB 7018004

HEATER, CAB 7018004

HEATER, CAB 7018004

1 7018004

  • 7018004 - HEATER
  • CAB
  • Ref. 2-57

2 7011125

  • 7011125 - COIL
  • HEATER

3 7017997

  • 7017997 - HOUSING
  • BASE
  • Was 7019997

4 7018000

  • 7018000 - COVER
  • ASSY

5 7011122

  • 7011122 - DOOR
  • CONTROL AIR

6 7011121

  • 7011121 - BRACKET

7 7011120

  • 7011120 - LEVER

8 7011119

  • 7011119 - PLATE
  • SUPPORT

9 7011118

  • 7011118 - LOUVER

10 7011117

  • 7011117 - PLATE

11 7017998

  • 7017998 - COVER

12 7017999

  • 7017999 - PLATE
  • VALVE

13 7011114

  • 7011114 - PAN
  • COIL

14 7011113

  • 7011113 - HARNESS
  • HEATER
  • harness not shown - grommet included

15 7011112

  • 7011112 - CLAMP
  • CABLE

16 7011111

  • 7011111 - CABLE
  • A/C

17 7010331

  • 7010331 - FRESH AIR FILTER

18 7010332

  • 7010332 - FILTER RECIRCULATION

19 7003458

  • 7003458 - CLAMP
  • HOSE

20 6684947

  • 6684947 - GROMMET

21 7011110

  • 7011110 - BUSHING

22 7011109

  • 7011109 - FOAM
  • if equipped

23 7018001

  • 7018001 - VALVE
  • DRAIN

24 7011108

  • 7011108 - INSULATION
  • HEATER
  • if equipped

25 7011107

  • 7011107 - INSULATION
  • HEATER
  • if equipped

26 7011106

  • 7011106 - INSULATION
  • HEATER
  • if equipped

27 7011105

  • 7011105 - INSULATION
  • HEATER
  • if equipped

28 7011104

  • 7011104 - INSULATION
  • HEATER
  • 3
  • 175 mm (.125") thick - if equipped

29 7025605

  • 7025605 - INSULATION
  • HEATER
  • 6
  • 35 mm (.25") thick - if equipped

30 7011103

  • 7011103 - INSULATION
  • HEATER
  • if equipped

31 6677555

  • 6677555 - RECEPTACLE

32 7011102

  • 7011102 - BOLT

33 6693223

  • 6693223 - WASHER

34 6679675

  • 6679675 - NUT

35 6677119

  • 6677119 - SCREW

36 7011101

  • 7011101 - WASHER

37 7011100

  • 7011100 - NUT

38 6676539

  • 6676539 - CLIP PANEL

39 6691532

  • 6691532 - SCREW
  • Was 6677118

40 7011099

  • 7011099 - STUD

41 6691532

  • 6691532 - SCREW
  • Was 7011098

42 7018002

  • 7018002 - CONNECTOR

43 6696953

  • 6696953 - FOAM

44 7011096

  • 7011096 - FOAM

45 6693236

  • 6693236 - FOAM

46 7011131

  • 7011131 - BLOWER
  • HEATER AND A/C

47 7023573

  • 7023573 - RESISTOR

48 6565977

  • 6565977 - HOSE HEATER BULK
  • sold per foot - Was 7003457

49 7003460

  • 7003460 - SEAL
  • FOAM
  • bulk - sold per foot

50 7003459

  • 7003459 - GROMMET

51 7003511

  • 7003511 - PLUG

52 6693234

  • 6693234 - FOAM

53 7018003

  • 7018003 - SEAL
  • FOAM
