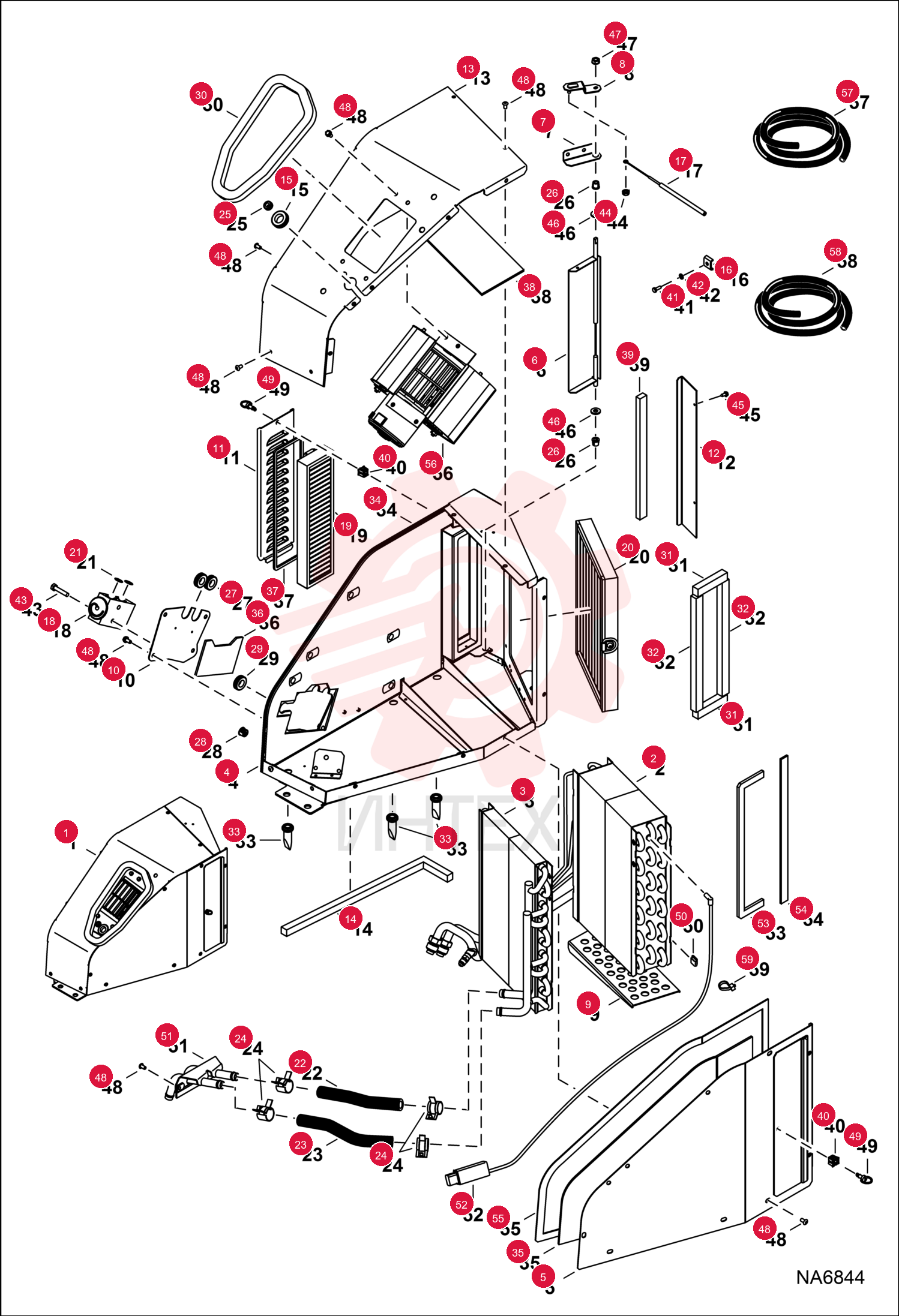

HVAC ASSEMBLY 7025145

HVAC ASSEMBLY 7025145

HVAC ASSEMBLY 7025145

1 7025145

  • 7025145 - HVAC ASSEMBLY
  • Ref. 2-59

2 7025603

  • 7025603 - COIL
  • EVAPORATOR

3 7011125

  • 7011125 - COIL
  • HEATER

4 7017997

  • 7017997 - HOUSING
  • BASE

5 7018000

  • 7018000 - COVER
  • ASSY

6 7011122

  • 7011122 - DOOR
  • CONTROL AIR

7 7011121

  • 7011121 - BRACKET

8 7011120

  • 7011120 - LEVER

9 7011119

  • 7011119 - PLATE
  • SUPPORT

10 7017996

  • 7017996 - BRACKET
  • VALVE

11 7011118

  • 7011118 - LOUVER

12 7011117

  • 7011117 - PLATE

13 7017998

  • 7017998 - COVER

14 7025604

  • 7025604 - HARNESS
  • HVAC
  • harness not shown - grommet included

15 7011112

  • 7011112 - CLAMP
  • CABLE

16 7011111

  • 7011111 - CABLE
  • A/C

17 6675534

  • 6675534 - BLOCK
  • VALVE A/C

18 7010331

  • 7010331 - FRESH AIR FILTER

19 7010332

  • 7010332 - FILTER RECIRCULATION

20 7009977

  • 7009977 - O-RING
  • #8

21 7003458

  • 7003458 - CLAMP
  • HOSE

22 6684947

  • 6684947 - GROMMET

23 7011110

  • 7011110 - BUSHING

24 7003459

  • 7003459 - GROMMET

25 7003511

  • 7003511 - PLUG

26 7003459

  • 7003459 - GROMMET

27 7018001

  • 7018001 - VALVE
  • DRAIN

28 7011108

  • 7011108 - INSULATION
  • HEATER

29 7011107

  • 7011107 - INSULATION
  • HEATER

30 7011106

  • 7011106 - INSULATION
  • HEATER

31 7018003

  • 7018003 - SEAL
  • FOAM

32 7025605

  • 7025605 - INSULATION
  • HEATER

33 6693234

  • 6693234 - FOAM

34 6677555

  • 6677555 - RECEPTACLE

35 7011102

  • 7011102 - BOLT

36 6693223

  • 6693223 - WASHER

37 6691534

  • 6691534 - SCREW

38 6679675

  • 6679675 - NUT

39 6677119

  • 6677119 - SCREW

40 7011101

  • 7011101 - WASHER

41 7011100

  • 7011100 - NUT

42 6691532

  • 6691532 - SCREW

43 7011099

  • 7011099 - STUD

44 6676539

  • 6676539 - CLIP PANEL

45 7018002

  • 7018002 - CONNECTOR

46 6696953

  • 6696953 - FOAM

47 7011096

  • 7011096 - FOAM

48 6693236

  • 6693236 - FOAM

49 7011131

  • 7011131 - BLOWER
  • HEATER AND A/C

50 7023573

  • 7023573 - RESISTOR

51 6565977

  • 6565977 - HOSE HEATER BULK
  • sold per foot

52 7003460

  • 7003460 - SEAL
  • FOAM
  • bulk - sold per foot

53 6684948

  • 6684948 - STRAP TIE
